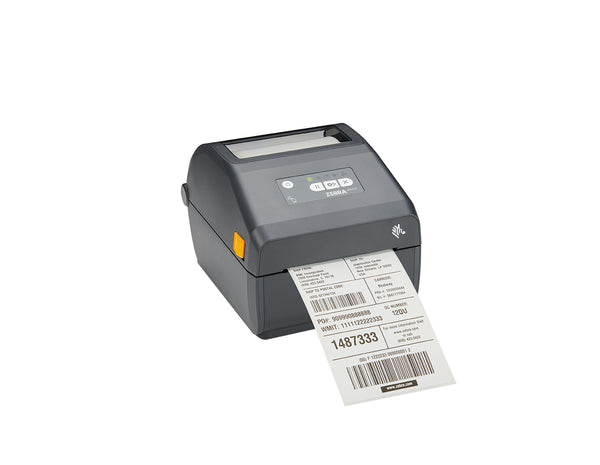

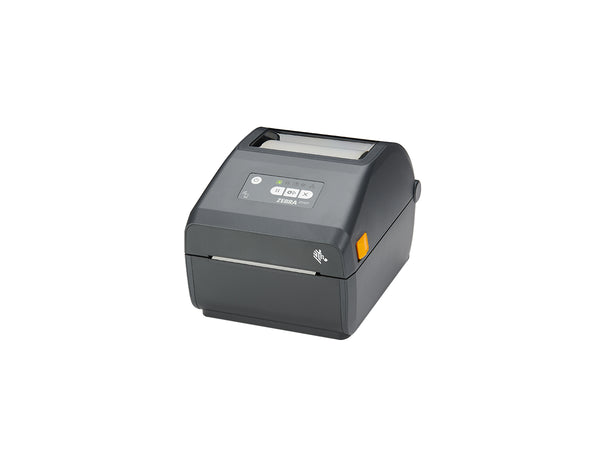

ZEBRA ZD4A042-D01M00EZ PRINTER (ZD421D)

Accessories

Accessories
Media Handling	Dispenser/Peeler: label peel and present with label present sensor (field installable) Cutter (field installable)
Battery	Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options
Carrying Case	Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application
Keyboard Display Unit	Zebra Keyboard Display Unit (ZKDU) unit for standalone printing solutions
Real Time Clock	Real time clock included as standard on network connected models
Enclosed Power Supply	Attached power supply accessory for cord-free installation
Mounting Plate	Secure ZD Series printers to countertops or shelves

Specifications

Specifications	ZD421
Memory	512 MB Flash; 256MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	6 in./152 mm per second (203 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Label Length	Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.4 mm
Media Width	0.585 in./15 mm to 4.25 in./108 mm
Media Roll Size	Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Media Thickness	0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max.
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
Barcode Symbologies
Barcode Ratios	2:1 and 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	?
Firmware	ZPL II; EPL 2; XML; ZBI; PDF Direct
Operating Temperature	40º to 105ºF (4.4º to 41ºC)
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	10% to 90% non-condensing R.H.
Storage Humidity	5% to 95% non-condensing R.H.
Regulatory	IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000- 3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Environment	RoHS Directive 2011/65/EU; Amendment 2015/863

Properties

Properties	Zebra ZD421 ZD4A042-D01000EZ
Description	Desktop Printer, Direct thermal, 203 dpi, 6 ips, USB/USB Host/Bluetooth/Modular Connectivity Slot, ZPL/EPL/EZPL, Icon User Interface, 4-inch, Standard Tear, US Cord
Product Family	ZD Series
Product Type	Label Printer
Standard Features	Print methods: Direct Thermal ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only Real Time Clock (RTC) OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR® certified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner PDF Direct Two-year standard warranty
Communications	Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 autosensing, DB-9 Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio)
Printing	Direct thermal printing
Resolution	203 dpi/8 dots per mm
Dimensions (W x H x D)	6.98 x 5.93 x 8.69 in. (177.5 mm x 150.7 mm x 220.8 mm)
Weight	2.98 lbs./1.35 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
