ZEBRA ZD22042-T01G00EZ PRINTER (ZD220T)

Model: ZD22042-T01G00EZ
Detail:
  • ZD220, Thermal transfer, Monochrome, 4.25-inch roll, 203 dpi, USB serial interface
List Price: US$617.00
Price:
$235.00
You Save: $382.00 (62% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

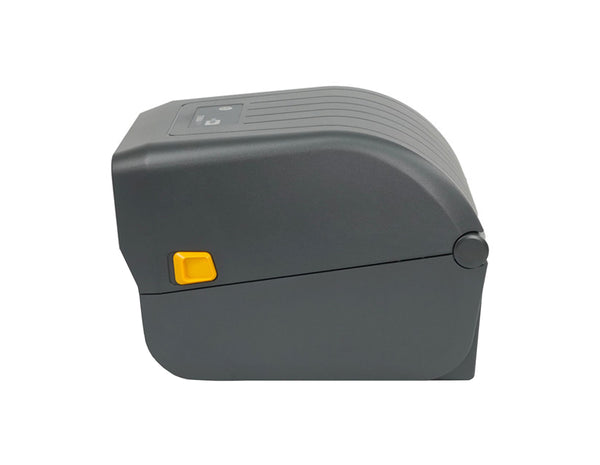

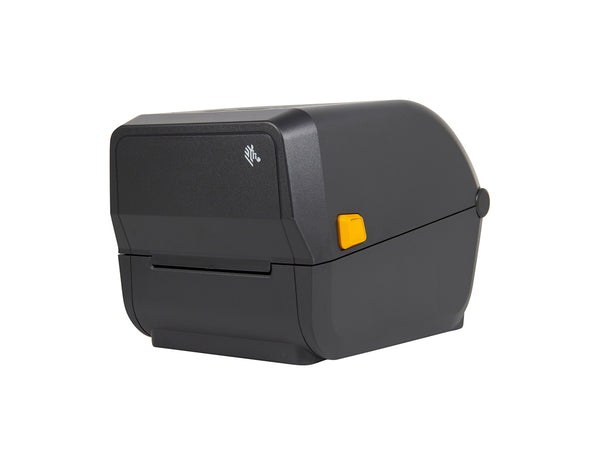

Zebra ZD22042-T01G00EZ Printer (ZD220t)

The ZD22042-T01G00EZ is a thermal transfer printer model from the ZD220 printer family. It can be used to print a variety of tickets, tags, labels, and receipts. It is suitable for sectors such as transportation and logistics, healthcare, retail, and manufacturing. The ZD22042-T01G00EZ desktop printer gives you the reliability and interoperability you’re looking for.

Quick Specs:

  • 4 ips print speed
  • 203 dpi print resolution
  • USB 2.0 connectivity
  • Energy Star rated

You can see the ZD22042-T01G00EZ datasheet and detailed specifications from the related tabs.

Specifications

Specifications ZD220
Memory 128 MB Flash; 128 MB SDRAM
Maximum Print Width 4.09 in./104 mm
Maximum Print Length 39.0(991 mm)
Maximum Print Speed 4 in./102 mm per second
Media Sensors Movable black mark sensor, limited range from
center to left side
Fixed off-center gap sensor
Maximum Label Length 39.0 in./991 mm
Maximum Label and Media Width 1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or
without black mark, tag stock, continuous receipt
paper, and wristbands
Ribbon Outside Diameter 1.34 in./ 34 mm (74 m)
Maximum Ribbon Length 244 ft. (74 m)
Ribbon Ratio 1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core I.D. 74 Meter ribbon 0.5 in./ 12.7 mm
Media Handling Factory installed peeler
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on demand
thermal printing
50 MB user available non-volatile memory,
8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios 2:1 and 3:1
Linear Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128,
UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or
5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars,
MSI, Codabar and Planet Code
2-Dimensional Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software Zebra Print DNA software, powered by LinkOS. For a full list of applications, utilities and developer tools, visit www.zebra.com/printdna
Set-Get-Do commands to set and get printer configuration details
ZPL II Universal language for Zebra printers.
Simplifies label formatting and enables format
compatibility with existing systems that run Zebra printers
EPL2 Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications
Firmware EPL2 Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications
ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers
Web View Connect and control Zebra barcode
printers via the printers Web interface using a common Web browser (ZPL mode)
Operating Temperature 40º to 105ºF (4.4º to 41ºC)
Storage Temperature -40º to 140ºF (-40º to 60ºC)
Operating Humidity 10% to 90% non-condensing R.H.
Storage Humidity 5% to 95% non-condensing R.H.
Regulatory IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Properties

Properties Zebra ZD220 ZD22042-T01G000EZ
Description ZD220, Thermal transfer, monochrome, 4.25-inch roll, 203 dpi, USB serial interface
Product Family ZD Series
Product Type Label Printer
Standard Features Thermal Transfer or Direct Thermal print method
ZPL and EPL programming languages
Single LED status indicator
Single button for feed/pause
USB connectivity
OpenACCESS for easy media loading
Dual-wall frame construction
ENERGY STAR qualified
ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner
Two-year standard warranty
Communication and Interface Capabilities USB:
Version 2.0 full speed, bi-directional
Supported in Win98 and Win98SE, Win Me and Windows 2000 platforms
Connector Type B Female
Printing Thermal Transfer print method
Resolution 203 dpi/8 dots per mm
Dimensions (W x H x D) 7.75 x 7.5 x 10.5 in. (197 mm x 191 mm x 267 mm)
Weight 2.5 lbs./1.1 kg
Power Auto-detectable (PFC Compliant) 100-240VAC,
50-60Hz, 24 VDC, 3.125A output; ENERGY STAR qualified
