Model: | ZD4A042-301E00EZ |
Detail: |
|
List Price: | |
Price: | $345.00 |
You Save: | $683.32 (66% OFF) |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

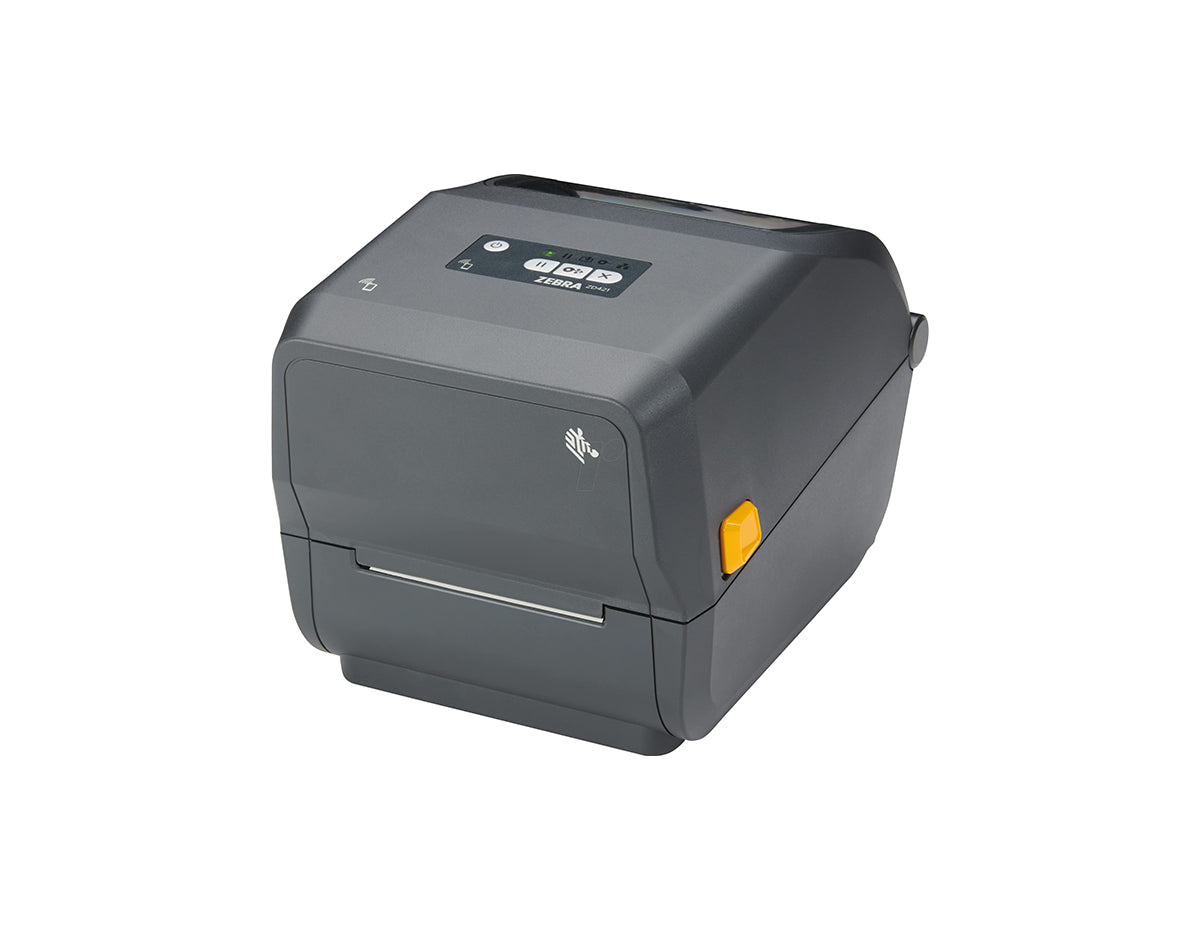

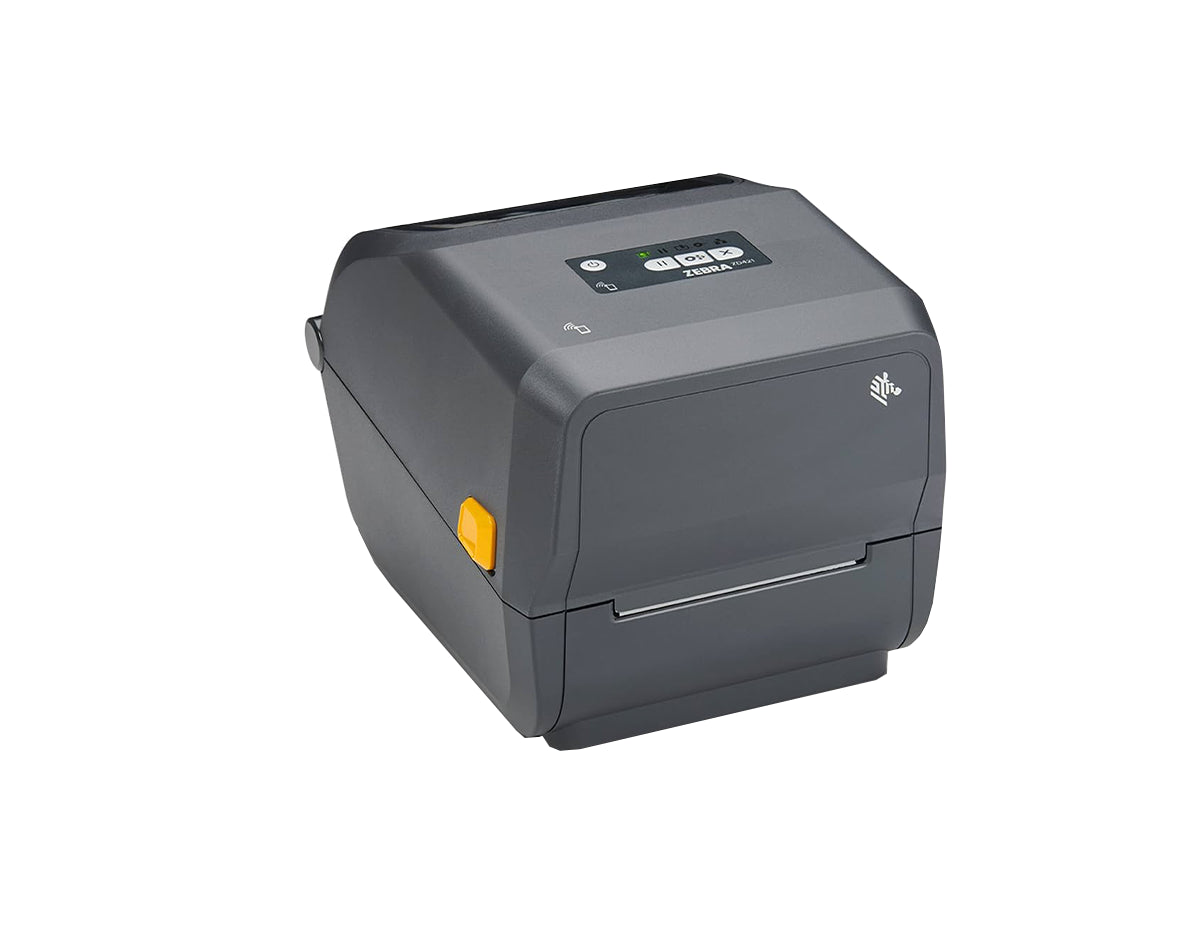

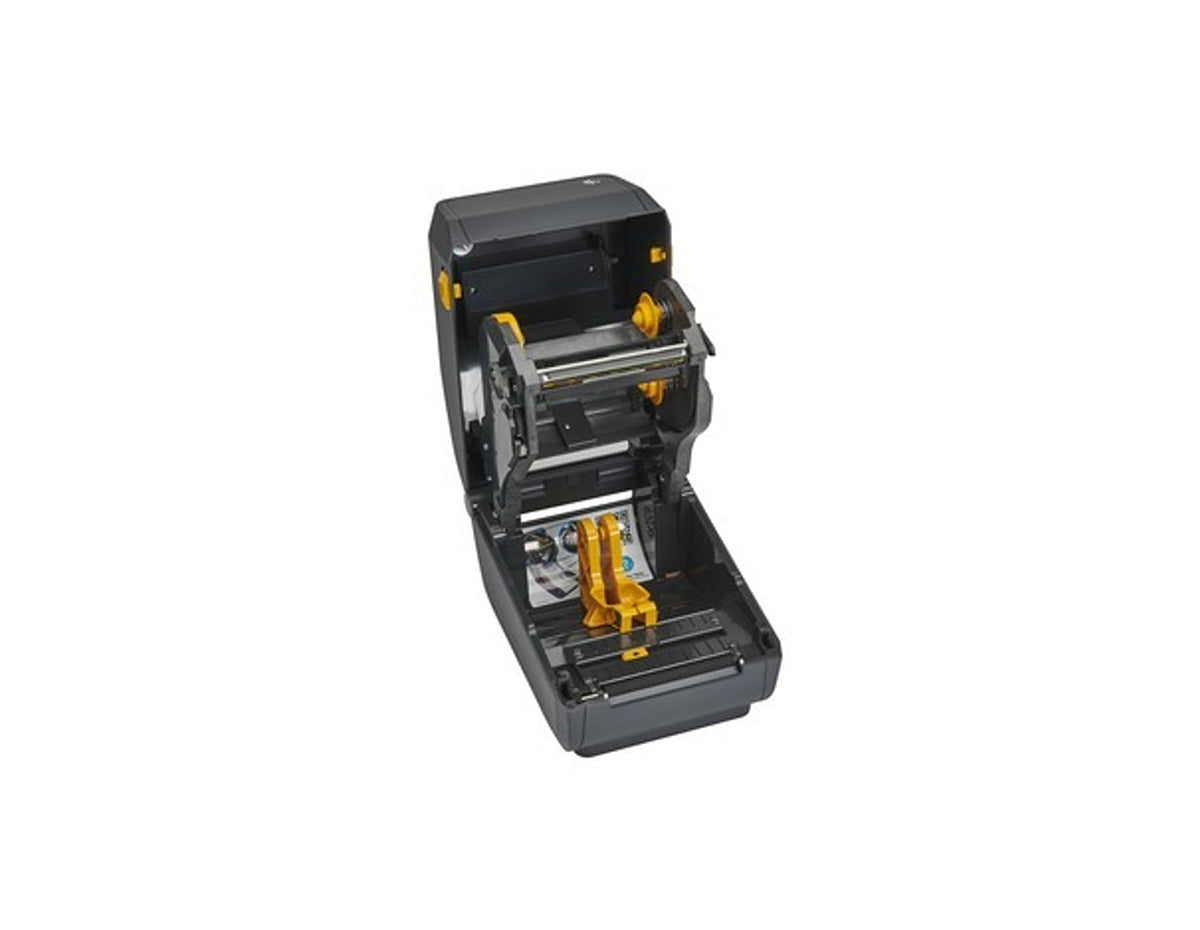

The ZD4A042-301E00EZ is a thermal transfer printer from the ZD421 desktop printer family which has all the key features that you need. This series has a newer, more intuitive user interface. You can print labels, tags and receipts with the high performance. The ZD4A042-301E00EZ has Ethernet, Bluetooth and USB connection options.
You can see the ZD4A042-301E00EZ datasheet and detailed specifications from the related tabs.
Accessories | |
Media Handling | Dispenser/Peeler: label peel and present with label present sensor (field installable) Cutter (field installable) |
Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options |
Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) unit for standalone printing solutions |
Real Time Clock | Real time clock included as standard on network connected models |
Enclosed Power Supply | Attached power supply accessory for cord-free installation |
Mounting Plate | Secure ZD Series printers to countertops or shelves |
Specifications | ZD421 |
Memory | 512 MB Flash; 256MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM |
Maximum Print Width | Roll: 0.585 in./15 mm to 4.41 in./112 mm Cartridge: 4.09 in./104 mm |
Maximum Print Speed | 6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi) |
Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
Label Length | Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.4 mm |
Media Width | 0.585 in./15 mm to 4.25 in./108 mm |
Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. |
Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
Ribbon Standard Length | Roll: 984 ft. (300 m); 243 ft. (74 m) Cartridge: 243 ft. (74 m) |
Ribbon Ratio | 1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m) |
Ribbon Width | Roll: 1.33 in./33.8 mm 4.3 in./109.2 mm Cartridge: 4.3 in./109.2 mm |
Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm |
Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
Barcode Symbologies | |
Barcode Ratios | 2:1 and 3:1 |
Linear Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
2-Dimensional | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
Software | ? |
Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Operating Temperature | 40º to 105ºF (4.4º to 41ºC) |
Storage Temperature | -40º to 140ºF (-40º to 60ºC) |
Operating Humidity | 10% to 90% non-condensing R.H. |
Storage Humidity | 5% to 95% non-condensing R.H. |
Regulatory | IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000- 3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
Environment | RoHS Directive 2011/65/EU; Amendment 2015/863 |
Properties | Zebra ZD421 ZD4A042-301E00EZ |
Description | Desktop Printer, Zebra ZD421, Thermal transfer, 203 dpi, 4 ips, USB/USB Host/Ethernet/Bluetooth, ZPL/EPL/EZPL, 4-inch, Standard Tear, US Cord |
Product Family | ZD Series |
Product Type | Label Printer |
Standard Features | Print methods: Thermal transfer ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only Real Time Clock (RTC) OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR® certified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner PDF Direct Two-year standard warranty |
Communications | Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 autosensing, DB-9 Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio) |
Printing | Thermal transfer printing |
Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm |
Dimensions (W x H x D) | 6.98 x 5.93 x 8.69 in. (177.5 mm x 150.7 mm x 220.8 mm) |
Weight | 2.98 lbs./1.35 kg |
Power | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
