[shortdesc]

Video conferencing kit

[/shortdesc]

[properties]

Properties	CS-KIT-K9
Description	Cisco Webex Room Kit Upfront pricing (GPL)
Product Family	Cisco Webex Room Series
Product Type	Video Conferencing Kit
Manufacturer	Cisco
Webex Room Kit features and benefits
Smart meetings	Brings intelligent views to smaller rooms with a discreet, integrated camera - Best overview: Automatically detects meeting participants and provides ideal framing - Speaker tracking: Detects and switches between active speakers and provides ideal framing • Great audio experience with integrated microphones and speakers; supports room elegance with no wires or microphones on the table • Automatic noise suppression reduces disruptive sounds coming from the meeting room (e.g., typing, paper rustling) • Simplified meeting-join experience with One Button to Push (OBTP) for scheduled devices in a Webex meeting, whether registered on-prem or to the Webex cloud service • Automatic wake-up: System “wakes up” when someone walks into the room, and recognizes them through their mobile device • Easily controlled by the Webex Room Navigator control unit or with a Webex app • End-to-end security
Smart presentations	• Supports dual screens for video and content • Supports dual content sources for local meetings • View whiteboard content and annotations shared from Webex Board, Webex Desk Pro, or the • Webex app; participate in whiteboarding sessions through the Webex app (Supported on Webex-registered devices only) • 4K content sharing (local 30 fps; remote 5 fps) • Wired or wireless content sharing (only two wires required—power and HDMI)
Smart rooms	• Metrics: Counts people in the room, enabling analytics for better resource planning • Automatic screen/display integration through HDMI CEC • Supports Wi-Fi • In-room control: Control peripherals such as lights and blinds through the Webex Room Navigator
Built for cloud and premises	• Flexibility to register on the premises or to the cloud through Webex • Hardware is optimized to run on a cloud platform, for great experiences in shared rooms and spaces with easy access to hosted conferences

[/properties] [specifications]

Specifications	CS-KIT-K9
Software compatibility	Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Webex Room OS
Optional hardware components	• Cisco Table Microphone • Microphone extension cable • HDMI second monitor cable 1.5 m/4.9 ft. • HDMI presentation cable 8 m/26.2 ft.
Bandwidth	• Up to 6 Mbps point-to-point
Minimum bandwidth for resolution/ frame rate	• H.264: • 720p30 from 768 kbps • 720p60 from 1152 kbps • 1080p30 from 1472 kbps • 1080p60 from 2560 kbpsw
Firewall traversal	• Cisco Expressway™ technology • H.460.18, H.460.19 firewall traversal
Video standards	• H.264, H.265
Video inputs	• One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 • Consumer Electronics Control (CEC) 2.0
Video outputs	• Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) • Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) • Consumer Electronics Control (CEC) 2.0
Audio standards	• High-quality 20 kHz audio • Prepared for subwoofer (line out) • Prepared for inductive loop (line out) • Automatic Gain Control (AGC) • Automatic noise reduction • Active lip synchronization
Audio inputs	• Two microphones, 4-pin mini-jack • One audio in from HDMI • Internal microphone • Bluetooth - Not available on Non Radio Version (The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners)
Audio outputs (external)	1 line out mini-jack (stereo) • Bluetooth - Not available on Non Radio Version (The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners)
Speakers (integrated)	• High-quality speakers: five speakers in balanced configuration • Frequency response 70 Hz to 20 kHz • Amplifier power: 24W • Max output level SPL 86 dB
Speaker tracking	• 6-element microphone array for accurate speaker tracking
Dual stream	• H.239 (H.323) dual stream • Binary Floor Control Protocol (BFCP) (SIP) dual stream • Supports resolutions up to 3840 x 2160p5
Wireless sharing	• Webex app appt (up to 3840 x 2160p5) • Cisco Intelligent Proximity client (up to 1920 x 1080p5) • Miracast (1080p30) – Not available on Non radio version ((The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners))
Multipoint support	4-way embedded SIP/H.323 conferencing capability with MultiSite option
MultiSite features (embedded multipoint) (optional upgrade)
Protocols	• H.323 • SIP • Cisco Webex
Embedded encryption	• H.323 and SIP point-to-point • Standards-based: H.235 v3 and Advanced Encryption Standard (AES) • Automatic key generation and exchange
IP network features	• DNS lookup for service configuration • Differentiated services (Quality of Service [QoS]) • IP-adaptive bandwidth management (including flow control) • Automatic gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 • RFC 4733 DTMF tones in SIP • Date and time support using Network Time Protocol (NTP) • Media adaptation and resilience • Uniform Resource Identifier (URI) dialing • Dynamic Host Configuration Protocol (DHCP) • 802.1X network authentication • 802.1Q Virtual LAN • 802.1p (QoS and Class of Service [CoS])
Call Control	• Cisco Unified Communications Manager (CUCM) - Native registration with CUCM - Requires CUCM Version 10.5.2 or later with device pack for Room Kit • Cisco Expressway - Native registration with Expressway • Cisco Webex Service • Third-party H.323 Gatekeepers and standards-based SIP proxies
IPv6 network support	• Single call stack support for both H.323 and SIP • Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ • Support for both static and automatic IP configuration (stateless address auto configuration)
Security features	• Management using HTTPS and SSH • IP administration password • Menu administration password • Disable IP services • Network settings protection
Certificate management	• Certificate Authority Proxy Function (CAPF) support for additional security • Manufacturer-Installed Certificates (MIC) • Locally Significant Certificates (LSC) • X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network interfaces	• One Ethernet (RJ-45) 10/100/1000 for LAN • One Ethernet (RJ-45) for Webex Room Navigator touch panel direct pairing • Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, - not available in non-radio versions • 2x2 MIMO Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz—5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
Other interfaces	• USB 2.0 port, micro USB port, factory reset pinhole
Power	• 100 to 240 VAC, 50/60 Hz, 12V DC input • Average 20W, peak 70W
Operating temperature and humidity	• 0°C to 40°C (32°F to 104°F) ambient temperature • 10% to 90% Relative Humidity (RH)
Storage and transport temperature	• -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)
Locking mechanism	• Kensington security lock
Dimensions	• Width: 27.5 in. (70.0 cm) • Height: 3.5 in. (10.6 cm) • Depth: 2.9 in. (8.8 cm) • Weight: 7 lb. (3.2 kg)
Camera overview	• 5K UltraHD camera • Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled) • 15.1 MP image sensor (5184 x 2916 pixels) • 1/1.7 CMOS • 3x zoom • f/2.0 aperture • 83° horizontal field of view; 51.5° vertical field of view • Auto framing (audio + face detect) • Auto focus, brightness, and white balance • Focus distance 1 m to infinity

[/specifications] [accesories] [/accesories]

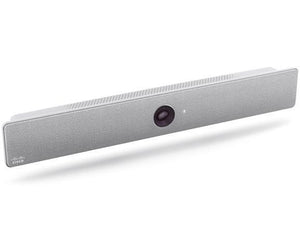

Cisco Webex CS-KIT-K9 Video Conferencing Kit

The Webex Room Kit from Cisco is an all-in-one collaboration tool for small to medium-sized meeting rooms, integrating a camera, codec, speakers, and microphones. It features intelligent camera views with speaker tracking, high-quality audio with noise suppression, and easy meeting access with One Button to Push (OBTP). Additionally, it offers smart room features such as people count analytics, automatic screen integration, and peripheral control, enhancing meeting efficiency and productivity.

Key Features:

up to 7 people
4K content sharing
Webex cloud

The tabs contain the Cisco Webex Room Kit datasheet with all the specifics you need.
