Cisco IE-4000-16GT4G-E Switch

Name: Cisco IE-4000-16GT4G-E Switch
Brand: Cisco
SKU: IE-4000-16GT4G-E-NEW
Price: 2795.0 USD
Availability: InStock

Part Number: IE-4000-16GT4G-E

Technical Details

Switch Managed 16 x 10/100/1000 + 4 x combo Gigabit SFP DIN Rail Mountable DC power

$10,873.50

$2,795.00

74% OFF

You Save: $8,078.50

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

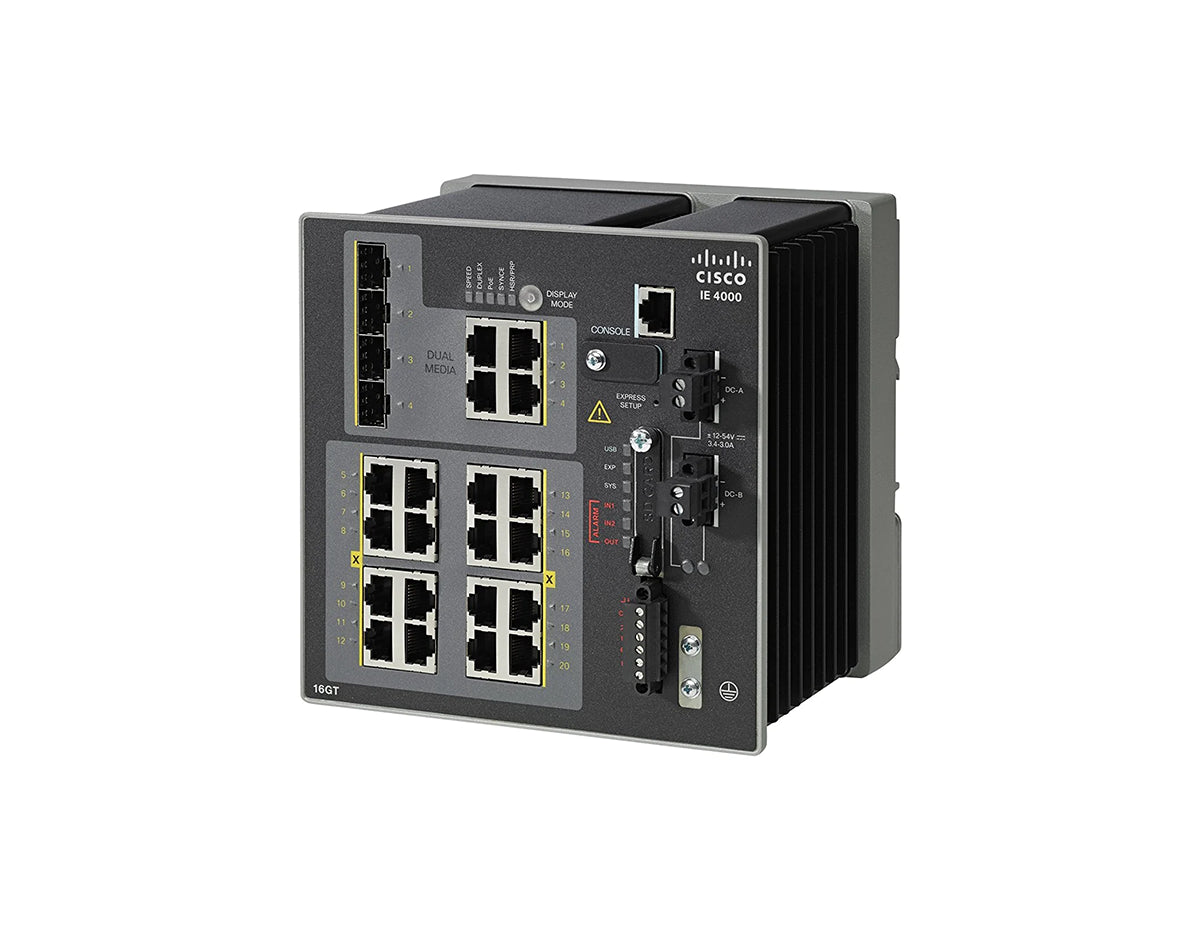

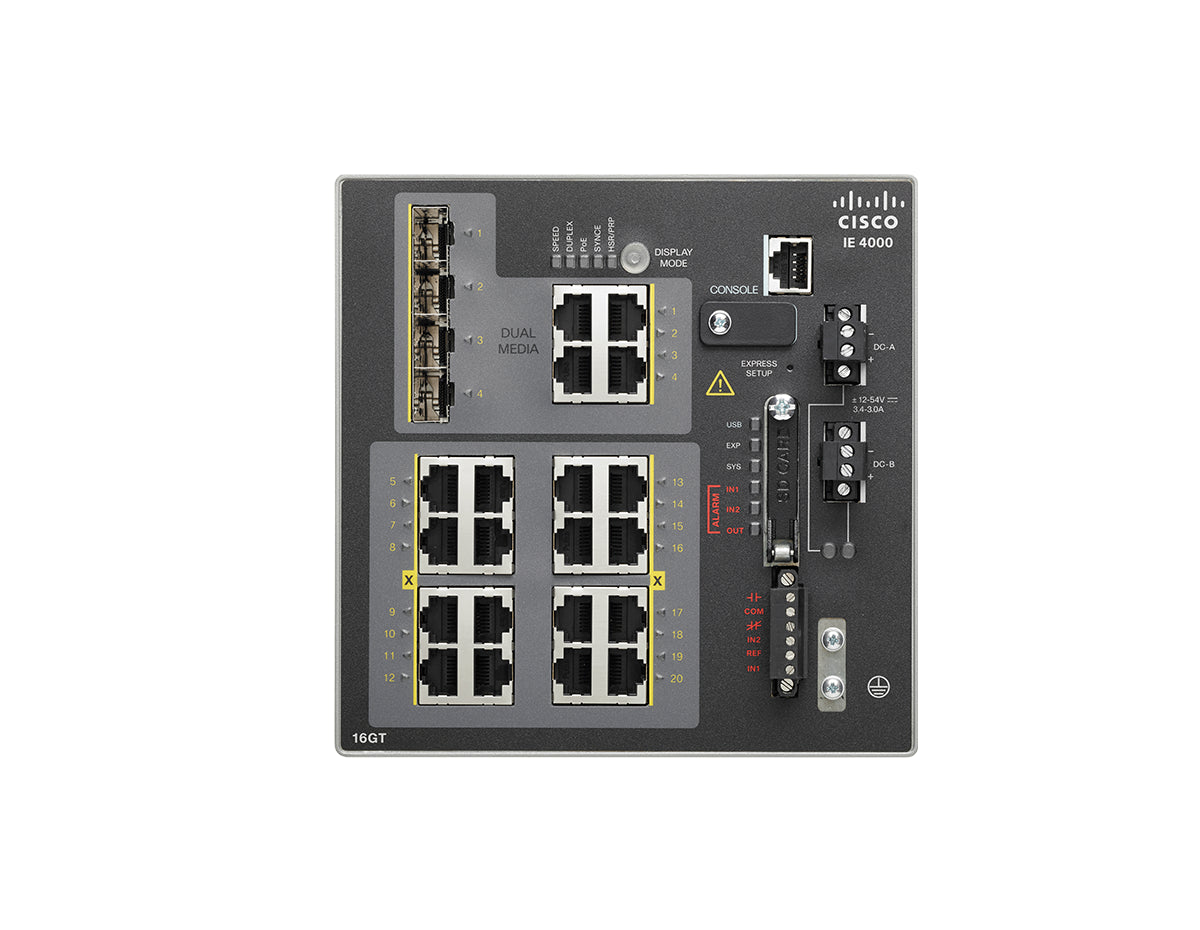

Cisco IE-4000-16GT4G-E Industrial Ethernet Switch

The Cisco IE-4000-16GT4G-E is a robust industrial Ethernet switch designed to provide reliable and high-speed network connectivity in harsh environments. This switch features 16 Gigabit Ethernet ports and 4 Gigabit SFP uplinks, making it an ideal solution for connecting essential industrial devices such as IP cameras, sensors, and controllers. The IE-4000-16GT4G-E is built to withstand extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management capabilities for effective network segmentation, security, and traffic control.

Key Features:

16 x Gigabit Ethernet Ports: Delivers high-speed data connectivity for a wide range of industrial devices, ensuring stable and reliable network performance.
4 x Gigabit SFP Uplinks: Provides flexible uplink options with fiber connectivity, supporting network scalability and high-speed data transfer.
Ruggedized Design: Engineered to operate in extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Compact Form Factor: Designed for space-constrained installations, making it suitable for deployment in industrial enclosures and cabinets.

Technical Overview:

Recommended for: Harsh industrial environments requiring reliable Ethernet connectivity with advanced management and high availability.
Ports: 16 x Gigabit Ethernet ports, 4 x Gigabit SFP uplinks.
Operating Temperature: Built to perform in a wide temperature range, suitable for extreme industrial conditions.
Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network monitoring and setup.
Form Factor: Rugged, compact design ideal for space-constrained industrial environments.

You can check the related tab for the Cisco IE-4000-16GT4G-E datasheet.

Properties

Properties	Cisco IE-4000-16GT4G-E
Description	IE4000 switch with 16 GE Copper and 4 GE combo uplink ports
Product Family	Industrial Ethernet 4000
Product Type	Ethernet Switch
Switches
Total Ports	20
GE combo (SFP or RJ45) uplinks (4G)	All models have 4 GE combo uplink ports
Additional combo (SFP or RJ45) ports	-
RJ45 copper ports (T)	16 GE
SFP fiber ports (S)	-
PoE/PoE+ ports (P, GP), Maximum PoE power budget	-
Default software License	All models ship with LAN Base feature set
Software Features
LAN Base License (Default)	Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, Resilient Ethernet Protocol (REP), VTPv3, EtherChannel, Voice VLAN, QinQ tunneling, Industrial macro configuration
Layer 2 multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Managament	Fast Boot, Express setup, Web Device Manager, Industrial Network Director (IND), MIB, Smartport, SNMP, syslog, storm control, unicast, multicast, broadcast, SPAN sessions, RSPAN, DHCP server, customized DOM (digital optical management), Embedded Event Manager (EEM), Plug-n-Play Agent, Port-based DHCP
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, FIPS 140-2, ACT2, Secure boot, Full flexible Netflow
Quality of Service (QoS)	Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, QoS, PROFINET QoS
Layer 2 IPv6	IPv6 Host support, HTTP over IPv6, SNMP over IPv6
Layer 3 Routing	IPv4 Static Routing
Utility	Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag)
Industrial Ethernet	CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync
Redundancy	Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox)
Industrial Management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
Dimensions (HxWxD) Inches	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)

Specifications

Specifications	IE-4000-16GT4G-E
DRAM	1 GB
Flash Memory	128 MB
Hardware
PoE power budget	Not applicable
Removable storage	1-GB removable SD flash memory card (Included) Mini-USB connector
Alarms	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Console ports	RJ-45 connector
Power inputs	Dual DC power inputs
Number of Queues	4 egress
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC addresses	16,000
Jumbo Frames	8996 bytes
No. of VLANs	1,000
Internet Group Managament Protocol (IGMP) Multicast Groups	1000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
Input Voltage Range	Redundant DC input voltage: nominal 9.6 to 60VDC
Maximum Input Current	4.3A
Power Consumption	40W
Operating Temperature	Operating Temperature: -40C to +75C -40C to +70C (Vented Enclosure Operating) -40C to +60C (Sealed Enclosure Operating) -34C to +75C (Fan or Blower equipped Enclosure Operating) EN 60068-2-1 EN 60068-2-2 EN 61163
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	558, 630 Hours
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 Class A EN 55022A Class A EN 300 386 VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 22 Class A ICES 003 Class A CNS13438 Class A KN22
Electromagnetic immunity	EN55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips
Industry standards	EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers Substation KEMA (IEEE 1613, IEC 61850-3) Marine DNV GL (Ships; High speed and light craft)* NEMA TS-2 (EMC, environmental, mechanical) IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Electric Substations Communications Networking EN50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech) EN50121-4 Railway - Signaling and Telecommunications Apparatus EN50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IP PROFINET conformance B IP30 (per EN60529)
Safety standards and certifications	Information Technology Equipment: UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial Floor (Control Equipment): UL 508 CSA C22.2, No 142 Hazardous Locations: ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) Cabinet enclosure required
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-3 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)
Corrosion	ISO 9223: Corrosion class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas)

Accessories

Accessories and License Upgrade PIDs
SD-IE-1GB	IE 1GB SD Memory Card - Spare
STK-RACK-DINRAIL	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features or MRP protocols)
L-IE4000-RTU=	IE4000 Electronic software license upgrade from LAN base L2 to IP Services L3 features
LIC-MRP-MANAGER	MRP Ring Manager license
LIC-MRP-Client	MRP Ring Client license
Cisco ONE„ Licenses
C1F1PIE4K5K1K9	Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base
C1F1PIE40001K9	Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engineer - Base
C1A1PIE40001K9	Cisco ONE Advanced Perpetual Includes IP Services
C1-FLOW-IE4K	Cisco ONE Netflow IE4000
C1A1AIE40001K9	Cisco ONE Advanced Perpetual - IE 4000
C1F1AIE40001K9	Cisco ONE Foundation Perpetual - IE 4000, BROWNFIELD
C1F1AIE4K5K1K9	Cisco ONE Foundation Lite Perpetual - IE 4000/5000
C1F1PIE40001K9	Cisco ONE Foundation Perpetual - IE 4000
Cisco IE 4000 DNA licenses
IE4000-DNA-E-M	Cisco DNA Essentials license (up to 24 ports)
IE4000-DNA-E-M-3Y	Cisco DNA Essentials 3 year term license (up to 24 ports) option
IE4000-DNA-E-M-5Y	Cisco DNA Essentials 5 year term license (up to 24 ports) option
IE4000-DNA-A-M	Cisco DNA Advantage license (up to 24 ports)
IE4000-DNA-A-M-3Y	Cisco DNA Advantage 3 year term license (up to 24 ports) option
IE4000-DNA-A-M-5Y	Cisco DNA Advantage 5 year term license (up to 24 ports) option
IE4000-DNA-E-M-7Y	Cisco DNA Essentials 7 year term license (up to 24 ports) option
IE4000-DNA-A-M-7Y	Cisco DNA Advantage 7 year term license (up to 24 ports) option
IE 4000 Series Power Supplies
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W PC-AC Power Supply
PWR-IE65W-PC-DC=	65W PC-DC Power Supply
PWR-IE170W-PC- AC=	170W PC-AC Power Supply
PWR-IE170W-PC- DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM
CWDM-SFP-xxxx= (8 freq)	Longwave xxxx-nm laser, single mode
DWDM-SFP-xxxx= (40 freq)	1000BASE-DWDM SFP
SFP-GE-S=	Cisco SFP-GE-S Duplex SFP 1Gbps 500m MMF DDM 850nm
SFP-GE-L=	1000BASE-LX/LH SFP (DOM)
SFP-GE-Z=	Cisco 1000BASE-ZX SFP transceiver module for SMF
GLC-SX-MM=	Cisco GLCSXMM SFP, Duplex, 1Gbps, 500m, 7.5dB, MMF, 850nm
GLC-LH-SM=	Cisco Glc Lh Sm 1000Base Lh Sm Sfp Transceiver Module
GLC-ZX-SM=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range.
GLC-TE=	1000BASE-T standard
GLC-T-RGD=	1000BASE-T standard
