Cisco Catalyst 2960-L Series Switches

Cisco Catalyst 2960-L Series Switches

Cisco Catalyst 2960-L Series Switches are fixed and smart-managed Gigabit Ethernet switches that provide enterprise-class access switching. They are especially useful for:

     - Branch offices

     - Out-of-the-wiring-closet applications

     - Critical Internet of Things (IoT) deployments

     - Small and medium-sized businesses

They operate on Cisco IOS Software and support simple device management and network management via Command Line Interface (CLI) as well as an on-box web interface.

Cisco Catalyst 2960-L Series Switches

Show on page:
  • Cisco WS-C2960L-24TQ-LL Switch - Network Devices Inc.
    Save $2,986.52

    CISCO WS-C2960L-24TQ-LL SWITCH

    CISCO WS-C2960L-24TQ-LL SWITCH

    $1,342.48
    $4,329.00
    • Switch
    • Managed
    • 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
    • Desktop
    • Rack-mountable

    RJ45 Ethernet  1
    USB mini-B 1
    USB-A port for storage and Bluetooth console 1
    CPU ARMv7 800 MHz
    DRAM 512 MB
    Flash memory 256 MB
    Forwarding bandwidth 64 Gbps
    Switching bandwidth 128 Gbps
    Forwarding rate (64-byte L3 packets) 41.67 Mpps
    Unicast MAC addresses 8K
    Maximum active VLANs 64
    VLAN IDs available 4094
    Maximum STP instances 64
    Maximum SPAN sessions 1
    MTU-L3 packet 9198 bytes
    Jumbo Ethernet frame 10,240 bytes
    MTBF in hours (Data) 2,412,947
    MTBF in hours (PoE) 909,838
    Up to 5,000 ft 23F to 113F (-5C to 45C)
    Up to 10,000 ft 23F to 104F (-5C to 40C)
    Operating altitude 10,000 ft (3000m)
    Operating relative humidity 5% to 90% at 40C
    Storage temperature -13 to 158F (-25 to 70C)
    Storage altitude 15,000 ft (4500m)
    Storage relative humidity 5% to 95% at 65C
    Storage altitude Minimum ambient temperature for cold start is 0C (32F)
    Electrical Data
    Voltage (autoranging) 110 to 220V AC in
    Frequency 50 to 60 Hz
    Current 0.20A to 0.33A
    Power rating (maximum consumption) 0.06 kVA
    Power consumption (watts)

           0% traffic

           10% traffic

           100% traffic

           Weighted average
    19.4

    26.5

    26.5

    24.1
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
    EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
    EMC: immunity EN55024, CISPR24, EN300386, KN24
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

    System status: system, PoE, and link speed
    Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

    CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
    Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet


    Install Cisco WS-C2960L-24TQ-LL Switch for Great Value Solutions

    Cisco WS-C2960L-24TQ-LL Switch features IOS Lan lite, 64 Gbps and 128 Gbps forwarding and switching bandwidth respectively, and 4 x 10G SFP Uplink Interfaces, with 512 MB DRAM.

    Key Benefits of Cisco WS-C2960L-24TQ-LL Switch

    Cisco WS-C2960L-24TQ-LL Switch is designed for simplified operations, the best-in-class reliability, and maximum better mobile experience for its users. It supports 2960-L Power over Ethernet (PoE) and all necessary applications to add a great value.

    Cisco WS-C2960L-24TQ-LL Switch Overview



    IOS LAN Lite
    Forwarding bandwidth 64 Gbps
    Switching bandwidth 128 Gbps
    10/100/1000 Ethernet Ports 24
    Uplink Interfaces 4 x 10G SFP
    Fanless Y
    DRAM 512 MB
    Flash memory 256 MB
    Dimensions (H x D x W) 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
    Net Weight 6.06 lb (2.75 kg)
    quick view
    Availability: In Stock
    $4,329.00
    $1,342.48
    quick view

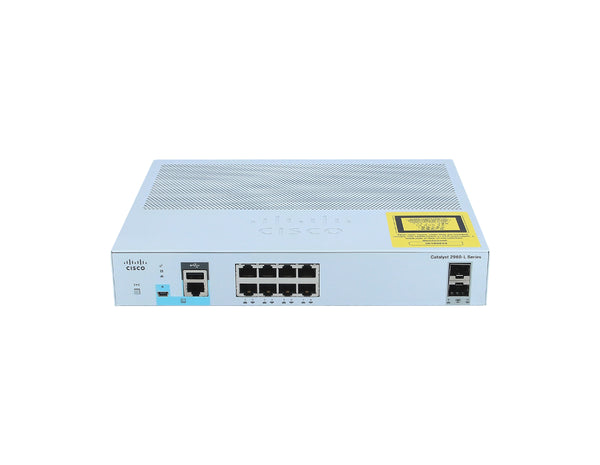

  • Cisco WS-C2960L-8TS-LL Switch - Network Devices Inc.
    Save $841.17

    CISCO WS-C2960L-8TS-LL SWITCH

    CISCO WS-C2960L-8TS-LL SWITCH

    $395.00
    $1,236.17
    • Switch
    • managed
    • 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
    • desktop
    • rack-mountable

    10/100/1000 Ethernet Ports 8
    Uplink Interfaces 2 SFP
    Fanless Y
    Dimensions (H x D x W) 1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm)
    Net Weight 4.45 lb (2.02 kg)
    RJ45 Ethernet 1
    USB mini-B 1
    USB-A port for storage and Bluetooth console 1
    CPU ARMv7 800 MHz
    DRAM 512 MB
    Flash memory 256 MB
    Forwarding bandwidth 10 Gbps
    Switching bandwidth 20 Gbps
    Forwarding rate (64-byte L3 packets) 14.88 Mpps
    Unicast MAC addresses 8K
    Maximum active VLANs 64
    VLAN IDs available 4094
    Maximum STP instances 64
    Maximum SPAN sessions 1
    MTU-L3 packet 9198 bytes
    Jumbo Ethernet frame 10,240 bytes
    MTBF in hours (Data) 2,448,133
    MTBF in hours (PoE) 315,044
    Up to 5,000 ft 23F to 113F (-5C to 45C)
    Up to 10,000 ft 23F to 104F (-5C to 40C)
    Operating altitude 10,000 ft (3000m)
    Operating relative humidity 5% to 90% at 40C
    Storage temperature -13 to 158F (-25 to 70C)
    Storage altitude 15,000 ft (4500m)
    Storage relative humidity 5% to 95% at 65C
    Storage altitude Minimum ambient temperature for cold start is 0C (32F)
    Electrical Data
    Voltage (autoranging) 110 to 220V AC in
    Frequency 50 to 60 Hz
    Current 0.13A to 0.22A
    Power rating (maximum consumption) 0.04 kVA
    Power consumption (watts)

           0% traffic

           10% traffic

           100% traffic

           Weighted average
    13.0

    14.8

    14.9

    14.2
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
    EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
    EMC: immunity EN55024, CISPR24, EN300386, KN24
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

    System status: system, PoE, and link speed
    Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

    CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
    Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet







    Cisco WS-C2960L-8TS-LL Switch for Operational Simplicity

    Cisco WS-C2960L-8TS-LL Switch is a fixed managed and Gigabit Ethernet switch. It provides enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses.


    Key Benefits of Cisco WS-C2960L-8TS-LL Switch

    Cisco WS-C2960L-8TS-LL Switch is built to simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. It provides a range of security features to limit access to the network and mitigate threats.

    quick view
    Availability: In Stock
    $1,236.17
    $395.00
    quick view
  • Cisco WS-C2960L-8PS-LL Switch - Network Devices Inc.
    Save $603.32

    CISCO WS-C2960L-8PS-LL SWITCH

    CISCO WS-C2960L-8PS-LL SWITCH

    $818.68
    $1,422.00
    • Switch
    • managed
    • 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
    • desktop
    • rack-mountable
    • PoE+ (67 W)

    10/100/1000 Ethernet Ports 8
    Uplink Interfaces 2 SFP
    Available PoE Power 67W
    RJ45 Ethernet 1
    USB mini-B 1
    USB-A port for storage and Bluetooth console 1
    CPU ARMv7 800 MHz
    DRAM 512 MB
    Flash memory 256 MB
    Forwarding bandwidth 10 Gbps
    Switching bandwidth 20 Gbps
    Forwarding rate (64-byte L3 packets) 14.88 Mpps
    Unicast MAC addresses 8K
    Maximum active VLANs 64
    VLAN IDs available 4094
    Maximum STP instances 64
    Maximum SPAN sessions 1
    MTU-L3 packet 9198 bytes
    Jumbo Ethernet frame 10,240 bytes
    MTBF in hours (Data) 2,448,133
    MTBF in hours (PoE) 315,044
    Up to 5,000 ft 23F to 113F (-5C to 45C)
    Up to 10,000 ft 23F to 104F (-5C to 40C)
    Operating altitude 10,000 ft (3000m)
    Operating relative humidity 5% to 90% at 40C
    Storage temperature -13 to 158F (-25 to 70C)
    Storage altitude 15,000 ft (4500m)
    Storage relative humidity 5% to 95% at 65C
    Storage altitude Minimum ambient temperature for cold start is 0C (32F)
    Electrical PoE
    Voltage (autoranging) 110 to 220V AC in
    Frequency 50 to 60 Hz
    Current 0.22A to 0.27A
    Power rating (maximum consumption) 0.11 kVA
    Power consumption (watts)
     0% traffic
    10% traffic
    100% traffic
    Weighted average
    19.9
    22.0
    22.0
    21.3
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
    EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
    EMC: immunity EN55024, CISPR24, EN300386, KN24
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

    System status: system, PoE, and link speed
    Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

    CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
    Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet


    Enterprise-class Cisco WS-C2960L-8PS-LL Switch

    Cisco WS-C2960L-8PS-LL Switch features fixed-configuration. This Gigabit Ethernet switch provides Layer 2 and basic Layer 3 enterprise-class access switching for branch offices, conventional workspaces, and out-of-the-wiring-closet applications.

    Key Benefits of Cisco WS-C2960L-8PS-LL Switch

    Cisco WS-C2960L-8PS-LL Switch is Cisco iOS Software based switch. It is fan-less, easy-to-use, energy efficient, cost-effective, reliable, and secure. This Cisco Catalyst 2960-L Series Switch includes a single fixed power supply.



    Product Code WS-C2960L-8PS-LL
    IOS LAN Lite
    Forwarding bandwidth 10 Gbps
    Switching bandwidth 20 Gbps
    10/100/1000 Ethernet Ports 8 PoE+ Ports
    Available PoE Power 67W
    Uplink Interfaces 2 x 1G SFP
    Fanless Y
    DRAM 512MB
    Flash memory  256MB
    Dimensions (H x D x W) 1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm)
    Net Weight 5.64 lb (2.56 kg)



    quick view
    Availability: In Stock
    $1,422.00
    $818.68
    quick view
  • Cisco WS-C2960L-48TQ-LL Switch - Network Devices Inc.
    Sold Out

    CISCO WS-C2960L-48TQ-LL SWITCH

    CISCO WS-C2960L-48TQ-LL SWITCH

    $3,197.30
    $6,366.00
    • Switch
    • managed
    • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
    • desktop
    • rack-mountable

    RJ45 Ethernet 1
    USB mini-B 1
    USB-A port for storage and Bluetooth console 1
    CPU ARMv7 800 MHz
    Forwarding rate (64-byte L3 packets) 77.38 Mpps
    Unicast MAC addresses 8K
    Maximum active VLANs 64
    VLAN IDs available 4094
    Maximum STP instances 64
    Maximum SPAN sessions 1
    MTU-L3 packet 9198 bytes
    Jumbo Ethernet frame 10,240 bytes
    MTBF in hours (Data) 1,370,769
    MTBF in hours (PoE) 437,970
    Up to 5,000 ft 23F to 113F (-5C to 45C)
    Up to 10,000 ft 23F to 104F (-5C to 40C)
    Operating altitude 10,000 ft (3000m)
    Operating relative humidity 5% to 90% at 40C
    Storage temperature -13 to 158F (-25 to 70C)
    Storage altitude 15,000 ft (4500m)
    Storage relative humidity 5% to 95% at 65C
    Storage altitude Minimum ambient temperature for cold start is 0C (32F)
    Electrical Data
    Voltage (autoranging) 110 to 220V AC in
    Frequency 50 to 60 Hz
    Current 0.29A to 0.48A
    Power rating (maximum consumption) 0.09 kVA
    Power consumption (watts)

           0% traffic

           10% traffic

           100% traffic

           Weighted average
    29.7

    41.1

    41.1

    37.3
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
    EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
    EMC: immunity EN55024, CISPR24, EN300386, KN24
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

    System status: system, PoE, and link speed
    Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

    CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
    Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet







    Use Cisco WS-C2960L-48TQ-LL Switch for Operational Simplicity

    Cisco WS-C2960L-48TQ-LL Switch is a managed switch, featuring 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+, rack-mountable.

    Key Benefits of Cisco WS-C2960L-48TQ-LL Switch

    Cisco WS-C2960L-48TQ-LL Switch is designed to simplify operations and provide reliability and deliver better mobile experiences to users. It supports Power over Ethernet (PoE) and makes users’ network ready for mobile devices and applications.

    IOS WS-C2960L-48TQ-LL
    Forwarding bandwidth 88 Gbps
    Switching bandwidth 176 Gbps
    10/100/1000 Ethernet Ports 48
    Uplink Interfaces 4 x 10G SFP
    Fanless Y
    DRAM 512 MB
    Flash memory 256 MB
    Dimensions (H x D x W) 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
    Net Weight 6.68 lb (3.03 kg)
    Availability: Out Of Stock
    $6,366.00
    $3,197.30
  • Cisco WS-C2960L-24TS-LL Switch - Network Devices Inc.
    Sold Out

    CISCO WS-C2960L-24TS-LL SWITCH

    CISCO WS-C2960L-24TS-LL SWITCH

    $1,195.00
    $2,238.14
    • LAN Lite
    • Data
    • 4 SFP or SFP+ uplinks
    • Fanless

    RJ45 Ethernet 1
    USB mini-B 1
    USB-A port for storage and Bluetooth console 1
    CPU ARMv7 800 MHz
    Forwarding rate (64-byte L3 packets) 41.67 Mpps
    Unicast MAC addresses 8K
    Maximum active VLANs 64
    VLAN IDs available 4094
    Maximum STP instances 64
    Maximum SPAN sessions 1
    MTU-L3 packet 9198 bytes
    Jumbo Ethernet frame 10,240 bytes
    MTBF in hours (Data) 2,412,947
    MTBF in hours (PoE) 909,838
    Up to 5,000 ft 23F to 113F (-5C to 45C)
    Up to 10,000 ft 23F to 104F (-5C to 40C)
    Operating altitude 10,000 ft (3000m)
    Operating relative humidity 5% to 90% at 40C
    Storage temperature -13 to 158F (-25 to 70C)
    Storage altitude 15,000 ft (4500m)
    Storage relative humidity 5% to 95% at 65C
    Storage altitude Minimum ambient temperature for cold start is 0C (32F)
    Electrical Data
    Voltage (autoranging) 110 to 220V AC in
    Frequency 50 to 60 Hz
    Current 0.20A to 0.33A
    Power rating (maximum consumption) 0.06 kVA
    Power consumption (watts)

           0% traffic

           10% traffic

           100% traffic

           Weighted average
    19.4

    26.5

    26.5

    24.1
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
    EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
    EMC: immunity EN55024, CISPR24, EN300386, KN24
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full-duplex

    System status: system, PoE, and link speed
    Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

    CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
    Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet







    Install Cisco WS-C2960L-24TS-LL Switch for Security, Reliability & Optimum Operational Convenience

    Cisco WS-C2960L-24TS-LL Switch is one of the Cisco Catalyst 2960-L Series Switches. It offers fixed-configuration and 24 x Gigabit Ethernet ports, 4 x 1G SFP and LAN Lite.

    Key Benefits of Cisco WS-C2960L-24TS-LL Switch

    Cisco WS-C2960L-24TS-LL Switch is designed for simplifying operations and lowering total cost of ownership. It enables secure, easy-to-use, fanless operation, and energy-efficient business operations with a range of Cisco IOS Software features. Get Layer 2 and basic Layer 3 enterprise-class access switching solutions for branch offices, conventional workspaces, and out-of-the-closet applications.



    IOS LAN Lite
    Forwarding bandwidth 28 Gbps
    Switching bandwidth 56 Gbps
    10/100/1000 Ethernet Ports 24
    Uplink Interfaces 4 x 1G SFP
    Fanless Y
    DRAM 512 MB
    Flash memory 256 MB
    Dimensions (H x D x W) 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
    Net Weight 6.61 lb (3.0 kg)
    Availability: Out Of Stock
    $2,238.14
    $1,195.00
