CISCO AIR-PWRINJ6 POE INJECTOR
| Model: | AIR-PWRINJ6 | ||
| Detail: |
| List Price: |
| |
| Price: | $116.00 |
||
| You Save: | $92.00 (44% OFF) | ||
| Condition: | Brand New Sealed | ||
| Availability: | Out of Stock | ||
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. | ||
| Tax: | $0.00 Tax Outside NJ and TX | ||
| Quantity: |

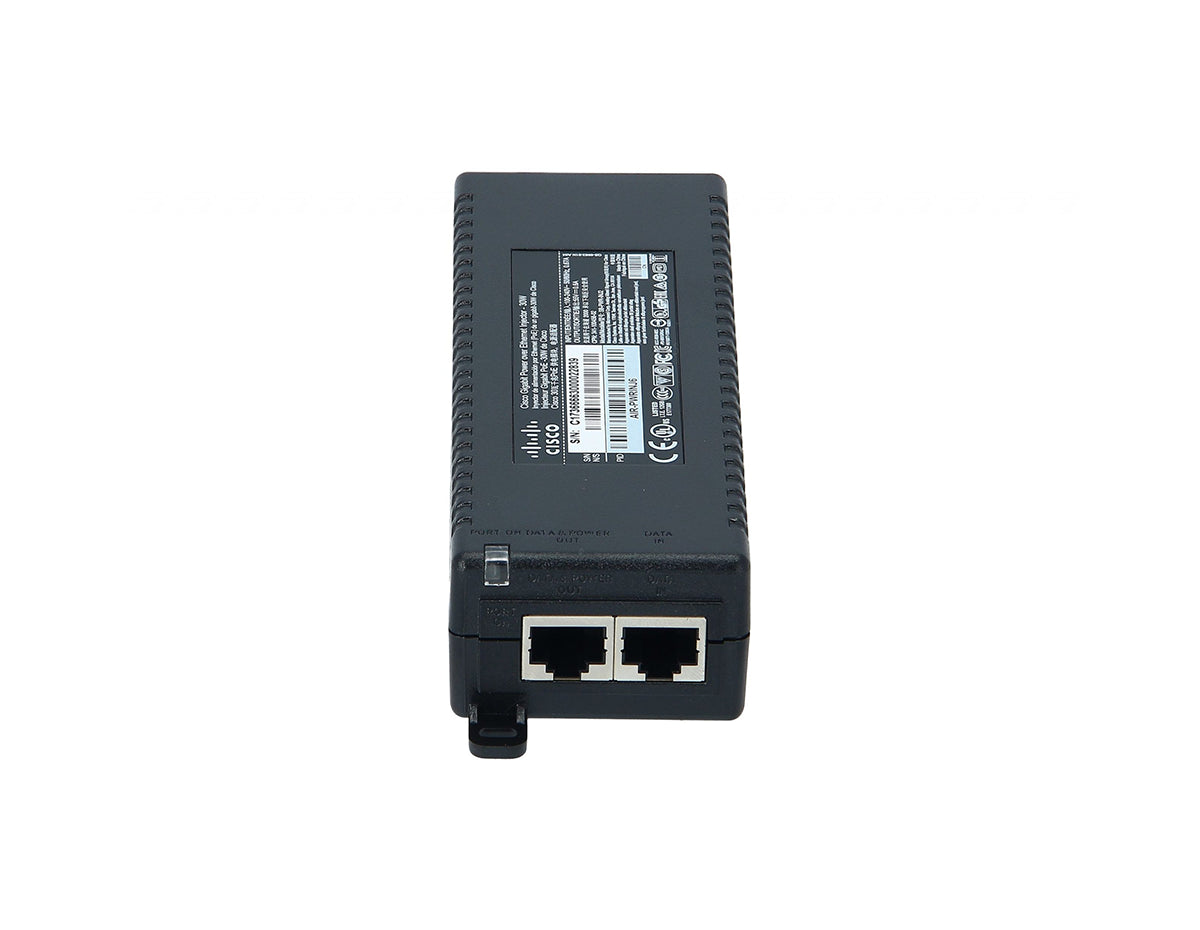

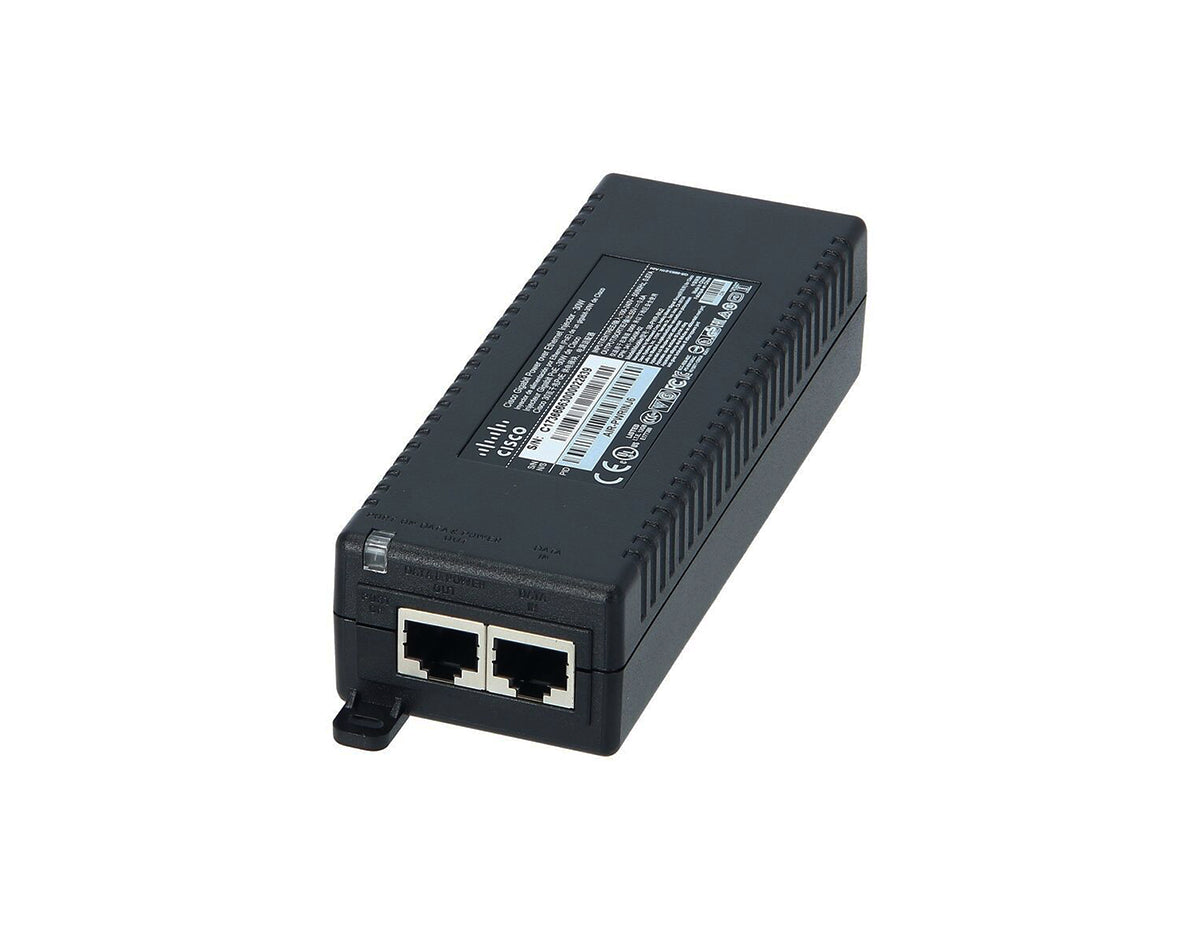

Cisco AIR-PWRINJ6= POE Injector
The Cisco Aironet Power Injector AIR-PWRINJ6= is a single-port PoE injector that can provide up to 30 Watts of power and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. It connects to a 10/100/1000 Ethernet switch, hub, or network using a Category 5 or better Ethernet cable, and another cable carries power and data to the access point's WAN Ethernet port.
Key Features:
- Built-in power supply
- C13 connector
- For Cisco Aironet Systems
For detailed specifications, refer to the AIR-PWRINJ6 datasheet in the tabs.
Specifications
| Specifications | AIR-PWRINJ6 |
| Description | The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels. |
| Product Family | Cisco Aironet Power Injector |
| Product Type | Power Injector |
| Dimensions (W, H, L) | Model 1: 53 mm x 32.5 mm x 140 mm 2.09 in x 1.28 in x 5.5 in Model 2: 65 mm x 36 mm x 140 mm 2.55 in x 1.42 in x 5.51 in |
| Data Rates | 10/100/1000 Mbps |
| PoE Output | Pin Assignment and Polarity: IEEE 802.3at compliant Output Power Voltage: 55V DC |
| User Port Power | 30 Watts |
| Input Power Requirements | AC Input Voltage: 100 to 240V AC AC Input Current: 0.8 A @ 100 - 240 V AC AC Frequency: 50 to 60 Hz |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Operating Temperature | -4ºF to 104ºF (-20ºC to 40ºC) at 30 W -4ºF to 122ºF (-20ºC to 50ºC) at 25 W |
| Reliability | MTBF: 100,000 hrs @ 25ºC |
| Thermal Rating | 20 BTU/Hr @ 240 V AC |
| Regulatory Compliance | IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant |
| Electromagnetic Emission and Immunity | FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI |
| Safety | UL 60950-1 IEC/EN 60950-1 |
