[shortdesc]

Advanced 4 MP dome with deep learning, Outstanding image quality in 4 MP, Analytics with deep learning, Available with wide or tele lens, IR-shielded dome to prevent reflections, aluminum and plastic casing with a polycarbonate dome (IR-shielded) and sunshield and built-in cybersecurity features

[/shortdesc]

[properties]

Properties	AXIS Q3536-LVE 29 mm Dome Camera
Description	The AXIS Q3536-LVE Dome Camera is an advanced 4 MP camera with outstanding image quality, Lightfinder 2.0, and Forensic WDR. Equipped with OptimizedIR for harsh weather conditions, it prevents reflections with its IR-shielded dome. Built on the latest Axis system-on-chip, it supports deep learning applications like preinstalled AXIS Object Analytics. This robust camera includes redundant power, intrusion and shock detection sensors, and cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified TPM. Available with a wide or telephoto lens for versatility.
Product Family	AXIS Q3536-LVE Dome Camera
Product Type	Camera

[/properties] [specifications]

Specifications	AXIS Q3536-LVE 29 mm Dome Camera
Camera
Image sensor	1/1.8” progressive scan RGB CMOS
Lens	AXIS Q3536-LVE 29 mm:
	Varifocal, 11.3–29.4 mm, F1.7
	Horizontal field of view: 40°–15°
	Vertical field of view: 22°–9°
	Varifocal, Remote focus and zoom, P-Iris control, IR corrected
Day and night	Automatically removable infrared-cut filter
Minimum illumination	AXIS Q3536-LVE 29 mm:
	Color: 0.08 lux at 50 IRE, F1.7
	B/W: 0 lux at 50 IRE, F1.7
Shutter speed	1/91000 s to 1 s
Camera angle adjustment	Pan ±180°, tilt -43 to +80°, rotation ±175°
System on chip (SoC)
Model	ARTPEC-8
Memory	2048 MB RAM, 8194 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	Up to 2688x1512
Frame rate	With WDR: 25/30 fps with power line frequency 50/60 Hz
Frame rate	Without WDR: 50/60 fps with power line frequency 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Video streaming indicator
Multi-view streaming	Up to 8 individually cropped out view areas
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR: Up to
	120 dB depending on scene, white balance, day/night threshold,
	tone mapping , exposure mode, exposure zones, defogging,
	barrel distortion correction, electronic image stabilization,
	compression, rotation: 0°, 90°, 180°, 270° including Corridor
	Format, mirroring, text and image overlay, dynamic text and
	image overlay, privacy masks, polygon privacy mask
Pan/Tilt/Zoom	Digital PTZ, optical zoom, preset positions
	Limited guard tour, control queue, on-screen directional indicator
	Tour recording (max 10, max duration 16 minutes each), guard
	tour (max 100)
	AXIS Q3536-LVE 29 mm: 2.6x optical zoom
Audio
Audio streaming	Two-way, full duplex
Audio encoding	24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726
	ADPCM 8 kHz, Opus 8/16/48 kHz
	Configurable bit rate
Audio input/output	External microphone input or line input (balanced or unbalanced),
	line output, digital audio input, automatic gain control
	Microphone power:
	Microphone power 5V on tip, ring power 12V on ring,
	phantom power 12V on tip/ring
Network
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified)
Security	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Supported protocols	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection (O3C)
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T
Onscreen controls	Electronic image stabilization
	Day/night shift
	Defogging
	Wide dynamic range
	Video streaming indicator
	IR illumination
	Heater
Event conditions	Analytics, external input, supervised external input, edge storage
	events, virtual inputs through API
	Audio: audio detection, audio clip playing
	Call: state, state change
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, IP address
	removed, network lost, new IP address, shock detected, casing
	open, storage failure, system ready, within operating temperature
	Digital audio: digital signal contains Axis metadata, digital signal
	has invalid sample rate, digital signal missing, digital signal okay
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	I/O: digital input, manual trigger, virtual input
	MQTT subscribe
	MQTT: stateless
	Scheduled and recurring: schedule
	Video: tampering, average bitrate degradation, day-night mode,
	live stream open
Event actions	I/O: toggle I/O once, toggle I/O while the rule is active
	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share and email
	Pre- and post-alarm video or image buffering for recording or
	upload
	Notification: email, HTTP, HTTPS, TCP and SNMP trap
	Calls: end SIP call, make SIP call, answer call
	MQTT publish
	Overlay text, external output activation, play audio clip, zoom
	preset, day/night mode, make call, flash status LED, use lights,
	set defog mode, send MQTT publish message, set WDR mode
Data streaming	Event data
Built-in installation aids	Leveling assistant, straighten image, image grid, pixel counter
Analytics
Compute capabilities	Deep learning processing unit (DLPU)
AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
	Trigger conditions: line crossing, object in area
	Up to 10 scenarios
	Metadata visualized with color-coded bounding boxes
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Applications	Included
	AXIS Object Analytics
	AXIS Video Motion Detection, active tampering alarm, audio
	detection
	Supported
	Support for AXIS Camera Application Platform
General
Casing	IP66-, IP6K9K-, NEMA 4X- and IK10+-rated
	Polycarbonate hard coated dome
	Aluminum and plastic casing, polycarbonate (PC) dome, sunshield
	(PC/ASA)
	Color: white NCS S 1002-B
	For repainting instructions of casing
	contact your Axis partner.
	This product can be repainted
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, 4” square, and 4” octagon)
	¾” (M25) conduit side entry
Sustainability	PVC free
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
	Typical 9 W, max 23 W
	10–28 V DC, typical 9 W, max 24 W
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
	DC input, 3.5 mm mic/line in, 3.5 mm line out
	Terminal block for two configurable supervised inputs / digital
	outputs (12 V DC output, max load 50 mA)
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs
IR illumination	AXIS Q3536-LVE 29 mm: Range of reach 60 m (200 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
Operating conditions	(-50 °C to 60 °C) (-58 °F to 140 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Start-up temperature: -40 °C (-40 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C (-40 °F to 149 °F)
Storage conditions	Humidity 5-95% RH (non-condensing)
Approvals	EMC
	CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,
	EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
	KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
	VCCI Class A
	Safety
	CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1,
	IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252
	Environment
	IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66,
	ISO 20653 IP6K9K, IEC/EN 62262 IK10+ (50J), NEMA 250 Type 4X,
	NEMA TS 2 (2.2.7-2.2.9)
	Network
	NIST SP500-267
Dimensions	Height: 124 mm (4.9 in), 184 mm (7.3 in) including weathershield
Dimensions	ø 183 mm (7.2 in)
Weight	2.1 kg (4.6 lb) including weathershield
Included accessories	Installation guide, Windows® decoder 1-user license, drill hole
	template, terminal block connectors for DC and I/O, RESISTORX®
	L-key, connector guard, cable gasket, conduit adapter, mounting
	bracket, weathershield
Video management software	AXIS Companion, AXIS Camera Station, video management
Video management software	software from Axis Application Development
Languages	English, German, French, Spanish, Italian, Russian, Simplified
Languages	Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

[/specifications] [accesories]

Optional accessories

• AXIS T8415 Wireless Installation Tool
• AXIS Surveillance Cards
• AXIS TQ3807-E Dome Smoked
• AXIS T94M01D Pendant Kit

[/accesories]

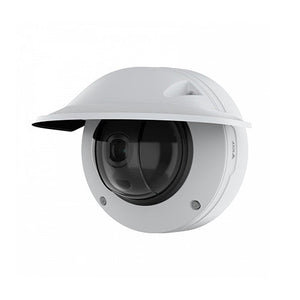

AXIS Q3536-LVE 29 mm Dome Camera (02224-001)

The AXIS Q3536-LVE is a high-quality camera with exceptional image quality and forensic details in 4 MP resolution, even in harsh weather conditions and challenging environments. It comes enclosed in a sturdy metal casing and has an IK10+ rating, making it resistant to redirection, defocusing, and impacts. The camera is outdoor-ready and can withstand temperatures ranging from as low as -50 °C to as high as 60 °C.

Quick Specs:

Outstanding image quality in superior 4MP
IR-shielded dome to prevent reflections
Available with wide or tele lens
Analytics with deep learning

Please see the related tabs for the 02224-001 datasheet and compatible accessories.

Feature	AXIS Q3536-LVE	AXIS Q3538-LVE	AXIS Q3538-SLVE
Max video resolution	2688x1512	3840x2160	3840x2160
Horizontal field of view	103 - 52 / 40°–15°	103 - 48	103.4 - 48.6
Lightfinder	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0
OptimizedIR	✔	✔	✔
Wide dynamic range	Forensic WDR	Forensic WDR	Forensic WDR
Two-way audio	✔	✔	–
Alarm inputs/outputs	2	2	2
Remote zoom	✔	✔	✔
Remote focus	✔	✔	✔
Zipstream	✔	✔	✔
Electronic image stabilization	✔	✔	✔
Analytics compute capability	DLPU	DLPU	DLPU
TPM	✔	✔	✔
Axis Edge Vault	✔	✔	✔
Vandal rating	IK10+	IK10+	IK10+

This product has been discontinued.

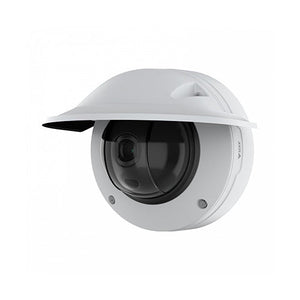

AXIS Q3536-LVE 9 mm Dome Camera (02054-001)

AXIS Q3536-LVE 29 mm Dome Camera (02224-001)
