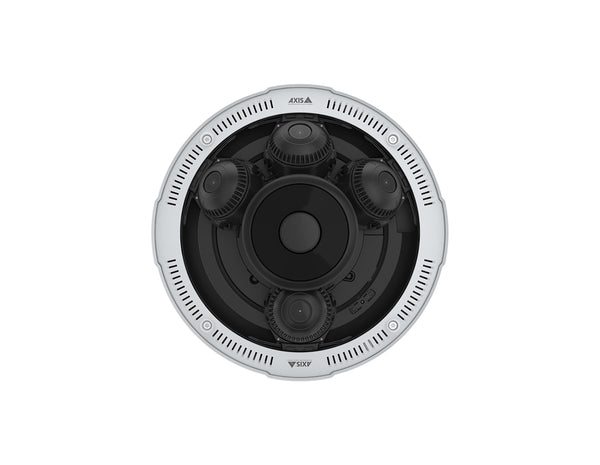

AXIS P3737-PLE PANORAMIC CAMERA

Accessories

Optional accessories

• AXIS TP3105-E Pendant Kit Black, AXIS TP3204-E Recessed • Mount, AXIS TP3832-E Dome Smoked, AXIS TP3833-E Dome • Casing Black, AXIS T94N01D Pendant Kit, AXIS TP3004–E Wall • Mount Black, AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards

Specifications

Specifications	AXIS P3737-PLE Panoramic Camera
Camera
Image sensor	4x 1/2.7” progressive scan RGB CMOS
	Pixel size 2.0 µm
Lens	Varifocal, 3.2–8.1 mm, F1.9-3.2
	Horizontal field of view: 99°–37°
	Vertical field of view: 70°–28°
	Diagonal field of view: 134°–47°
	Minimum focus distance: 0.5 m (1.6 ft)
	Fixed iris, IR corrected, remote zoom and focus
Day and night	Automatic IR-cut filter
Minimum illumination	Color: 0.19 lux at 50 IRE, F1.9
	B/W: 0 lux at 50 IRE, F1.9
	0 lux with IR illumination on
Shutter speed	5 MP and WDR on:1/28000 s to 1/5 s
	Quad HD and WDR on: 1/33500 s to 1/5 s
	WDR off: 1/50000 s to 1/5 s
Camera angle adjustment	Pan ±90°
	Tilt +25 to +95°
	Rotation -5° to +95°
	Twist ±20°
System on chip (SoC)
Model	ARTPEC-8
Memory	4096 MB RAM, 8192 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	4:3 4x 2592x1944 (4x 5 MP) to 4x 320x240
	16:9 4x2560x1440 (4x Quad HD) to 4x 320x180
Frame rate	5 MP: Up to 20/20 fps (50/60 Hz) in all resolutions
	Quad HD: Up to 25/30 fps (50/60 Hz) in all resolutions
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Low latency mode
	Video streaming indicator
Signal-to-noise ratio	>55 dB
WDR	Forensic WDR: Up to 120 dB depending on the scene
Noise reduction	Spatial filter (2D noise reduction)
	Temporal filter (3D noise reduction)
Image settings	Saturation, contrast, brightness, sharpness, white balance,
	day/night threshold, local contrast, tone mapping, exposure
	mode, exposure zones, barrel distortion correction, compression,
	rotation: 0°, 90°, 180°, 270° including corridor format, mirroring,
	text and image overlay, dynamic text and image overlay, privacy
	masks, polygon privacy mask
Image processing	Forensic WDR, Lightfinder, OptimizedIR
Audio
Audio input/output	Audio features through portcast technology: two-way audio
	connectivity with AXIS T61 Mk ll
Audio streaming	Two-way (half duplex, full duplex) via network speaker pairing
	technology
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
	*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX®, metadata
	and AXIS Camera Application Platform (ACAP); specifications at
	axis.com/developer-community. ACAP includes Native SDK and
	Computer Vision SDK.
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T, specifications at onvif.org
Video management systems	Compatible with AXIS Companion, AXIS Camera Station, video
	management software from Axis’ Application Development
	Partners are available at axis.com/vms
Onscreen controls	Autofocus
	Video streaming indicator
	IR illumination
	Privacy masks
	Media clip
Edge-to-edge	Speaker pairing
Event conditions	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, within
	operating temperature, IP address removed, new IP address,
	network lost, system ready, live stream active, casing open
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	I/O: manual trigger, virtual input
	MQTT: stateless
	Scheduled and recurring: schedule
	Video: average bitrate degradation, day-night mode, tampering
Event actions	Day-night mode
	Illumination: use lights, use lights while the rule is active
	MQTT: Publish
	Notification: HTTP, HTTPS, TCP, and email
	Overlay text
	Recordings: record, record while the rule is active
	SNMP traps: send, send while the rule is active
	Status LED: flash, flash while the rule is active
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	Share, and email
Built-in installation aids	Remote zoom and focus, pixel counter, barrel distortion correction
Analytics
Multisensor analytics	4 channels of analytics support
AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
	Features: line crossing, object in area, crossline countingBETA, occupancy in areaBETA
	Up to 8 scenarios
	Metadata visualized with trajectories and color-coded bounding
	boxes and tables
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Metadata	Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
	Confidence, position
	Attributes: Vehicle color, upper/lower clothing color, confidence, position
	Event data: Producer reference, scenarios, trigger conditions
Applications	Included
	AXIS Object Analytics, AXIS Video Motion Detection, active
	tampering alarm
	Supported
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
Approvals
Product markings	CSA, UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM
Supply chain	TAA compliant
EMC	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A,
	EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1,
	EN 61000-6-2
	Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
	Canada: ICES-3(A)/NMB-3(A)
	Japan: VCCI Class A
	Korea: KS C 9835, KS C 9832 Class A
	USA: FCC Part 15 Subpart B Class A
	Railway: IEC 62236-4
Safety	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,
	IEC/EN 62471 risk group exempt, IS 13252,
	RCM AS/NZS 62368.1:2022
Environment	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67,
	IEC/EN 62262 IK09, ISO 21207 (Method B),
	MIL-STD-810H (Method 501.7, 502.7, 505.7 506.6, 507.6 509.7, 512.6),
	NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364
Network	NIST SP500-267, IPv6 USGv6
Cybersecurity
Edge security	Software: Signed firmware, brute force delay protection, digest
	authentication, password protection
	Hardware: Axis Edge Vault cybersecurity platform
	TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure
	keystore, signed video, secure boot, encrypted filesystem
	(AES-XTS-Plain64 256bit)
Network security	IEEE 802.1X (EAP-TLS)*, IEEE 802.1AR, HTTPS/HSTS*, TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
	* This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Documentation	AXIS OS Hardening Guide
	Axis Vulnerability Management Policy
	Axis Security Development Model
	AXIS OS Software Bill of Material (SBOM)
	To download documents, go to axis.com/support/cybersecurity/resources
General
Casing	IP66-, IP67-, NEMA 4X- and IK09-rated
	Polycarbonate hard-coated dome
	Aluminum and plastic casing, polycarbonate (PC) dome
	Color: white NCS S 1002-B
	For repainting instructions, go to the product’s support
	page. For information about the impact on warranty, go to
	axis.com/warranty-implication-when-repainting.
Mounting	Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon)
	½” (M20) conduit side entry
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
	IR illumination on: class 4, typical 13.25 W, max 23.30 W
	IR illumination off: class 3, typical 6.80 W, max 12.32 W
Connectors	Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs
	Range of reach 15m (49.2 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-30°C to 50 °C) (-22 °F to 122 °F)
	Humidity 10–100% RH (condensing)
	Maxiumum temperature according to NEMA TS 2 (2.2.7):
	74 °C(165 °F)
Storage conditions	(-40 °C to 65 °C ) (-40 °F to 149 °F)
	Humidity 5–95% RH (non-condensing)
Dimensions	For the overall product dimensions, see the dimension drawing
	in this datasheet.
	Effective Projected Area (EPA): 0.022 m² (0.24 ft²)
Weight	2 kg (4.4 lb)
Box content	Camera, installation guide, connector guard, cable gaskets
System tools	AXIS Site Designer, AXIS Device Manager, product selector,
	accessory selector, lens calculator
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional
	Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai,
	Vietnamese
Sustainability
Substance control	PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard
	JS709 RoHS in accordance with EU RoHS Directive 2011/65/EU/ and
	EN 63000:2018
	REACH in accordance with (EC) No 1907/2006. For SCIP UUID,
	see echa.europa.eu
Materials	Renewable carbon-based plastic content: 17% (recycled: 9%,
	bio-based: 1%, carbon capture based: 7%)
	Screened for conflict minerals in accordance with OECD guidelines
	To read more about sustainability at Axis, go to
	axis.com/about-axis/sustainability
Environmental responsibility	axis.com/environmental-responsibility
	Axis Communications is a signatory of the UN Global Compact,

Properties

Properties	AXIS P3737-PLE Panoramic Camera
Description	The AXIS P3737-PLE Panoramic Camera offers four 5 MP channels, 360° IR illumination, flexible mounting, and advanced analytics support.
Product Family	AXIS Panoramic Camera
Product Type	Camera
