[shortdesc]

Outdoor-ready 2 MP affordable surveillance, Compact and flexible design, Lightfinder and Forensic WDR, Audio input, AXIS Object Analytics, Remote zoom and focus with i-CS

[/shortdesc]

[properties]

Properties	M1135-E Mk II i-CS
Description	AXIS M1135-E Mk II i-CS Box Camera is an outdoor-ready box camera that delivers 2MP image quality even in low light conditions. Remote zoom and focus with i-CS in an affordable surveillance.
Product Family	AXIS M11 Series (M1135-E Mk II i-CS)
Product Type	Box Camera
Image sensor	1/2.9" progressive scan RGB CMOS
Lightfinder	Lightfinder
Wide dynamic range	Forensic WDR
PoE Class	IEEE 802.3af/802.3at Type 1 Class 3
Wireless	-
Connectors	RJ45 10BASE-T/100BASE-TX PoE
	Terminal block for one input and one output (12 V DC output, max load 25 Ma
	DC input, terminal block
	3.5 mm mic/line in
Signed firmware	Signed OS, signed video, and secure boot
Secure boot	Yes
Remote focus	Yes
Remote zoom	Yes
Built-in IR	-
Local storage (memory card slot)	Yes
Outdoor Ready	-
Vandal rating	IK10
IP rating	IP66
Designed for repaint	Yes
Power (max)	6.6 W
Power (average)	4.4 W
DC input voltage	10-28 V
Dimensions	240 x 143 x 324 mm (9.5 x 5.6 x 12.8 in) including wall mount
Weight	1.8 kg (4.0 lb) including wall mount
Operating Temperature	-25 °C to 50 °C (-13 °F to 122 °F)
Event actions	File upload via FTP, HTTP HTTPS, SFTP, network share and email MQTT publish Notification via email, HTTP, HTTPS, TCP Video recording to edge storage, pre- and post-alarm video buffering, PTZ preset, guard tour, send video clip, send SNMP trap, day/night vision mode, WDR mode, status LED indicator, output port
Applications	AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm
Supported	Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity	Software: Signed OS, signed video, and secure boot, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
	Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot
	Network Security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering

[/properties][specifications]

Specifications	M1135-E Mk II i-CS
System on chip (SoC) Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Min illumination/ light sensitivity (Color)	0.15 lux (50 IRE, F1.4) / 0.10 lux (30 IRE, F1.4)
Min illumination/ light sensitivity (B/W)	0.03 lux (50 IRE, F1.4) / 0.02 lux (30 IRE, F1.4)
Max video resolution	1920x1080
Max frames per second	Up to 25/30 fps (50/60 Hz) in all resolutions
Electronic image stabilization	-
Focal length	3.5–10 mm
Horizontal field of view	101°–33°
Vertical field of view	53°–18°
Lens mount	CS
Replaceable lens	Yes
Zipstream	Yes
H.264	Baseline, High, Main
H.265	Yes
Motion JPEG	Yes
Audio streaming	Audio in, simplex, two-way audio via edge-to-edge technology
Audio input/output	External microphone input or line input, automatic gain control, network speaker pairing
Sustainability	PVC free

[/specifications][accesories]

Box Content
AXIS T94Q01A Wall Mount, Torx® T20 screw driver, Torx® T30 screw bit, connector kit, installation guide, Windows® decoder 1-user license
Optional lenses
Computar 12.5-50 mm, DC-iris Lens CS 2.8-13 mm F1.4 DC-Iris 5 MP Lens Computar i-CS 2.8-8.5 mm
Optional accessories
AXIS T94R01P	Conduit Back Box
AXIS T98A16-VE	Surveillance Cabinet Series
AXIS T91B47	Pole Mount
AXIS T90B	Illuminators
AXIS T8351	Mk II Microphone 3.5 mm
AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB	High endurance microSDXC™ cards

[/accesories]

AXIS M1135-E MK II i-CS Box Camera (02622-001)

Outdoor, NEMA 4X, IP66 and IK10-rated, light weight HDTV 1080p resolution, day/night, compact fixed box camera with CS-mount providing Forensic WDR and Lightfinder technology. Includes an IR corrected varifocal i-CS lens 3.5-10 mm F1.8 with remote installation zoom and focus. Camera also supports DC-iris lenses. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; full HDTV 1080p at 25/30 fps. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics and active tampering alarm. Audio in and audio detection with optional microphone. I/O for alarm/event handling, MQTT support. Axis Edge Vault for added cyber security. MicroSD card slot for local storage. Operation in -25 degreeC to +50 degreeC. Powered by IEEE 802.3af/802.3at Type 1 Class 3 or 8-28VDC input. Includes removable sunshield, wall bracket, Torx T20 screw driver and IP66- rated cable glands. Midspan or power supply not included.

Feature	AXIS M1135 Mk II	AXIS M1135-E Mk II	AXIS M1137 Mk II	AXIS M1137-E Mk II
Max video resolution	1920x1080	1920x1080	2592x1944	2592x1944
Horizontal field of view	90-33 / 101-33	90-33 / 101-33	112-24 / 99-31	112-24 / 99-31
Alarm inputs/outputs	1/1	1/1	1/1	1/1
Local storage (memory card slot)	✔	✔	✔	✔
Zipstream	✔	✔	✔	✔
Built-in IR	–	–	–	–
Day and Night functionality	✔	✔	✔	✔
Lens mount	CS	CS	CS	CS
Built-in microphone	1	–	1	–
Wide dynamic range	Forensic WDR	Forensic WDR	Forensic WDR	Forensic WDR
Edge to edge	Network speakers	Network speakers	Network speakers	Network speakers

[/accesories]AXIS M1135-E MK II i-CS Box Camera (02622-001)

[/accesories]

AXIS M1135-E MK II i-CS Box Camera (02622-001)

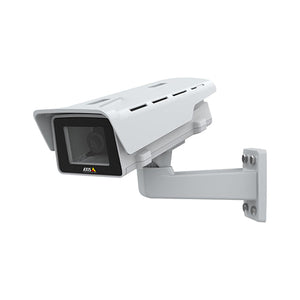

AXIS M1135-E Mk II Outdoor 2MP Network Box Camera (02485-001)
