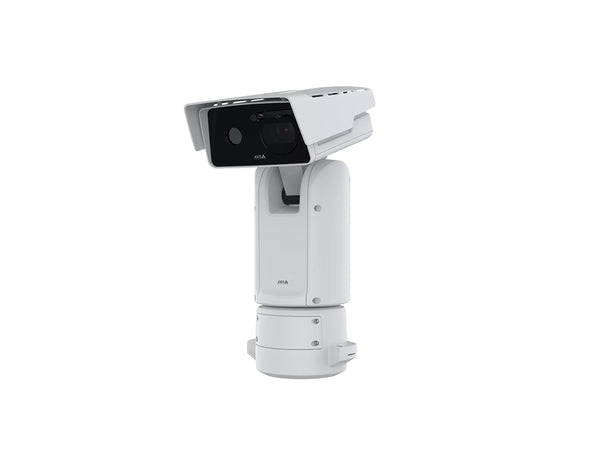

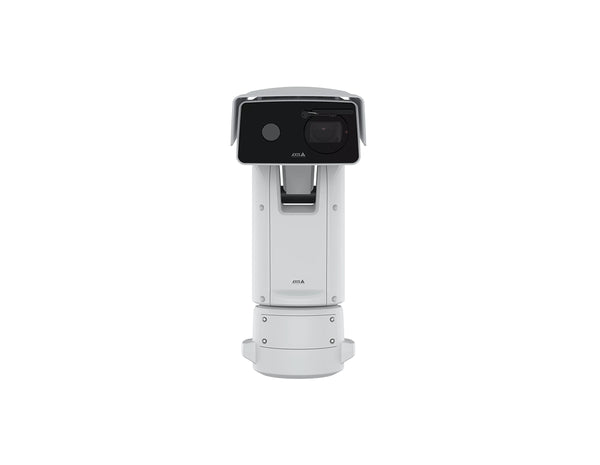

AXIS Q8752-E Mk II 35 mm 30 fps Bispectral PTZ Camera (03053-001)

AXIS Q8752-E Mk II 35 mm 30 fps Bispectral PTZ Camera (03053-001)

Name: AXIS Q8752-E Mk II 35 mm 30 fps Bispectral PTZ Camera (03053-001)
Brand: Axis
Price: 15166.0 USD
Availability: InStock

Part Number: 03053-001

Technical Details

Bispectral PTZ camera with 35 mm thermal lens, HDTV 1080p visual channel, 30 fps thermal imaging, 360° infinite pan, dual electronic image stabilization, and built-in cybersecurity.

$15,166.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Long-Range Thermal Detection with High-Speed 30 fps Output

The AXIS Q8752-E Mk II 35 mm 30 fps provides enhanced long-range detection with 30 fps thermal imaging for smoother tracking and improved situational awareness. Its fixed 35 mm thermal lens offers stable, consistent long-distance coverage, while the HDTV 1080p visual sensor with Lightfinder 2.0 and Forensic WDR ensures excellent performance in both low-light and high-contrast scenes.

Powered by ARTPEC-7 with a dedicated deep learning processing unit, this camera enables advanced analytics and automated response actions. With IP66, IK10, NEMA 4X, ISO 12944-6 C5, and MIL-STD-810H protection, it is built for demanding outdoor environments.

Key Benefits

30 fps thermal imaging for smooth motion tracking
Fixed 35 mm thermal lens optimized for long-distance detection
Dual-channel thermal + visual imaging for accurate verification
Lightfinder 2.0 and Forensic WDR for enhanced visual detail
Dual EIS ensures stability in windy or vibrating installations
Rugged IP66, IK10, NEMA 4X construction for harsh environments

Ideal Use Cases

Perimeter protection with fast-frame thermal detection
Critical infrastructure and utility sites
Border and wide-area monitoring
Industrial outdoor surveillance requiring stable, reliable PTZ performance

Technical Specifications Summary

Image sensor: 1/2.8"" CMOS (visual); 640×480 uncooled microbolometer (thermal)
Lens: 4.3–137.6 mm visual; 35 mm fixed thermal
Thermal frame rate: Up to 30 fps
Video: H.264/H.265/MJPEG; Zipstream; multiple streams
PTZ: 360° endless pan; -90° to +45° tilt; 32x optical zoom (visual)
Durability: IP66, IK10, NEMA 4X, MIL-STD-810H
Power: 52–58 V DC, up to 185 W max

Upgrade Your Operations

Gain high-speed thermal coverage and long-range visual awareness with a hardened fixed-lens bispectral PTZ solution.

Properties

Model	AXIS Q8752-E Mk II 35 mm 30 fps Bispectral PTZ Camera (03053-001)
Product Type	Bispectral PTZ Camera
Image Sensor	Visual: 1/2.8” progressive scan CMOS; Thermal: Uncooled microbolometer 640x480, 17 µm, 8–14 µm
Lens	Visual: 4.3–137.6 mm varifocal, F1.4–4.0; Thermal: 35 mm athermalized, F1.2
Minimum Illumination	Color: 0.06 lux at 50 IRE, F1.4; B/W: 0.01 lux at 50 IRE, F1.4
Pan/Tilt Range	Pan: 360° endless; Tilt: -90° to +45°
Zoom	Visual: 32x optical + 12x digital (384x total); Thermal: Fixed focal (no digital zoom)
Video Compression	H.264, H.265, Motion JPEG
Resolution	Visual: Up to HDTV 1080p; Thermal: 640x480 sensor (scaled up to 800x600)
Frame Rate	Thermal: Up to 30 fps; Visual: Up to 50/60 fps in HDTV 1080p
Audio	One-way audio, mic/line input
Networking	RJ45 10/100/1000BASE-T; SFP slot
Storage	microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH (condensing)
Environmental Ratings	IP66, IK10, NEMA 4X, ISO 12944-6 C5, MIL-STD-810H
Power	52–58 V DC, typical 25 W, max 185 W
Dimensions	244 × 360 × 582 mm (9.5 × 14 × 23 in)
Weight	14.9 kg (32.8 lb)
Casing	Powder-coated aluminum; white NCS S 1002-B; glass (visual) and germanium (thermal) windows
Certifications	UL/cUL, CE, KC, VCCI, RCM, FCC, EN 55032 Class A

Specifications

Camera	Dual-channel bispectral PTZ with thermal and visual imaging; autofocus and auto-iris (visual)
Optics	Visual: 4.3–137.6 mm, F1.4–4.0, HFOV 58.5°–2.4°, VFOV 35°–1.3°; Thermal 35 mm: F1.2, HFOV 17°, VFOV 12.8°, near focus distance 31 m (102 ft)
Day/Night	Automatic IR-cut filter
Thermal Sensitivity	NETD < 50 mK
Shutter	1/66500 s to 2 s (visual)
PTZ Performance	Pan 0.05°–120°/s; Tilt 0.05°–65°/s; ±0.01°/s low-speed accuracy; 256 presets; guard tour; de-icing control
Compute	ARTPEC-7 SoC with Deep Learning Processing Unit (DLPU), 2 GB RAM, 512 MB Flash
Video Streaming	Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency mode
WDR / Image Enhancements	Forensic WDR up to 120 dB; dual-channel EIS; privacy masks; tone mapping; defogging
Audio	AAC-LC, LPCM, G.711, G.726, Opus; configurable bitrate
Network Protocols	IPv4/IPv6, HTTPS, HTTP/2, TLS, RTP/SRTP, RTSP, FTP/SFTP, SNMP v1/v2c/v3, DHCP, MQTT, LLDP, CDP
System Integration	VAPIX, ACAP, ONVIF G/M/S/T, one-click cloud connection, AXIS Camera Station compatibility
Event Triggers	Device status, I/O, motion, temperature states, PTZ events, storage health, MQTT
Event Actions	Notifications, video and audio recordings, PTZ presets, I/O toggles, overlays, illumination control, SNMP traps
Analytics	AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation AID PTZ, VMD, audio detection, advanced gatekeeper
Cybersecurity	Signed OS, secure boot, encrypted filesystem, TPM 2.0, brute-force delay protection, FIPS 140
Connectors	RJ45, SFP slot, 3.5 mm audio in, 4× configurable I/O, DC input
Storage	microSD/microSDHC/microSDXC; NAS support; AES-XTS-Plain64 256-bit encryption
Environmental	-40 °C to 60 °C; NEMA TS 2; wind load up to 45 m/s (100 mph) without weathershield; EPA 0.121 m²
Construction	Aluminum, IP66, IK10, NEMA 4X; UV-stabilized weathershield; long-life silicone wiper
Power	52–58 V DC, typical 25 W, max 185 W; power-loss recovery

Accessories

Included	Camera, installation guide, connector kit
Optional Accessories	AXIS Surveillance Cards, AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Washer Kit B, AXIS Cable 24 V DC/24–240 V AC22 mh, AXIS T8611 SFP Module LC.LX, AXIS T8612 SFP LC.SX, AXIS PT IR Illuminator Kit C, AXIS T99 Illuminator Bracket Kit A, DIN PS56 480 W Power Supply, AXIS T61 Audio & I/O Interface Series
