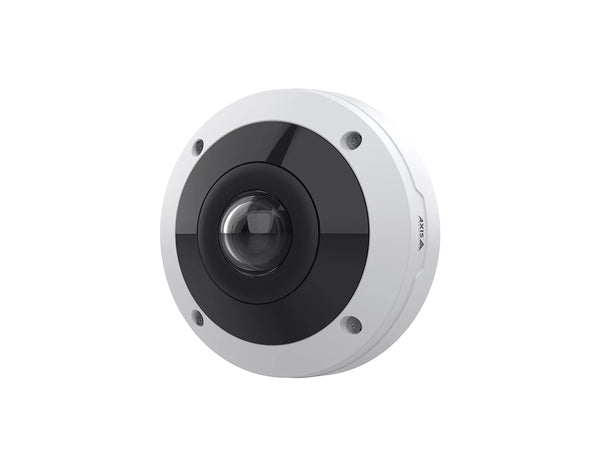

AXIS M4317-PLR 6MP Indoor/Outdoor Panoramic Camera (02833-001)

Name: AXIS M4317-PLR 6MP Indoor/Outdoor Panoramic Camera (02833-001)
Brand: Axis
Price: 816.0 USD
Availability: InStock

Part Number: 02833-001

Technical Details

6MP resolution, 360° panoramic view, IR up to 20 m, IK10/IP66, SoC:ARTPEC-8, PoE powered (IEEE 802.3af, Class 3)

$816.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Rugged 360° Protection with Advanced AI Analytics

The Axis 02833-001 Panoramic Camera M4317-PLR 6MP delivers complete 180° and 360° situational coverage for buses and high-vibration environments. Built on the ARTPEC-8 platform with deep learning analytics and OptimizedIR, it provides sharp, reflection-free imaging in any lighting condition. Designed to exceed industry transportation requirements, it ensures dependable security where durability and accuracy matter most.

Key Benefits & Features

6MP panoramic imaging: Capture crisp 360° or 180° overviews with up to 2160×2160 resolution for maximum scene awareness.
OptimizedIR illumination: Individually controlled IR LEDs provide up to 20 m visibility in complete darkness without reflections.
ARTPEC-8 with DLPU: Deep learning–powered analytics, including people and vehicle detection, for precise real-time insights.
Transit-grade durability: IP66, IK10, and NEMA 4X ratings protect against shock, vibration, dust, and moisture.
Flexible deployment: Digital roll, multiple dewarped views, and PoE+ support simplify installation and integration.

Ideal Use Cases

Public transportation surveillance (buses, shuttles, and rail vehicles)
360° coverage in entrances, corridors, and compact interior spaces
Rugged industrial or outdoor monitoring with harsh conditions
Smart analytics applications requiring deep learning at the edge
Fleet, depot, or logistic-focused security deployments

Technical Specifications

Resolution: Up to 2160×2160 at 50/60 fps
Sensor: 1/1.8" RGB CMOS, 6MP
Lens: 1.1 mm fixed focal, F2.2
Field of View: 182° horizontal / 182° vertical
IR Range: Up to 20 m with 850 nm LEDs
Minimum Illumination: 0.16 lux color, 0.03 lux B/W, 0 lux with IR
Analytics: AXIS Object Analytics, People/Vehicle detection
WDR: Forensic WDR up to 120 dB
Network Protocols: IPv4/IPv6, HTTPS, ONVIF G/M/S/T
Power: PoE+ (802.3af/at), 5.7–12.95 W
Durability: IK10, IP66, NEMA 4X, -40°C to 50°C operating
Storage: microSD/microSDHC/microSDXC & NAS

Upgrade Your Coverage with Intelligent 360° Security

Order today and secure clearer, smarter panoramic protection.

Properties

Model	AXIS M4317-PLR
Product Type	6 MP Panoramic Fisheye Network Camera
Image Sensor	1/1.8" Progressive Scan RGB CMOS
Lens	1.1 mm, F2.2, Fixed Iris, Fixed Focus, IR-Corrected
Field of View	182° Horizontal, 182° Vertical
Minimum Illumination	Color: 0.16 lux • B/W: 0.03 lux • 0 lux with IR
Infrared Illumination	850 nm IR LEDs, up to 20 m (65.6 ft)
Day/Night	Automatic IR-Cut Filter
Shutter Speed	1/33500 s to 0.2 s
WDR	Forensic WDR up to 120 dB
Video Compression	H.264, H.265, Motion JPEG
Max Resolution / FPS	2160 × 2160 up to 50/60 fps
Network Protocols	IPv4/IPv6, HTTPS, TLS 1.2/1.3, MQTT, SNMP v1/v2c/v3, RTSP, RTP, SRTP, SFTP, DHCP, LLDP, IEEE 802.1X
Storage Options	microSD/microSDHC/microSDXC, NAS
Analytics	AXIS Object Analytics, People Counter, Image Health Analytics, Metadata
Onboard AI	Deep Learning Processing Unit (DLPU)
Power	PoE IEEE 802.3af/at Class 3 (5.7 W typical / 12.95 W max)
Operating Conditions	-40 °C to 50 °C (Humidity 10–100% RH condensing)
Storage Conditions	-40 °C to 65 °C (5–95% RH non-condensing)
Ingress & Impact Rating	IP66, IK10, NEMA 4X
Dimensions	Ø149 mm × 70 mm
Weight	860 g
Certifications	CE, UL, FCC, IEC/EN 62368-1, TAA, ONVIF G/M/S/T

Specifications

Video Resolutions	Overview: 2160×2160 to 160×160 Panorama: 2560×1440 to 192×72 Double Panorama: 2560×1920 to 384×288 Quad View: 2560×1920 to 384×288
Frame Rates	360° overview: up to 50/60 fps With WDR + dewarping: up to 25/30 fps
Image Settings	Saturation, Contrast, Brightness, Sharpness, Tone Mapping, Local Contrast, Privacy Masks
Noise Reduction	2D + 3D Noise Reduction
Digital PTZ	Supports PTZ for panorama, corner, corridor, quad views
Audio Support	Two-way audio via Portcast Technology
I/O	1 Alarm Input / 1 Alarm Output (12 VDC, 25 mA)
Memory	2048 MB RAM / 8192 MB Flash
SoC	ARTPEC-8
Cybersecurity Features	Axis Edge Vault, Secure Boot, Signed OS, AES-XTS 256-bit SD Encryption, OAuth 2.0
Event Triggers	Device status, digital input, motion, tampering, storage warnings, scheduled events
Event Actions	Recordings, Notifications, SNMP traps, MQTT publish, Overlay text, IR control
IR Range	Up to 20 m (65.6 ft)
Startup Temperature	-30 °C
Supported Languages	EN, DE, FR, ES, IT, RU, CN, JP, KR, PT, PL, TR + others

Accessories

Included in the Box	Camera Terminal Block Connector Connector Guard Cable Gaskets Cable Hole Lid Owner Authentication Key Installation Guide
Optional Mounting Accessories	AXIS T94T02D Pendant Kit AXIS TM3204 Recessed Mount AXIS TM3206 Recessed Mount AXIS Mounts & Cabinets
Optional Installation Tools	AXIS T8415 Wireless Installation Tool
Optional Cosmetic Accessories	AXIS TM3814 Skin Cover (Black)
Storage Accessories	AXIS Surveillance Cards
