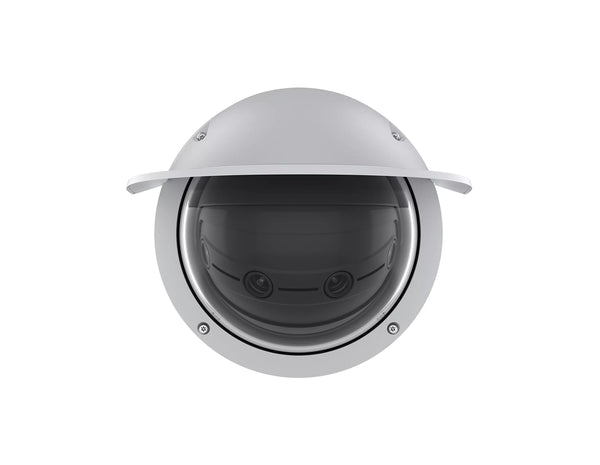

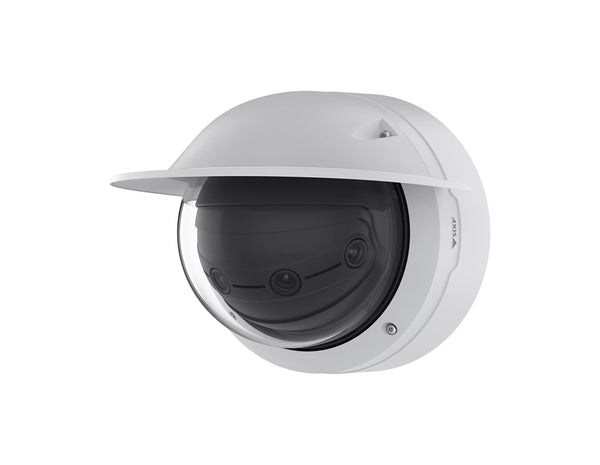

AXIS Q4809-PVE Panoramic Camera (02658-001)

AXIS Q4809-PVE Panoramic Camera (02658-001)

Name: AXIS Q4809-PVE Panoramic Camera (02658-001)
Brand: Axis
Price: 2587.0 USD
Availability: InStock

Part Number: 02658-001

Technical Details

26 MP AI-powered panoramic camera delivering seamless 180° coverage, lossless zoom, dual ARTPEC-8 SoC architecture with dedicated deep learning processing, built-in Axis Edge Vault cybersecurity, and rugged IP66/IP67 & IK10 protection for wide-area surveillance.

$2,587.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The AXIS Q4809-PVE Panoramic Camera delivers a seamless 180° overview with 26 MP resolution at full frame rate, ensuring uncompromised situational awareness for large-scale environments. Its advanced multisensor stitching, lossless zoom, Forensic WDR, and Lightfinder 2.0 technologies produce exceptionally sharp and usable footage across varied lighting conditions. Built on dual ARTPEC-8 SoCs with an integrated deep learning processing unit, it offers powerful on-edge analytics and efficient image processing.

Designed for demanding outdoor deployments, this rugged camera features IP66/IP67 weather protection, IK10 impact resistance, and NEMA 4X corrosion protection. Axis Edge Vault provides hardware-anchored cybersecurity with secure boot, signed OS, encrypted storage, TPM 2.0, and signed video. Remote pan/tilt/roll capabilities support fast and precise installation while maintaining full control over alignment and horizon straightening.

High-Detail 180° Panoramic Surveillance with AI-Powered Precision

Seamless 180° imaging delivers a cohesive panoramic view using four 12 MP sensors with distortion correction and horizon straightening.
26 MP at up to 30 fps ensures high-detail video capture suitable for wide-area monitoring and forensic review.
Lossless zoom enables detailed inspection of scenes without degrading image quality.
Dual ARTPEC-8 SoCs with DLPU support advanced analytics including human and vehicle classification, behavioral rules, and scene metadata.
Rugged outdoor design with IP66/IP67, IK10, and NEMA 4X ratings ensures durability in harsh conditions.
Zero-trust cybersecurity with Edge Vault, TPM 2.0, encrypted filesystem, and signed video protects against modern threats.

Ideal Use Cases

Perimeter and fence-line monitoring for industrial sites or critical infrastructure.
Wide-area coverage for campuses, airports, parking lots, and logistics hubs.
City surveillance requiring high-resolution, AI-supported analytics.
Large commercial facilities needing full situational awareness with minimal blind spots.
Harsh outdoor locations requiring corrosion resistance and high-impact durability.

Technical Specifications Summary

Image sensor: 4 × 12 MP 1/2.3” CMOS
Lens: 5.0 mm F1.7; 180° × 45° FOV
Video: Up to 30 fps; H.264/H.265/MJPEG; multi-view; Zipstream; Forensic WDR
Analytics: AXIS Object Analytics, Scene Metadata, AI-based classification
Audio: External mic/line-in; LPCM, AAC, G.711, G.726, Opus
Power: PoE 802.3af/at Type 2; 9.74 W typical
Durability: IP66/IP67, IK10, NEMA 4X
Storage: microSD/microSDHC/microSDXC with AES-XTS encryption; NAS

Upgrade Your Operations

Enhance wide-area situational awareness with seamless 180° coverage and powerful AI-driven analytics.

Properties

Model	AXIS Q4809-PVE Panoramic Camera (02658-001)
Product Type	Panoramic Camera
Image Sensor	4 × 12 MP 1/2.3” progressive scan RGB CMOS; pixel size 1.55 µm
Lens	5.0 mm F1.7; HFOV 180°; VFOV 45°; fixed iris
Minimum Illumination	Color: 0.1 lux at 50 IRE, F1.7; B/W: 0.03 lux at 50 IRE, F1.7
Shutter Speed	1/100000 s to 1/2 s
Camera Adjustment	Pan ±176°, tilt 20° to 88°, roll ±7°
SoC	ARTPEC-8 ×2 with deep learning processing unit (DLPU)
Frame Rate	Up to 25/30 fps (50/60 Hz) in all resolutions
WDR	Forensic WDR up to 120 dB
Audio	Automatic gain control; configurable duplex audio via network speaker pairing; external mic/line-in; optional 5 V mic power
Network	IPv4, IPv6 USGv6, ICMP, HTTP/HTTPS/HTTP2, TLS, FTP/SFTP, CIFS/SMB, SMTP, UPnP, mDNS, SNMP v1/v2c/v3, DNS/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP/RTSPS, TCP/UDP, IGMP, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog, IEEE 802.1X, 802.1AR, 802.1AE (MACsec)
Power	PoE IEEE 802.3af/at Type 2 Class 4; typical 9.74 W, max 19.1 W
Storage	microSD/microSDHC/microSDXC; AES-XTS-Plain64 encryption; NAS
Operating Conditions	-40 °C to 50 °C; startup -40 °C; installation -20 °C; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; 5–95% RH (non-condensing)
Casing	Aluminum, polycarbonate dome; IP66/IP67; IK10; NEMA 4X
Mounting	Bracket with junction box patterns (double-gang, single-gang, 4” square, 4” octagon); ¾” (M25) conduit entries
Weight	3320 g (7.3 lb)
Certifications	CSA, UL/cUL, BIS, CE, KC, VCCI, RCM, FCC, CISPR 32 Class A, EN 55035, EN 61000-6-1/-6-2, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, ETSI EN 303 645, FIPS 140-2 Level 2

Specifications

Camera	Automatic IR-cut filter; image settings: horizon straightening, saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, compression, text/image overlays, privacy masks, polygon privacy mask
Video	H.264 Baseline/Main/High; H.265 Main; Motion JPEG; resolutions 10240×2560 to 512×256; Zipstream; VBR/ABR/MBR; low-latency mode; >55 dB SNR; up to 20 streams; multi-view (6 cropped views + 2 predefined split views)
Image Processing	Forensic WDR, Lightfinder 2.0, 2D/3D noise reduction
Audio	External mic/line-in; optional 5 V mic power; AAC-LC, G.711, G.726, Opus, LPCM
Network & Protocols	(full list as above)
System Integration	VAPIX; ACAP; ONVIF G/M/S/T; radar/speaker/siren/light pairing; AXIS Camera Station compatible
Analytics	AXIS Object Analytics (humans, vehicles); scenarios: line crossing, object in area, time in area, crossline counting, occupancy, tailgating, PPE monitoring (beta), motion detection; AXIS Scene Metadata (humans, faces, vehicles, plates, clothing colors, positions)
Events	Device status, storage health, I/O, audio input, bitrate degradation, tampering, day/night mode, network lost, IP changes, fan failure, system ready
Event Actions	HTTP/HTTPS/TCP/email notifications; MQTT publish; I/O control; overlays; recording to SD/NAS; SNMP traps; media uploads; LED flashing
Cybersecurity	Axis Edge Vault; TPM 2.0; secure element; secure boot; signed OS; signed video; encrypted filesystem; IEEE 802.1X; MACsec; TLS 1.2/1.3; host-based firewall
Power	PoE 802.3af/at Type 2; 9.74 W typical, 19.1 W max; integrated power meter
Connectors	RJ45 1000BASE-T PoE; 3.5 mm mic/line-in; 2 × supervised I/O on terminal block (12 V DC out, 50 mA)
Storage	microSD/microSDHC/microSDXC; AES-XTS-Plain64 encryption; NAS
Environmental	-40 °C to 50 °C; startup -40 °C; installation -20 °C; humidity 10–100% RH (condensing); IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; NEMA 4X
DORI Range	Detect 130 m; Observe 51.6 m; Recognize 26 m; Identify 13 m
Dimensions	EPA: 0.038 m² (0.12 ft²)

Accessories

Included	Camera, weathershield, installation guide, drill template, connector guard, cable gaskets, conduit adaptor, IO connector, owner authentication key
Optional Accessories	AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards
