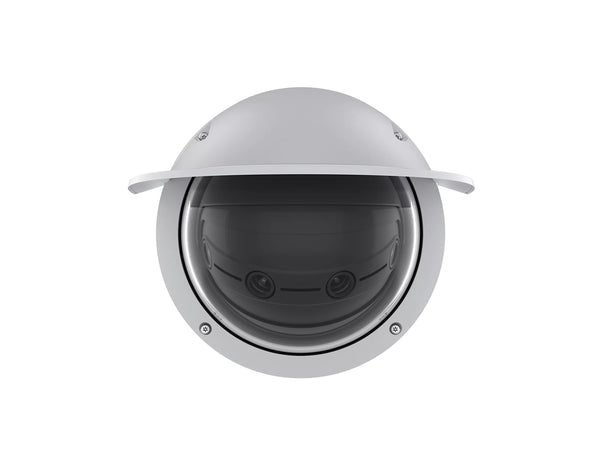

AXIS Q3839-PVE Panoramic Camera (02657-001)

AXIS Q3839-PVE Panoramic Camera (02657-001)

Name: AXIS Q3839-PVE Panoramic Camera (02657-001)
Brand: Axis
Price: 2587.0 USD
Availability: InStock

Part Number: 02657-001

Technical Details

29 MP multisensor camera, seamless 180° panoramic coverage, deep learning AI analytics, Axis Edge Vault cybersecurity, Forensic WDR, Lightfinder 2.0, IP66/IP67/IK10 outdoor rated.

$2,587.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Seamless 180° Panoramas with Advanced AI

The AXIS Q3839-PVE Panoramic Camera is a high-performance multisensor device designed to provide complete situational awareness without blind spots. By seamlessly stitching images from four 8.3 MP sensors, it delivers a cohesive 29 MP 180° panoramic view at a smooth 30 frames per second. Powered by dual ARTPEC-8 System-on-Chips (SoC) and a dedicated Deep Learning Processing Unit (DLPU), this camera runs advanced analytics on the edge, enabling precise classification of humans and vehicles in real-time.

Key Benefits & Features

Complete Situational Awareness: Achieve a seamless 180° horizontal and 90° vertical field of view with 29 MP resolution, eliminating blind spots common in single-sensor wide-angle cameras.
Intelligent Object Analytics: Pre-installed AXIS Object Analytics utilizes deep learning to detect, classify, and track objects (humans, cars, buses, trucks, bikes) with minimal false alarms.
Superior Image Quality: Features Lightfinder 2.0 for color fidelity in low light, Forensic WDR (120 dB) for handling complex lighting, and Horizon Straightening to correct visual distortion.
Lossless Zoom: Allows operators to zoom into the stitched image without compromising sharpness, ensuring forensic details are preserved.
Robust Cybersecurity: Built on the Axis Edge Vault platform, featuring a FIPS 140-2 Level 2 certified TPM 2.0 module, signed OS, and secure boot to protect against cyber threats and supply chain tampering.
Rugged Outdoor Design: Enclosed in an IP66/IP67 and NEMA 4X rated aluminum casing with an IK10 impact-resistant dome, ready for extreme temperatures ranging from -40 °C to 50 °C.
Efficient Installation: Integrated remote pan, tilt, and roll functionality enables fast and cost-effective physical adjustment directly from the software interface.

Ideal Use Cases

City surveillance and public squares
Airport terminals and transportation hubs
Perimeter protection for critical infrastructure
Large university campuses and schoolyards
Stadiums and event venues requiring crowd monitoring
Logistics centers and parking lots

Technical Highlights

Sensors: 4x 1/1.8" Progressive Scan RGB CMOS
Max Resolution: 7552 x 3776 pixels
Video Compression: H.264, H.265, and Motion JPEG with Axis Zipstream
Power: PoE Type 2 Class 4 (Max 19.1 W)
Storage: Edge storage via microSD card slot (AES-XTS-Plain64 256bit encryption supported)
Audio: Two-way audio capable via 3.5mm input and network speaker pairing

Secure Your Perimeter with Next-Gen Panoramic Vision

Order the AXIS Q3839-PVE today to ensure comprehensive coverage, superior forensic detail, and industry-leading cybersecurity for your facility.

Properties

Model	AXIS Q3839-PVE Panoramic Camera (02657-001)
Product Type	Multisensor Panoramic Camera
Image Sensor	4 × 8.3 MP 1/1.8" progressive scan RGB CMOS, 2.0 µm pixel size
Lens & Field of View	4.6 mm, F1.8 fixed iris; 180° horizontal, 90° vertical coverage
Minimum Illumination	Color: 0.1 lux at 50 IRE, F1.8; B/W: 0.03 lux at 50 IRE, F1.8
Day/Night	Automatic IR-cut filter
Resolution	Max: 7552 x 3776; Min: 512 x 256
Frame Rate	Up to 25/30 fps (50/60 Hz) in all resolutions
Video Compression	H.264 (Baseline, Main, High), H.265 (Main), Motion JPEG; Axis Zipstream technology
Wide Dynamic Range	Forensic WDR (up to 120 dB depending on scene)
System on Chip	Dual ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Memory	2 × 4096 MB RAM, 8192 MB Flash
Audio Features	Two-way audio support, automatic gain control, network speaker pairing
Audio I/O	3.5 mm mic/line in, digital audio input, network speaker pairing output
Network Protocols	IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Secure syslog, IEEE 802.1X
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4; Typical 9.74 W, Max 19.1 W
Connectors	Shielded RJ45 1000BASE-T PoE; 3.5 mm mic/line in; Terminal block for 2 supervised I/O (12 V DC output, max 50 mA)
Edge Storage	Support for microSD/microSDHC/microSDXC card; SD card encryption (AES-XTS-Plain64 256bit); NAS recording
Operating Conditions	-40 °C to 50 °C (-40 °F to 122 °F); Max NEMA TS 2 temp 74 °C (165 °F); Start-up -40 °C (-40 °F)
Casing & Ratings	Aluminum casing, polycarbonate dome/sunshield; IP66/IP67, NEMA 4X, IK10 rated; Color: White NCS S 1002-B
Dimensions & Weight	Depth: 134 mm (5.28 in), Diameter: 228 mm (8.97 in); 3320 g (7.3 lb)
Mounting	Mounting bracket with junction box holes (double-gang, single-gang, 4" square/octagon); 3/4" (M25) conduit side entries
Analytics	AXIS Object Analytics (Human/Vehicle classification), Scene Metadata, Video Motion Detection, Tampering alarm, Audio detection
Cybersecurity	Axis Edge Vault, Signed OS, Secure Boot, TPM 2.0 (FIPS 140-2 Level 2), Signed Video, Encrypted Filesystem
Sustainability	PVC free, BFR/CFR free; 32.6% renewable carbon-based plastic content

Specifications

Imaging & Optics	Four 8.3 MP 1/1.8" sensors stitched for 180° panoramic view; 4.6 mm F1.8 lens; Digital PTZ with lossless zoom; Horizon straightening; Lightfinder 2.0.
Video Processing	Dual ARTPEC-8 SoC; Up to 20 configurable streams; Multi-view streaming (up to 8 cropped areas); Image settings include saturation, contrast, brightness, sharpness, white balance, tone mapping, and privacy masks (polygon supported).
Audio Capabilities	Full duplex audio; Encodings: 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz.
Event Management	Triggers: Device status, I/O, Motion, Audio, DTMF, Analytics, Schedule; Actions: Notification (Email/HTTP/TCP), Record to edge/NAS, Toggle I/O, SNMP trap, LED activation, MQTT publish.
Deep Learning Analytics	AXIS Object Analytics: Detects humans and vehicles (cars, buses, trucks, bikes); Scenarios include line crossing, object in area, time in area, crossline counting, occupancy, tailgating, and PPE monitoring (BETA).
Security	Hardware-based Axis Edge Vault; Axis Cryptographic Module (FIPS 140-2 level 1); TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2); Secure Element (CC EAL 6+); Brute force delay protection; IEEE 802.1AE (MACsec).
DORI Distance (EN-62676-4)	Detect: 88.3 m (289.6 ft); Observe: 35 m (114.8 ft); Recognize: 17.7 m (58.1 ft); Identify: 8.8 m (28.9 ft).
Approvals	EMC: CISPR 32 Class A, EN 55035, FCC Part 15 Subpart B Class A; Safety: IEC/EN/UL 62368-1; Environment: IEC 60068-2, IP66/IP67, IK10, NEMA 4X.

Accessories

Included Accessories	Camera, weathershield, installation guide, drill template, connector guard, cable gaskets, conduit adaptor, I/O connector, owner authentication key
Optional Accessories	AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards
