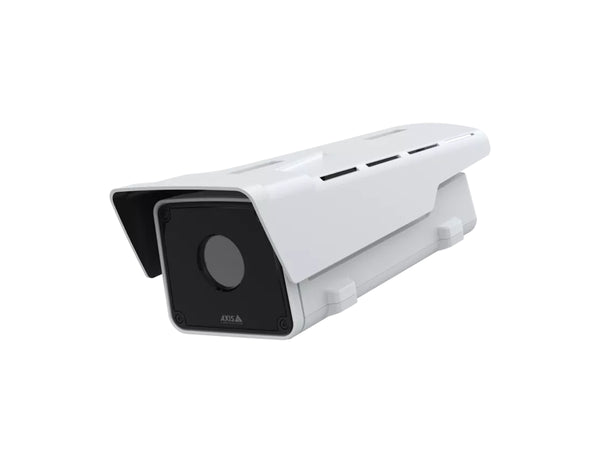

AXIS Q2112-E 60 mm 8.3 fps Thermal Camera (02611-001)

AXIS Q2112-E 60 mm 8.3 fps Thermal Camera is designed for outstanding high-resolution detection and verification in demanding perimeter security applications. Its 640×480 thermal sensor combined with a 60 mm F1.2 telephoto lens delivers long-range coverage with excellent detail and contrast, even in total darkness or challenging weather conditions. With extremely high thermal sensitivity of <20 mK, it helps reduce false alarms and improves detection reliability across wide outdoor areas.

Built on the powerful ARTPEC-8 platform with a dedicated deep learning processing unit, this camera supports advanced analytics at the edge, including AXIS Perimeter Defender and third-party ACAP applications. Edge-to-edge technology makes it easy to pair with Axis network speakers and other devices for automated deterrence workflows. Rugged IP66/IP67, IK10, and NEMA 4X ratings, together with extensive environmental and MIL-STD-810H testing, ensure dependable performance in harsh environments and extreme temperatures.

High-Resolution Thermal Imaging for Long-Range, Low-False-Alarm Perimeter Protection

• High-resolution 640×480 thermal sensor with a 60 mm telephoto lens delivers precise long-range detection and verification over extended distances.
• Exceptional thermal sensitivity of <20 mK enables clear temperature contrast and supports a low false alarm rate in complex outdoor scenes.
• ARTPEC-8 with DLPU provides powerful on-edge processing for advanced analytics, including AXIS Perimeter Defender and third-party ACAP apps.
• Rugged IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H compliance ensures reliable operation in extreme temperatures, vibration, and corrosion-prone environments.
• Comprehensive cybersecurity with Axis Edge Vault, TPM 2.0, secure boot, signed firmware, and encrypted storage safeguards devices and data.
• Extensive protocol and ONVIF support simplifies integration with AXIS Camera Station and leading third-party VMS platforms.
• Edge-to-edge integration with Axis network audio solutions enables automated deterrence scenarios triggered by thermal analytics.

Ideal Use Cases

• Perimeter protection for critical infrastructure such as power plants, substations, and utility sites requiring long stand-off detection.
• Airport and seaport security where reliable detection is needed in low-visibility, haze, or complete darkness.
• Border and wide-area monitoring where long-range thermal imaging reduces the need for dense camera deployments.
• Heavy industrial facilities and logistics hubs where high thermal sensitivity supports early detection of intrusions and abnormal activity.
• High-security campuses and restricted zones that demand 24/7 privacy-preserving detection with analytics-driven alerting.

Technical Specifications Summary

• Image sensor: Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
• Lens: Athermalized 60 mm F1.2; HFOV 10°; VFOV 7.7°; near focus distance 84 m (276 ft)
• Sensitivity: NETD <20 mK @25 °C, F1.0
• Video: H.264/H.265/Motion JPEG; 640×480 scalable to 800×600; up to 8.3 fps; up to 20 configurable streams; Zipstream; EIS
• Audio: Two-way audio with external mic support, line in/out, network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
• Power: PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC input supported
• Connectors: RJ45 10/100/1000 PoE; 4 configurable I/Os; 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422; DC input
• Operating conditions: -40 °C to 60 °C; up to 74 °C per NEMA TS 2; 10–100% RH (condensing)
• Durability: IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H tests (including vibration and shock methods for 60 mm variant)
• Cybersecurity: Axis Edge Vault with TPM 2.0, secure boot, signed firmware, encrypted filesystem, 802.1X, MACsec, TLS v1.2/v1.3

Upgrade Your Operations

Deploy this high-resolution thermal camera to strengthen long-range perimeter protection and enhance analytics-driven security responses.
