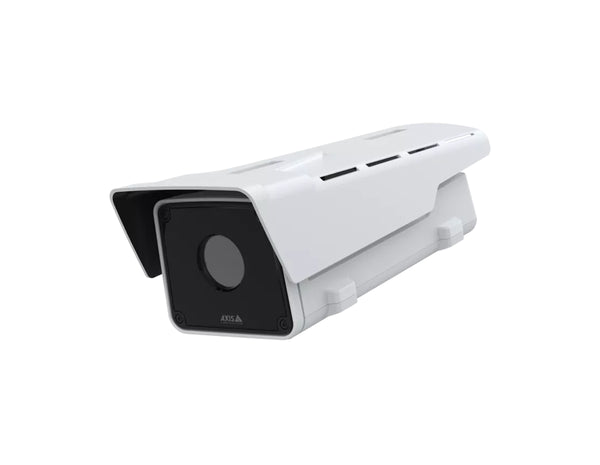

AXIS Q2112-E 35 mm 30 fps Thermal Camera (02610-001)

The AXIS Q2112-E 35 mm 30 fps Thermal Camera delivers fast, high-resolution thermal imaging suitable for dynamic perimeter monitoring and real-time detection scenarios. Its 640×480 thermal sensor combined with a 35 mm F1.2 athermalized lens provides clear thermal contrast and reliable mid-to-long-range detection, while the increased 30 fps frame rate improves object tracking and motion accuracy in fast-moving environments.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, this camera supports advanced analytics directly on the edge, enabling automated detection, classification, and event-driven workflows. With rugged IP66/IP67, IK10, and NEMA 4X protection and extensive environmental and MIL-STD-810H testing, it is designed for dependable 24/7 operation in extreme conditions. Its strong cybersecurity foundation and wide system integration support make it ideal for modern perimeter defense deployments.

High-Speed Thermal Imaging for Responsive Mid-to-Long-Range Perimeter Protection

• High-resolution 640×480 thermal sensor with 30 fps delivers smooth thermal video and enhanced motion tracking.
• 35 mm athermalized lens provides optimized detection coverage for mid-to-long-range applications.
• <20 mK thermal sensitivity supports clear contrast and improved detection in rain, fog, smoke, and total darkness.
• ARTPEC-8 with DLPU enables advanced analytics such as AXIS Perimeter Defender and 3rd-party ACAP apps.
• Outdoor-ready durability with IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings.
• Strong cybersecurity including TPM 2.0, secure boot, encrypted storage, and signed firmware.
• Edge-to-edge system integration with Axis audio devices for automated deterrence workflows.

Ideal Use Cases

• Fast-response perimeter detection and tracking for industrial and critical infrastructure sites.
• Airports, seaports, and large campuses requiring smooth thermal video for moving objects.
• Border and wide-area monitoring in low-visibility environments.
• Outdoor logistics zones where high frame rate improves operational awareness.
• Secure compounds needing privacy-preserving, analytics-driven thermal surveillance.

Technical Specifications Summary

• Image sensor: 640×480 uncooled microbolometer, 17 μm
• Lens: Athermalized 35 mm F1.2; HFOV 17°; VFOV 13°; near focus 33 m
• Sensitivity: NETD <20 mK @25 °C
• Video: Up to 30 fps; H.264/H.265/MJPEG; scalable to 800×600
• Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
• Power: PoE Type 2 Class 4; 10–28 V DC
• Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
• Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
• Cybersecurity: TPM 2.0, secure boot, encrypted filesystem, MACsec, 802.1X

Upgrade Your Operations

Strengthen your perimeter security with high-speed, analytics-ready thermal imaging that performs in all conditions.
