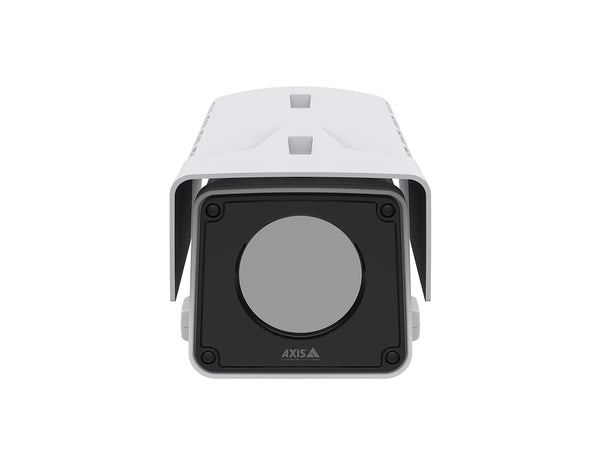

AXIS Q2111-E 60 mm 30 fps Thermal Camera (02600-001)

AXIS Q2111-E 60 mm 30 fps Thermal Camera (02600-001)

Name: AXIS Q2111-E 60 mm 30 fps Thermal Camera (02600-001)
Brand: Axis
Price: 6774.0 USD
Availability: InStock

Part Number: 02600-001

Technical Details

Reliable long-range thermal detection with a 60 mm F1.2 lens, <20 mK sensitivity, ARTPEC-8 SoC with DLPU, built-in analytics, audio features, and robust IP66/IP67 & IK10 protection.

$6,774.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

High-Sensitivity 60 mm Thermal Imaging for Long-Range Protection

The AXIS Q2111-E 60 mm 30 fps Thermal Camera delivers precise long-range detection using a powerful 60 mm F1.2 lens, an extremely sensitive <20 mK thermal sensor, and a 30 fps thermal imaging pipeline for smooth situational awareness. Built on the ARTPEC-8 system-on-chip with a deep learning processing unit, it supports high-performance AXIS analytics and third-party ACAP applications for advanced perimeter security.

Designed for harsh outdoor environments, this robust camera features IP66/IP67 and IK10 protection, NEMA 4X compliance, and a wide operating temperature range. With four configurable I/O ports, dual RS485/RS422 interfaces, audio in/out, encrypted edge storage, and edge-to-edge speaker pairing, it provides maximum installation flexibility and system integration capabilities.

Key Benefits

High-performance 60 mm F1.2 thermal lens enabling reliable long-range detection
Ultra-high thermal sensitivity (<20 mK) for crisp imaging in low contrast and severe weather
ARTPEC-8 SoC with DLPU for advanced analytics and real-time detection
Up to 30 fps thermal imaging for smooth live monitoring
Four I/O ports, RS485/RS422, and edge-to-edge speaker pairing for integration flexibility
IP66/IP67, IK10, NEMA 4X-rated housing for maximum outdoor durability
Enterprise-level cybersecurity with Axis Edge Vault and TPM 2.0

Ideal Use Cases

Critical infrastructure and utility perimeter protection
24/7 long-range surveillance in low-visibility environments
Border, seaport, and wide-area thermal monitoring
High-security environments requiring advanced analytics
Thermal-based intrusion detection using AXIS Perimeter Defender and ACAP apps

Technical Specifications Summary

Image sensor: 384×288 uncooled microbolometer, 17 μm
Lens: 60 mm F1.2; HFOV 6°; VFOV 4.7°; minimum focus distance 84 m
Thermal sensitivity: NETD <20 mK @ 25 °C
Video: H.264/H.265/Motion JPEG; up to 30 fps; Zipstream; 20 configurable streams
Audio: Two-way audio, mic/line in, line out; AAC-LC, LPCM, G.711, G.726, Opus
Interfaces: RJ45 PoE, 4× I/O, RS485/RS422, audio I/O, DC input
Storage: microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption; NAS
Environmental: -40 °C to 60 °C; IP66/IP67; IK10; NEMA 4X; MIL-STD-810H
Cybersecurity: Axis Edge Vault with TPM 2.0, secure boot, signed firmware/video

Upgrade Your Operations

Enhance long-range perimeter security with high-precision thermal imaging, advanced analytics, and enterprise-grade cybersecurity in a ruggedized outdoor camera.

Properties

Model	AXIS Q2111-E 60 mm 30 fps Thermal Camera (02600-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 384×288 pixels, 17 μm; spectral range 8–14 μm
Lens	60 mm, F1.2; horizontal field of view 6°; vertical field of view 4.7°; minimum focus distance 84 m
Sensitivity	NETD <20 mK @ 25 °C, F1.0
System on Chip	ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Frame Rate	Up to 30 fps
Power	Power over Ethernet IEEE 802.3af/802.3at Type 2 Class 4; typical 5.6 W / max 25.5 W; 10–28 V DC (typical 4.1 W / max 25.5 W)
Connectors	RJ45 10/100/1000 Mbps PoE; 4× configurable I/O (2 supervised, 2 unsupervised); RS485/RS422; 3.5 mm mic/line in; 3.5 mm line out; DC input
Storage	microSD/microSDHC/microSDXC card with AES-XTS-Plain64 256-bit encryption; NAS recording supported
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F) ; humidity 10–100% RH (condensing); max 74 °C according to NEMA TS 2 (2.2.7)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F) ; humidity 5–95% RH (non-condensing)
Casing	Aluminum housing; IP66/IP67, IK10 (excluding window), NEMA 4X; white NCS S 1002-B
Dimensions	See datasheet dimension drawing; Effective Projected Area (EPA) 0.05 m²
Weight	3.5 kg (7.7 lb)
Certifications	CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4

Specifications

Video	H.264 Baseline/Main/High, H.265 Main, Motion JPEG; sensor 384×288 scaled to 768×576; Axis Zipstream; up to 20 streams; VBR/ABR/MBR control
Image Settings	Contrast, brightness, sharpness, local contrast, exposure zones, compression, rotation 0°/90°/180°/270°, corridor format, mirroring, text/image overlay, polygon privacy masks, multiple color palettes, electronic image stabilization
Audio	Two-way audio (half/full duplex); external mic input with optional 5 V power; digital input with optional 12 V ring power; unbalanced line input; line output; 10-band EQ; edge-to-edge speaker pairing
Audio Encoding	24-bit LPCM; AAC-LC 8/16/32/44.1/48 kHz; G.711 PCM 8 kHz; G.726 ADPCM 8 kHz; Opus 8/16/48 kHz
Network Protocols	IPv4/IPv6, HTTP/HTTPS, HTTP/2, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP/SRTP/RTSPS, TCP, UDP, IGMP, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog, Link-Local
Integration	ONVIF Profiles G/M/S/T; VAPIX API; ACAP third-party apps; one-click cloud; compatible with AXIS Camera Station and major VMS
Event Handling	Audio detection, audio clip events, device temperature status, IP changes, network loss, digital/virtual inputs, storage events, MQTT subscribe, schedule, video tampering, bitrate degradation; actions: play/stop audio, toggle I/O, MQTT publish, notifications, pre/post-alarm buffer, SD/NAS recording, SNMP traps, status LED, upload via FTP/SFTP/HTTP/HTTPS/email
Analytics	AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm, audio detection; supports AXIS Perimeter Defender and ACAP analytics
Cybersecurity	Axis Edge Vault with TPM 2.0, secure element, secure boot, signed firmware/video, encrypted filesystem (AES-XTS-Plain64 256-bit), secure keystore, Axis device ID; IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2/1.3, NTS, X.509 PKI, host-based firewall, brute-force protection
Environmental	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10 (excluding window); ISO 21207 Method B; MIL-STD-810H; NEMA 250 Type 4X; NEMA TS 2
Pan/Tilt Support	Supports guard tour with up to 256 presets when used with AXIS TQ1818-E Positioning Unit (sold separately)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Accessories

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional accessories	AXIS TQ1818-E Positioning Unit, AXIS TQ1003-E Wall Mount
