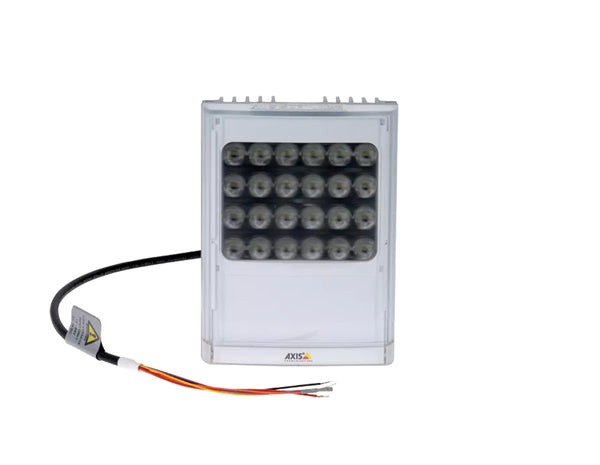

AXIS T90D35 W-LED (01217-001)

AXIS T90D35 W-LED is engineered to provide strong, uniform white-light illumination tuned for professional surveillance. Its modular lens system allows installers to match illumination spread with the camera’s field of view and deployment distance, minimizing light wastage and improving scene clarity. With rugged environmental protection and power-efficient LED performance, it ensures reliable operation in challenging climates and demanding security environments.

Available in both PoE and AC/DC variants, the illuminator’s control interface enables efficient management of power levels, photocell sensitivity, and timed activation for optimized energy use.

Optimized Long-Range White-Light Illumination for Professional Surveillance

• Interchangeable beam-angle lenses for precise illumination control
• Power-efficient 6000 K LEDs delivering up to 3727 lumens
• PoE or AC/DC power flexibility to fit existing infrastructure
• Extreme temperature resilience from −50 °C to 50 °C (−58 °F to 122 °F)
• IK09 and IP66 construction for harsh outdoor environments
• Remote adjustments for photocell sensitivity, power level, and timing

Ideal Use Cases

• Perimeter and fence-line surveillance
• Industrial and logistics yards
• Parking facilities and access control points
• High-security government, defence, and critical-asset monitoring

Technical Specifications Summary

• Illumination angle: 10° × 10°, 35° × 10°, 60° × 25°, 80° × 30°, optional 120° × 50°
• Illumination distance: up to 180 m (591 ft) depending on lens
• LED color temperature: 6000 K white light
• Luminous power: 3727 lm
• Power options: 12–24 V AC/DC or High-Power PoE (60 W)
• Environmental protection: IP66, IK09
• Operating range: −50 °C to 50 °C (−58 °F to 122 °F)

Upgrade Your Operations

Enhance nighttime visibility with precision-engineered white-light illumination.
