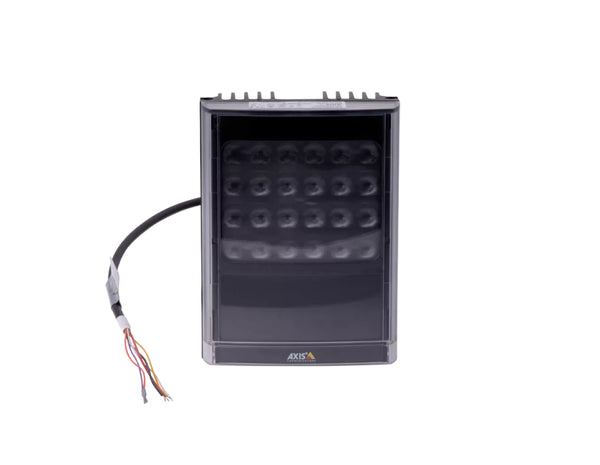

The AXIS T90D30 IR-LED Illuminator is designed to provide precisely directed infrared lighting for night-time and low-light surveillance, minimizing foreground washout while ensuring long-range illumination. Its interchangeable lenses allow lighting angle optimization to match multiple field-of-view configurations, making it highly adaptable for different installation scenarios.
With durable IP66 and IK09 construction, extreme temperature tolerance from -50 to 50 °C (-58 to 122 °F), and multiple mounting options, this illuminator delivers reliable, maintenance-free performance for both indoor and outdoor use. The power flexibility—with PoE or AC/DC—ensures easy integration with existing infrastructure.
Precision IR Illumination with Flexible Power and Lens Configurations
- Long-range IR coverage up to 350 m (1148 ft) for extended surveillance distance.
- Interchangeable beam-angle lenses for exact illumination alignment.
- Rugged IP66 and IK09 protection for reliable outdoor performance.
- Flexible AC/DC or High-Power PoE power options.
- Comprehensive installation compatibility: poles, walls, ceilings, and housings.
- Integrated control features including adjustable photocell sensitivity and power output.
Ideal Use Cases
- Perimeter and fence-line monitoring over long distances.
- Industrial and logistics yard surveillance.
- Parking areas and large-lot security.
- Border detection and restricted-access monitoring.
- Any environment requiring optimized nocturnal imaging with Axis network cameras.
Technical Specifications Summary
- IR Output: 850 nm semi-covert illumination
- Beam Angles: 10° / 35° / 60° / 80° / 120° (with lenses)
- Power Input: 12–24 V AC/DC or PoE (60 W)
- Consumption: AC/DC max 46 W; PoE max 49 W
- Operating Temp: -50 to 50 °C (-58 to 122 °F)
- Cable Length: 2.5 m (8.2 ft)
- Size and Weight: 135 x 180 x 68 mm (5 x 7 x 3 in), 1.65 kg (3.61 lb)
- Environmental Class: IP66 and IK09
Upgrade Your Operations
Deploy precision IR lighting for unmatched night-time surveillance performance.
