Build Smarter Embedded Surveillance with Edge AI

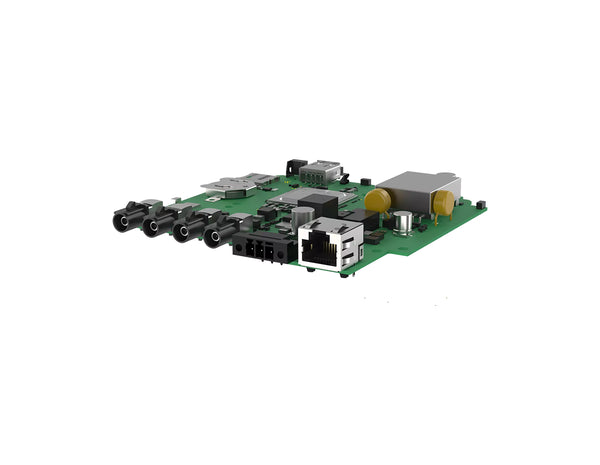

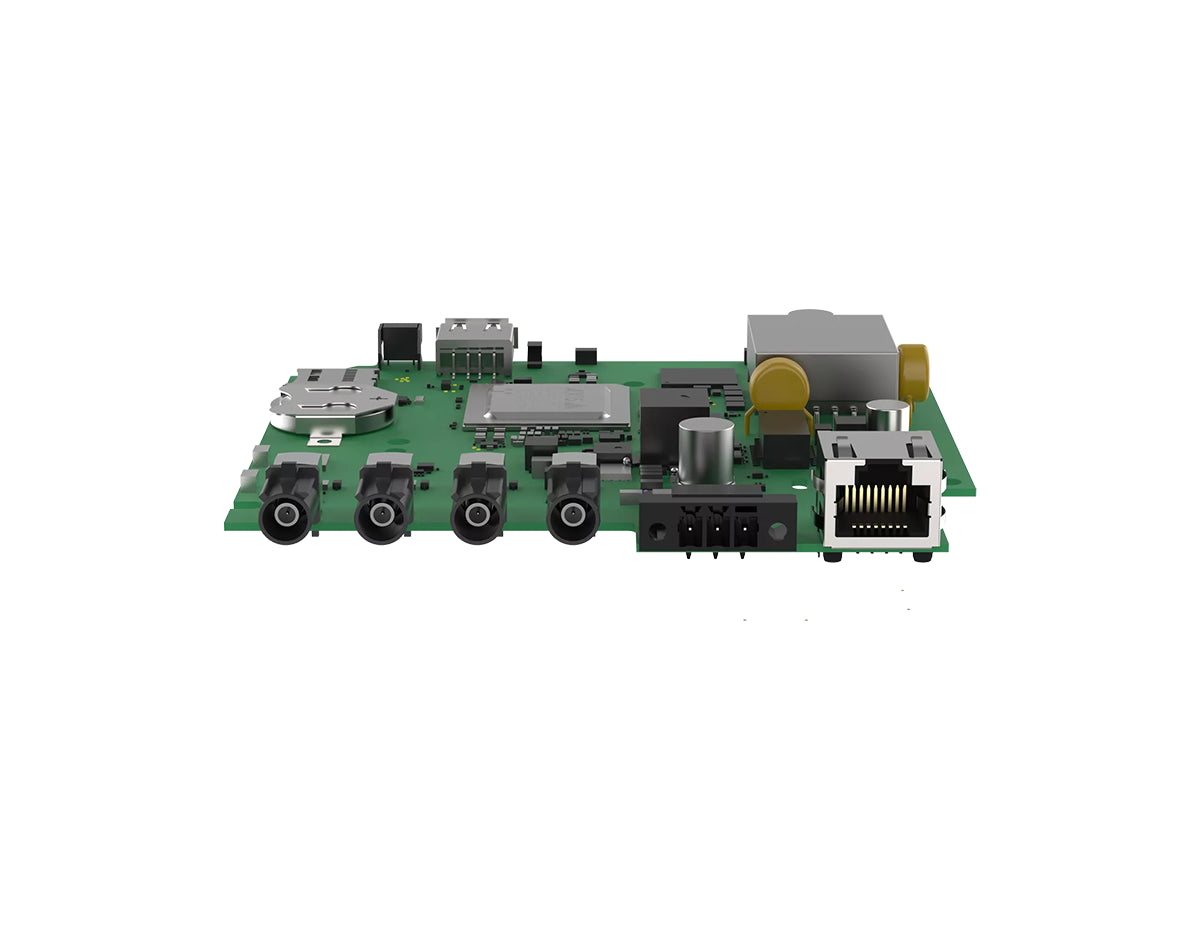

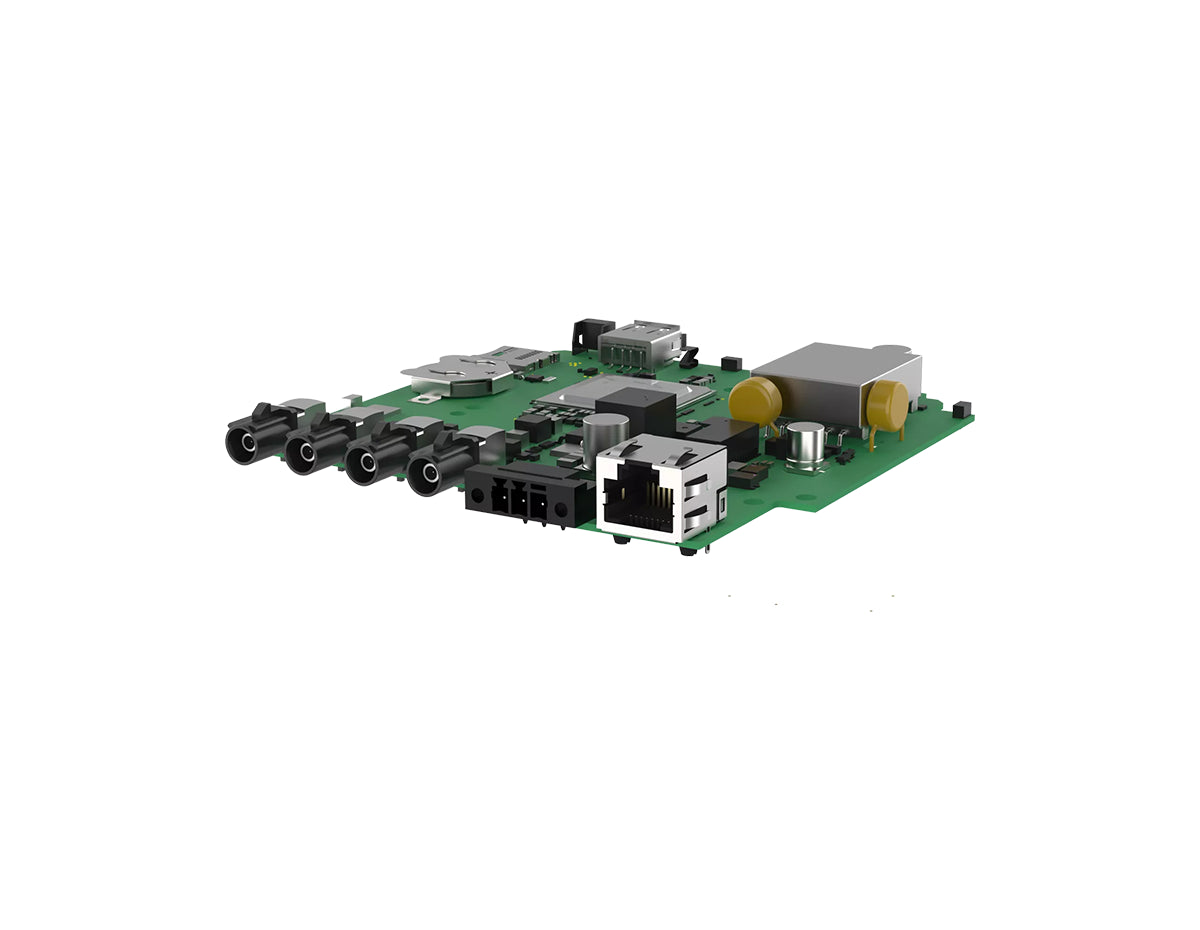

The AXIS F9104-B Mk II Main Unit is a compact 4-channel barebone video main unit built for advanced integration into security, transportation, industrial, and OEM systems. Designed for use with up to four compatible Axis sensor units, it combines high-resolution video, edge-based AI analytics, and hardware-backed cybersecurity in a board-level form factor.
Powered by the ARTPEC-8 system-on-chip and a deep learning processing unit, this Axis main unit supports intelligent event detection, efficient streaming, and secure device operation directly at the edge.
Key Benefits & Features
Integration-Ready Video Platform
- 4-channel architecture: Connect up to four compatible sensor units for flexible multi-view surveillance from one main unit.
- AI-based edge analytics: Built-in DLPU supports AXIS Object Analytics for detecting, classifying, tracking, and counting people and vehicles.
- Secure FAKRA connections: Four FAKRA sensor connectors help support stable and secure installation in embedded applications.
- Advanced video performance: Supports H.264, H.265, Motion JPEG, Axis Zipstream, multiple streams, and controllable bitrate options.
- Hardware-backed cybersecurity: Axis Edge Vault, secure boot, signed OS, signed video, encrypted filesystem, and TPM-based key storage protect device integrity.
Ideal Use Cases
- OEM security products requiring a UL-recognized barebone video component.
- Transportation, kiosk, ATM, and embedded surveillance installations.
- Multi-sensor monitoring where discreet camera placement is required.
- Edge analytics deployments for people, vehicle, occupancy, and line-crossing events.
- Enterprise video systems using Axis Camera Station or compatible VMS platforms.
Technical Specifications
- Product Type: 4-channel barebone main unit
- System-on-Chip: ARTPEC-8
- Compute Capability: Deep learning processing unit
- Memory: 4096 MB RAM, 8192 MB flash
- Video Compression: H.264, H.265, Motion JPEG
- Maximum Resolution: Up to 3840 x 2160 8 MP, sensor dependent
- Sensor Connectors: 4 x FAKRA for compatible Axis sensor units
- Network Interface: RJ45 10BASE-T, 100BASE-TX, 1000BASE-T with PoE
- Power: PoE IEEE 802.3af/802.3at Type 2 Class 4 or 10-48 VDC
- Storage: microSD, microSDHC, microSDXC, and NAS recording support
- Operating Temperature: -40 deg C to 60 deg C
- Weight: 115 g
Upgrade Embedded Video Intelligence
Choose the AXIS F9104-B Mk II Main Unit for secure, AI-ready multi-sensor video integration. Order today.
