Model: | XENPAK-10GB-SR |
Detail: | The XENPAK-10GB-SR is a high-performance optical transceiver designed for use with 10 Gigabit Ethernet networks. It supports short-range connectivity with a maximum distance of up to 300 meters over multimode |
Price: | $80.00 |
Condition: | Brand New Sealed |
Availability: | IN STOCK |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

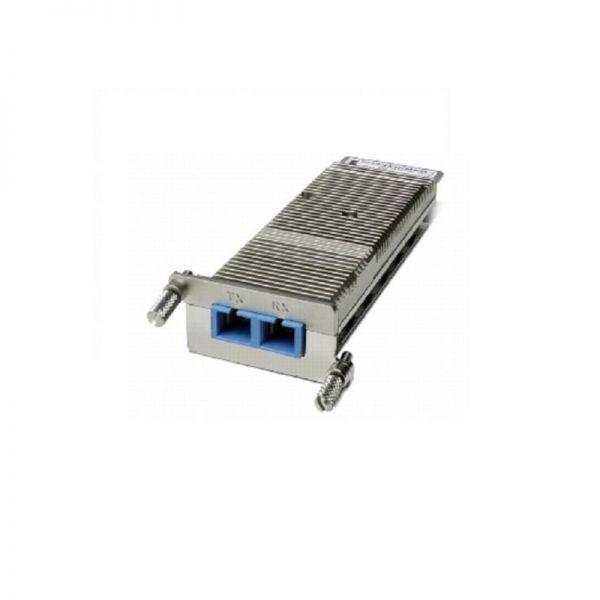

The XENPAK-10GB-SR is a high-performance optical transceiver designed for use with 10 Gigabit Ethernet networks. It supports short-range connectivity with a maximum distance of up to 300 meters over multimode fiber, making it an ideal solution for data center and campus networking environments. The XENPAK-10GB-SR provides reliable and high-speed data transfer rates of up to 10 Gbps, ensuring fast and efficient data transmission. Its hot-swappable design makes it easy to install and manage, while its compact size ensures optimal use of space in network equipment. The XENPAK-10GB-SR is compatible with a wide range of Cisco networking equipment, providing businesses with flexibility in their network design. Whether you need to upgrade an existing network or build a new one, the XENPAK-10GB-SR is an ideal choice for businesses seeking reliable and high-speed connectivity in their networking infrastructure.
CAB-GELX-625= | Mode conditioning patch cable 62.5um, dual SC connectors |
CAB-MCP50-SC= | Mode conditioning patch cable 50um, dual SC connectors |
CAB-INF-28G-1= | 1 m cable for 10GBase-CX4 module |
CAB-INF-28G-5= | 5 m cable for 10GBase-CX4 module |
CAB-INF-28G-10= | 10 m cable for 10GBase-CX4 module |
CAB-INF-26G-15= | 15 m cable for 10GBase-CX4 module |
Specifications | XENPAK-10GB-SR |
Description | Cisco 10GBASE-SR XENPAK Module for MMF. It supports a link length of 26m on standard FDDI grade MMF. Up to 300m link lengths are possible when using 2000 MHz/km MMF (OM3). Up to 400m link lengths are possible when using 4700 MHz/km MMF (OM4). |
Product Type | Transciever |
Connector | Dual LC/PC |
Transmit Power Range (dBm) | -7.3 to -1.2 |
Receive Power Range (dBm) | -9.9 to -1.0 |
Wavelength Range (nm) | 850 (840 to 860) |
DOM | Yes |
Temperature Range | 0 and 40°C (32 to 104°F) |
Dimensions | 4.76” x 1.42” x 0.47” in. (121 x 36 x 18 mm) |
Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km) |
Operating Distance (m) |
---|---|---|---|---|
850 | MMF | 62,5 | 160 (FDDI) | 26m |
62,5 | 200 (OM1) | 33m | ||
50 | 400 | 66m | ||
50 | 500 (OM2) | 82m | ||
50 | 2000 (OM3) | 300m | ||
50 | 4700 (OM4) | 400m |
