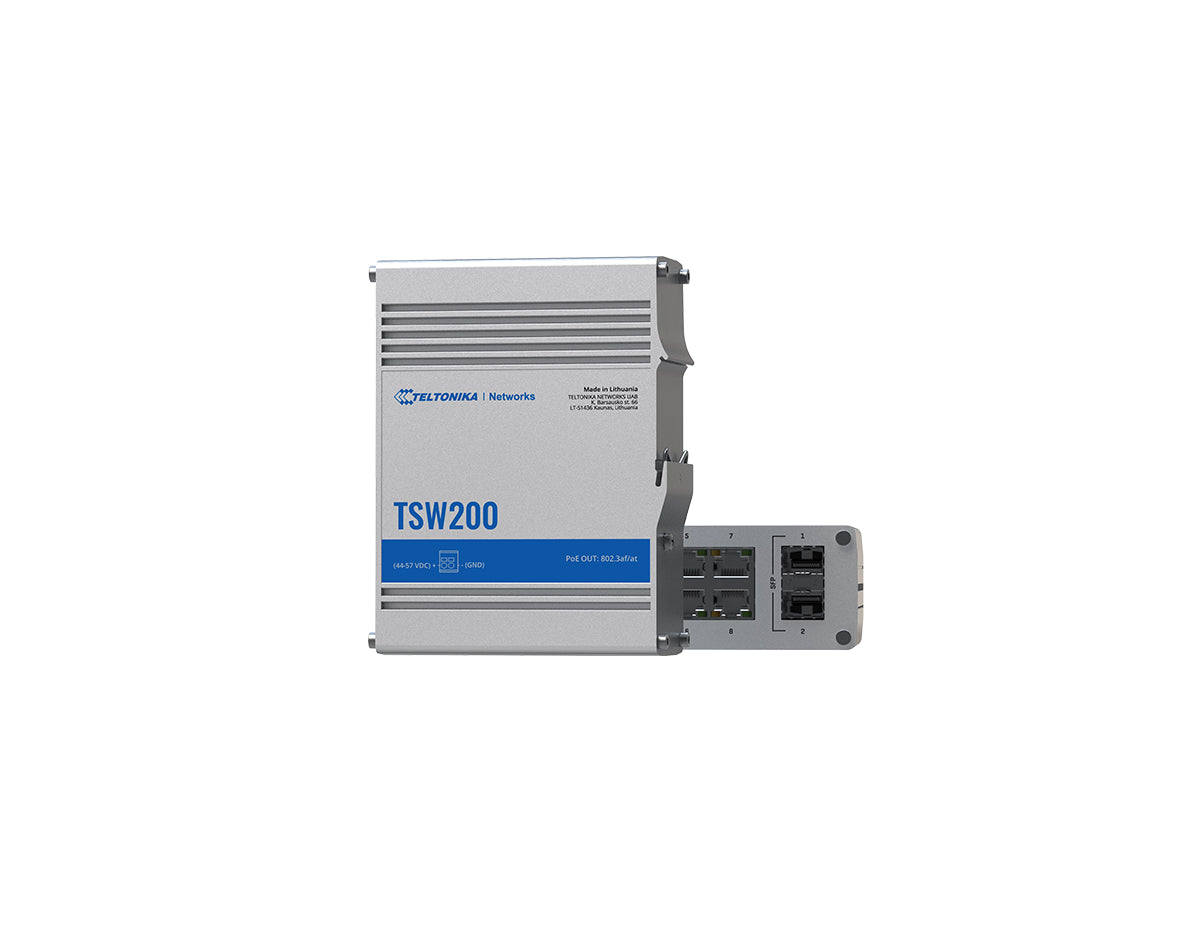

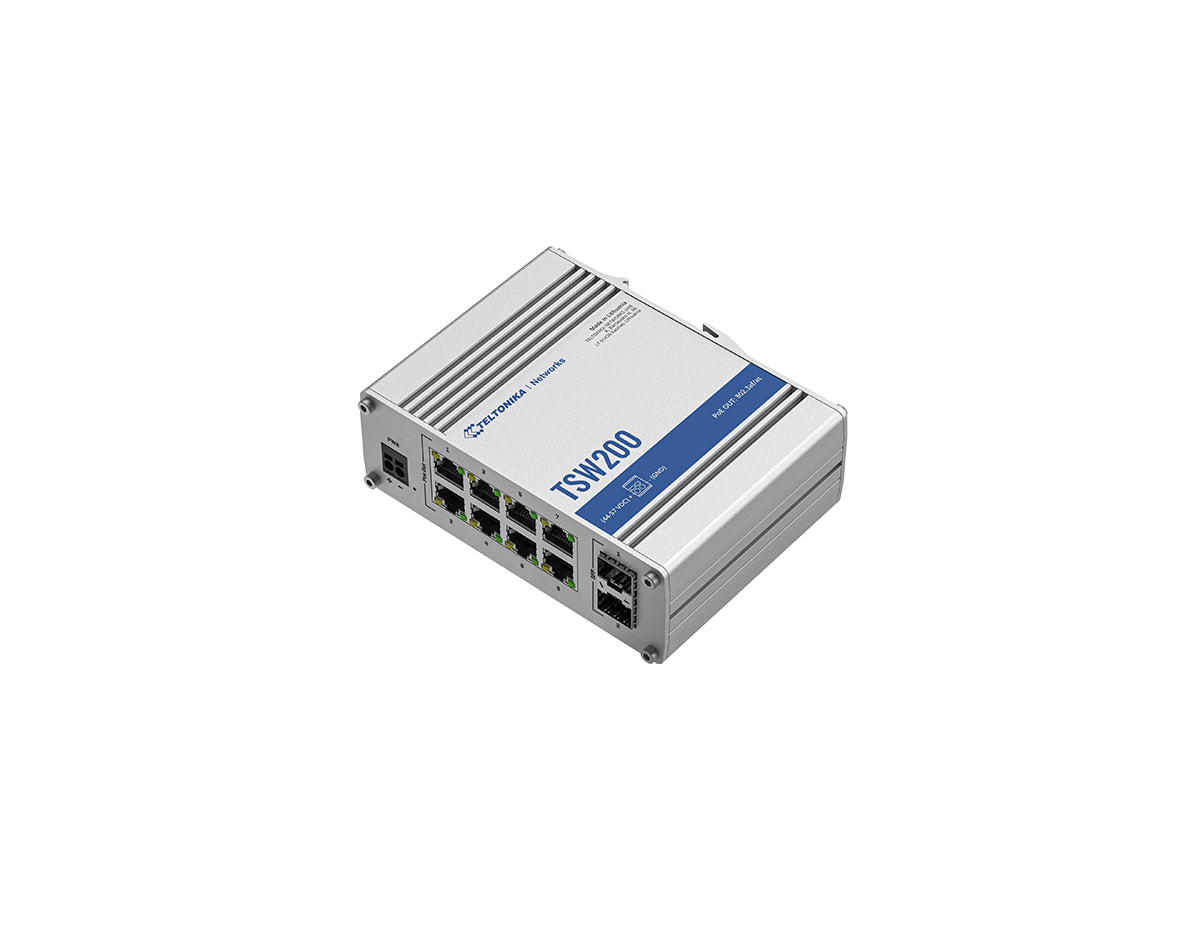

Teltonika TSW200 Switch (TSW200000050)

The Teltonika TSW200 Industrial Ethernet Switch provides reliable networking with Gigabit ports. Designed for demanding industrial environments, it ensures robust performance and efficient data transmission. Choose the TSW200 for high-quality, reliable networking.

Properties	TSW200 SWITCH (TSW200000050)
Description	Teltonika TSW200 is an industrial unmanaged switch with 2 SFP ports, 8 Gigabit Ethernet ports (IEEE802.3af/at), perfect for high-bandwidth applications needing reliable data connection and power."
Product Family	Teltonika TWS Switches
Product Type	Switch
PoE standart	802.3af/at (up to 30 W per port, total power budget - 240 W)
Ethernet	8 x 10/100/1000 Mbps Ethernet ports
Fiber	2 x SFP ports
Housing	Aluminium housing with wall or DIN rail mounting option and grounding capability
Dimensions	132 x 44.2 x 95.1 mm
Weight	456 g
Mounting	DIN rail and surface mounting options
Input voltage range	7 - 57 VDC
Input voltage range for PoE	44 - 57 VDC
Power consumption (idle/max no PoE/max)	1.81 W /  5.5 W / 245.5 W

Bandwidth	10 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Status LEDs	16 x Ethernet, 1 x Power, 2 x SFP activity
Ingress protection rating	IP30
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing
