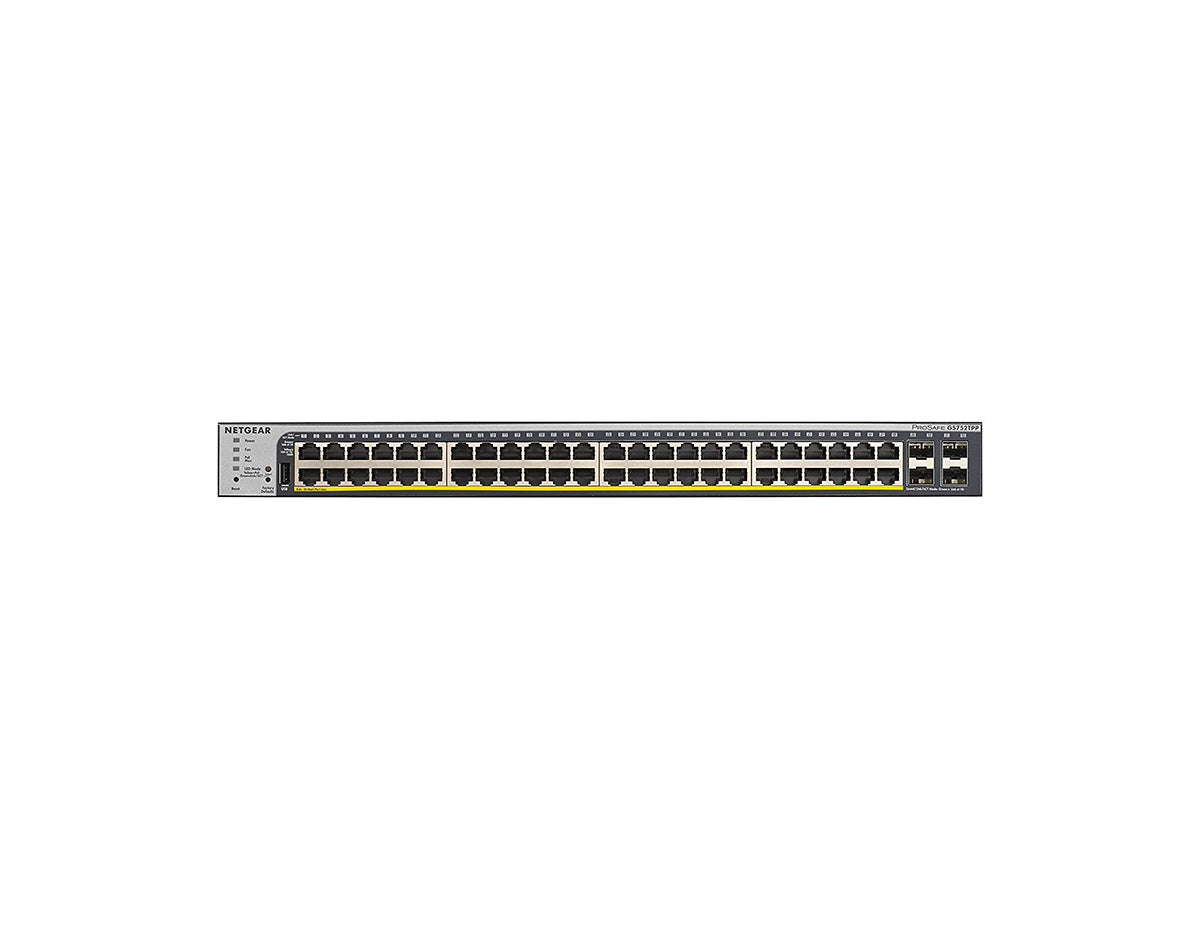

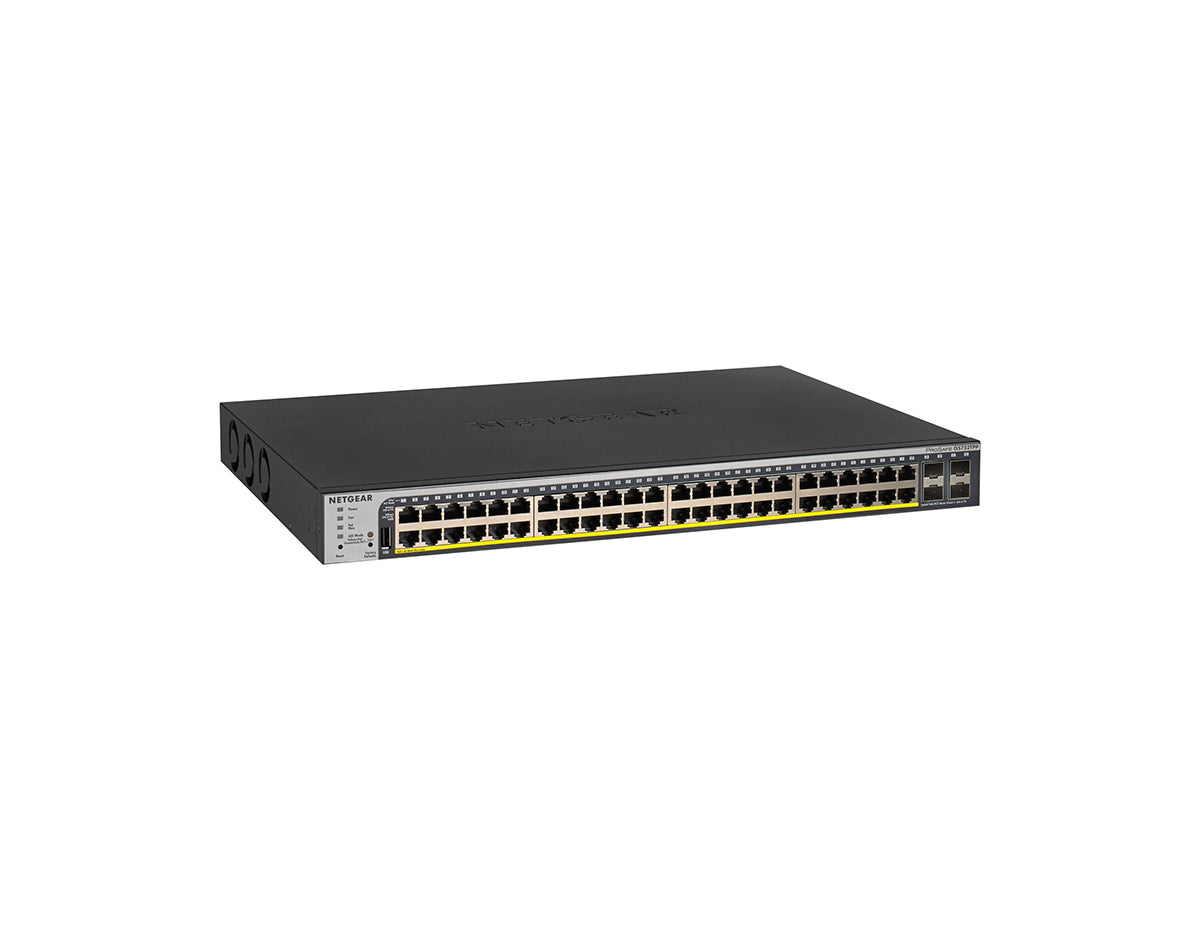

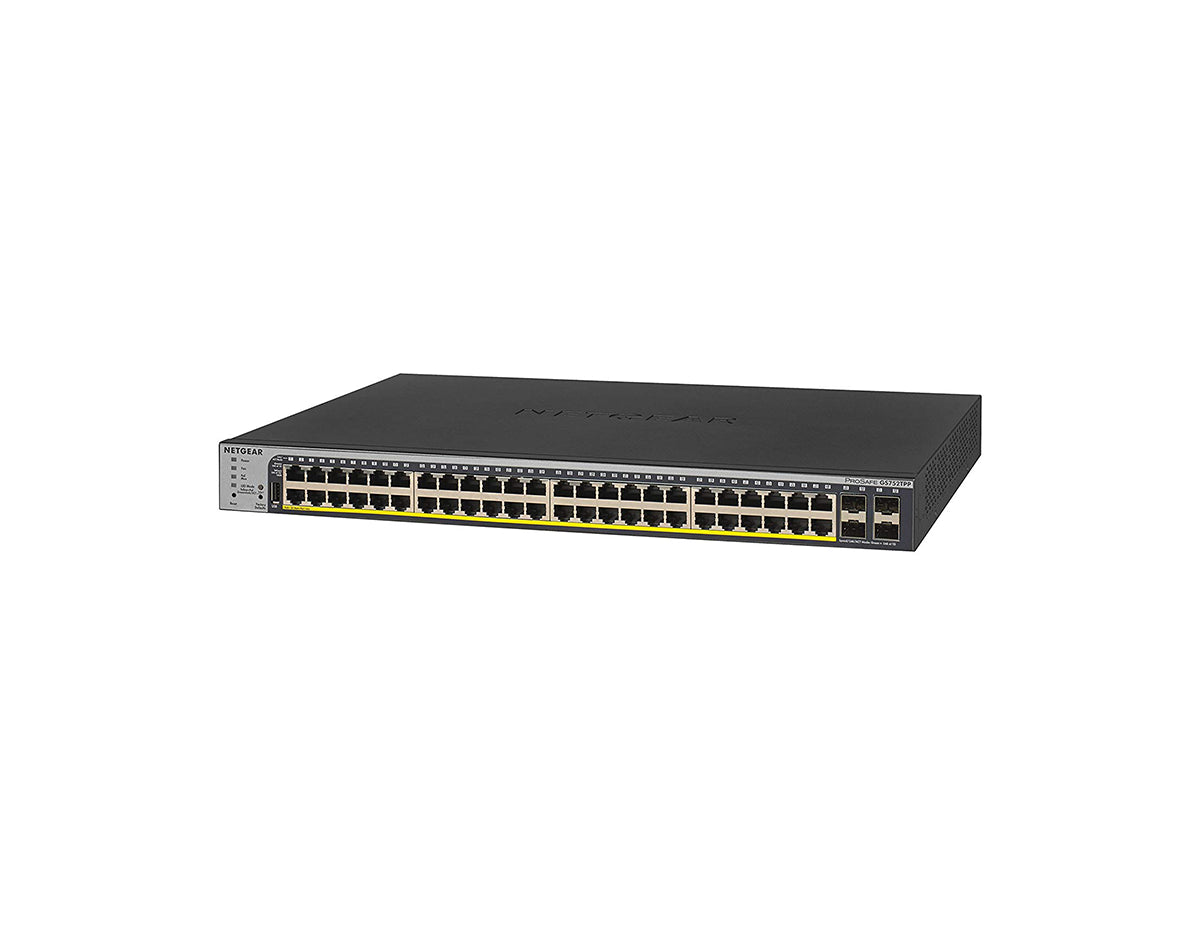

Netgear GS752TPP-100NAS Smart Managed Switch

Power High-Density Networks with Intelligent PoE+ Performance

The NETGEAR GS752TPP is engineered for modern SMB and enterprise edge deployments that demand high PoE density and advanced network control. With a powerful 760W PoE+ budget and full Layer 2 and Lite Layer 3 capabilities, this switch enables seamless deployment of IP cameras, access points, VoIP systems, and IoT devices while maintaining optimal performance and security.

Key Benefits & Features

• High-Power PoE+ Deployment: 48 PoE+ ports with up to 760W power budget support dense environments with power-hungry devices like WiFi APs and surveillance systems.
• Cloud & Remote Management: NETGEAR Insight enables centralized monitoring, configuration, and troubleshooting from anywhere via mobile or web interface.
• Advanced Layer 2+/Layer 3 Features: Includes VLANs, static routing, ACLs, and QoS for efficient traffic segmentation and optimized network performance.
• Flexible Fiber Uplinks: 4 dedicated SFP ports provide reliable uplink redundancy and seamless integration into core network infrastructure.
• Enterprise-Grade Security: Supports 802.1X authentication, ACL filtering, DHCP snooping, and DoS protection for secure network access control.

Ideal Use Cases

• High-density PoE deployments in offices, campuses, and retail environments
• IP surveillance systems with multiple HD cameras
• Wireless infrastructure for enterprise-grade access points
• VoIP deployments requiring traffic prioritization and reliability
• SMB networks requiring cloud-managed switching infrastructure

Technical Specifications

• Ports: 48x 10/100/1000 Gigabit PoE+ ports
• PoE Budget: 760W total PoE+ power
• Uplink Ports: 4x dedicated Gigabit SFP
• Switching Capacity: 104 Gbps non-blocking architecture
• Routing: IPv4/IPv6 static routing (32 routes)
• VLAN Support: Up to 256 VLANs with advanced segmentation
• MAC Table: 16K MAC address entries
• Management: Web GUI, SNMP, NETGEAR Insight cloud
• Security: ACLs, 802.1X, DHCP snooping, DoS prevention
• Form Factor: Rack-mountable with low-noise cooling

Upgrade to Scalable PoE Networking Today

Deploy a powerful, future-ready network with the NETGEAR GS752TPP. Order today to optimize performance, power, and control.

Model	GS752TPP
Product Type	Gigabit PoE+ Smart Switch
Form Factor	Rack-mountable
Ports	48 x 10/100/1000BASE-T RJ45
SFP Ports	4 x 1G SFP (dedicated)
PoE Ports	48 PoE+ (IEEE 802.3at)
PoE Budget	760W
Switching Capacity	104 Gbps
Packet Buffer	1.5 MB
MAC Address Table	16K
VLANs	256
Static Routing	IPv4: 32 routes, IPv6: 32 routes
Management	Web GUI, SNMP, NETGEAR Insight Cloud, Mobile App
Power Supply	Internal PSU (fixed)
Fans	3 internal fans
Dimensions	440 x 310 x 43.2 mm
Weight	5.03 kg
Operating Temperature	0C to 50C
Storage Temperature	-20C to 70C

Forwarding Mode	Store-and-forward
Packet Forwarding Rate	77.38 Mpps (64-byte packets)
Latency	1G Copper: 3.614us; 1G Fiber: 2.980us
Jumbo Frame Support	Up to 10K bytes
QoS Features	8 queues, WRR, DSCP, 802.1p, port-based prioritization
VLAN Support	802.1Q, MAC-based, IP-based, Private VLAN
Multicast	IGMP v1/v2/v3 Snooping, MLD Snooping, MVR
Link Aggregation	802.3ad LACP (16 groups, up to 8 members)
Security	802.1x, ACL (L2/L3/L4), DHCP Snooping, Dynamic ARP Inspection, DoS Protection
Routing Features	IPv4/IPv6 static routing, VLAN routing
Management Features	Cloud management (Insight), SNMP v1/v2c/v3, RMON, Web GUI
Energy Efficiency	IEEE 802.3az Energy Efficient Ethernet
Acoustic Noise	39.74 dBA at 25C
Power Consumption (Max)	861W (full PoE load)
Heat Dissipation	2944.6 BTU/hr

Included	Smart switch; AC power cord; Rack-mount kit; Rubber footpads; SFP dust caps; Installation guide
Compatible SFP Modules	AGM731F (SX), AGM732F (LX), AGM734-10000S (RJ45)
