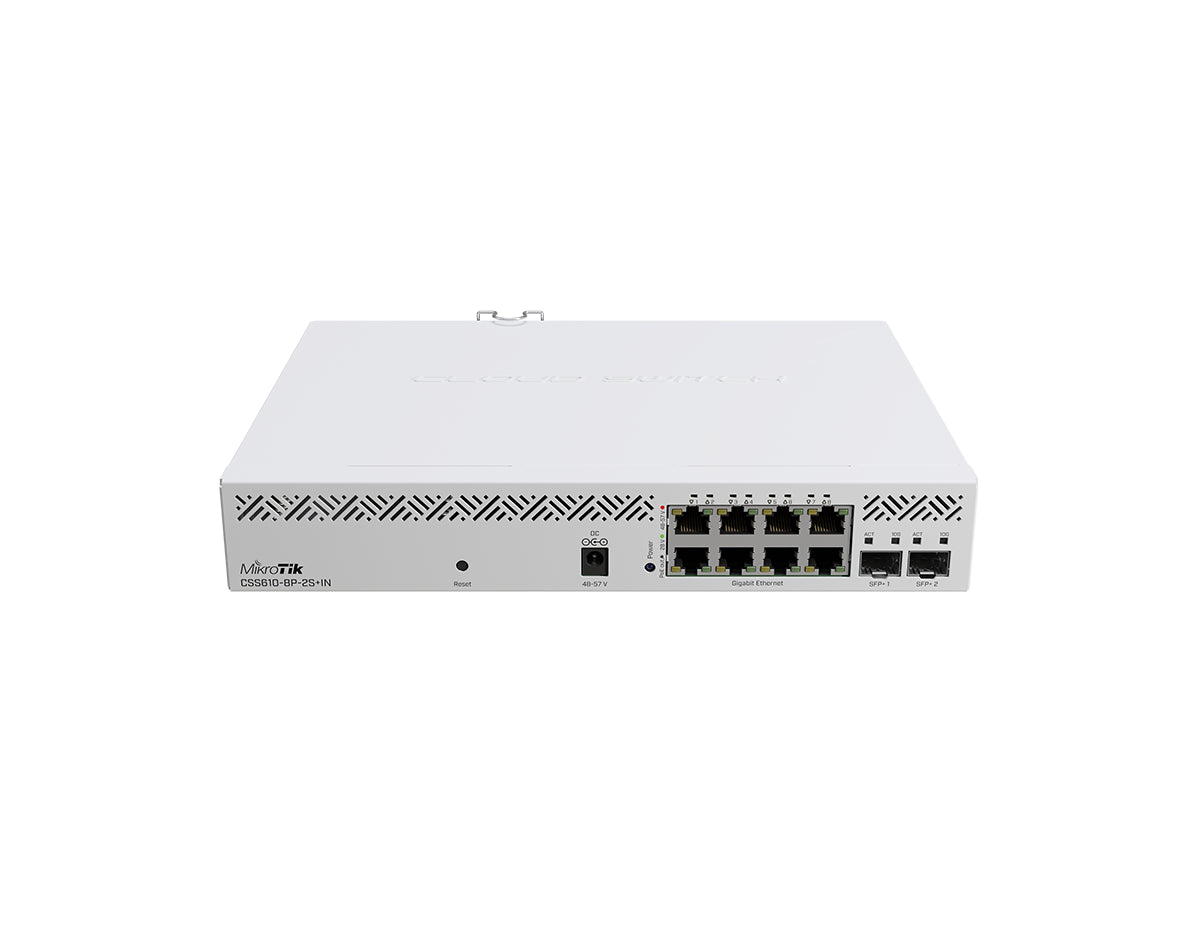

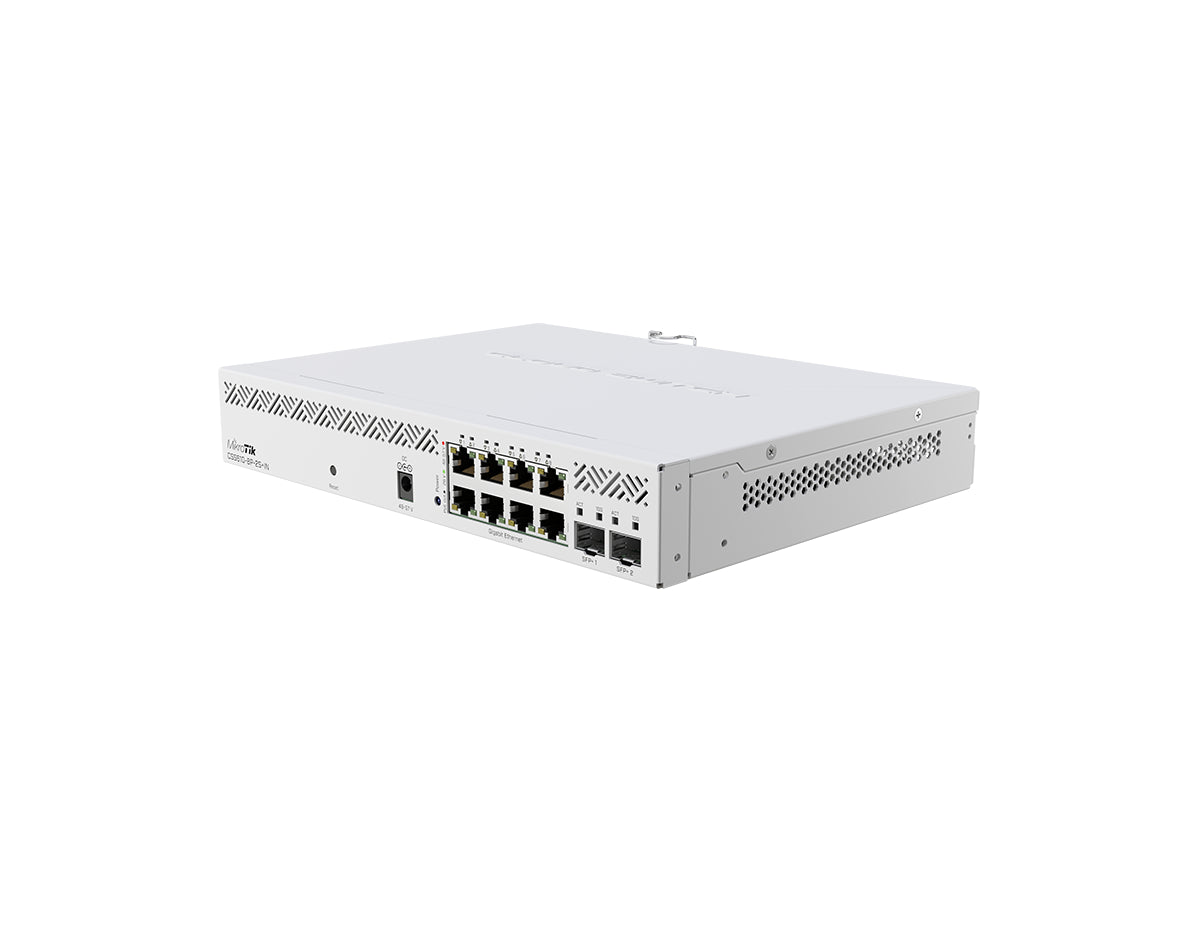

MikroTik CSS610-8P-2S+IN 8 Port Gigabit PoE Switch

Compact Powerhouse for Scalable Network Deployments

The MikroTik CSS610-8P-2S+IN is a versatile and cost-efficient PoE switch designed for growing networks. Combining high-speed 10G uplinks with robust PoE output, it delivers reliable connectivity and power for modern IT infrastructures. Ideal for businesses seeking flexibility and performance without complexity.

Key Benefits & Features

• 8x Gigabit PoE-Out Ports: Supports 802.3af/at and passive PoE to power IP phones, access points, and cameras directly from the switch.
• Dual 10G SFP+ Uplinks: Enables high-speed fiber connectivity for servers or uplinks, reducing bottlenecks in data-intensive environments.
• 140W PoE Budget: Delivers sufficient power for multiple devices simultaneously, ideal for dense deployments.
• SwOS Web-Based Management: Simple browser-based configuration with advanced features like VLANs, MAC filtering, traffic mirroring, and bandwidth control.
• 56Gbps Switching Capacity: Ensures smooth traffic handling and reliable performance across all connected devices.

Ideal Use Cases

• Small to medium business networks requiring PoE device support
• IP camera and surveillance system deployments
• Hotels, call centers, and multi-floor office environments
• Wireless access point and VoIP phone installations
• Edge switching with 10G uplink to core infrastructure

Technical Specifications

• Ports: 8x Gigabit Ethernet PoE-out, 2x 10G SFP+
• Switching Capacity: 56 Gbps
• PoE Standard: 802.3af/at and Passive PoE
• Total PoE Budget: 140 W
• Max Power Consumption: 162 W
• Management: SwOS (Web-based interface)
• Dimensions: 272 x 216 x 50 mm
• Operating Temperature: -40°C to +70°C
• Form Factor: Rack-mountable (rack ears included)

Upgrade Your Network with Reliable PoE Power

Enhance your infrastructure with the MikroTik CSS610-8P-2S+IN and benefit from scalable, high-speed networking. Order today to power your devices efficiently.

Model	MikroTik CSS610-8P-2S+IN
Product Type	Managed PoE Switch
Switching Capacity	56 Gbps
Ethernet Ports	8 x Gigabit Ethernet PoE-out ports
SFP+ Ports	2 x 10G SFP+
PoE Standard	802.3af/at & Passive PoE
Total PoE Budget	140 W
PoE-out Ports	Ether1–Ether8
Management	Web browser (SwOS)
Switch Chip	88E6193X
Dimensions	272 x 216 x 50 mm
Operating Temperature	-40°C to +70°C
Mounting	Rack-mount (rack ears included)

Switch Features	Port-to-port forwarding, MAC filtering, VLANs, traffic mirroring, bandwidth limitation, broadcast storm control
Configuration	Web-based configuration via SwOS
PoE Controller	Smart PoE Controller
Max Power Consumption	162 W
Power Consumption (without attachments)	12 W
DC Input	1 x DC jack (48–57 V)
AC Input	100–240 V
Nominal Voltage	54 V
Nominal Current	2.8 A
PoE Output per Port	1000 mA (input < 30 V); 625 mA (input > 30 V)
Number of DC Inputs	1
Number of AC Inputs	1

Included

Rack ears, Power cord, Fastening set
