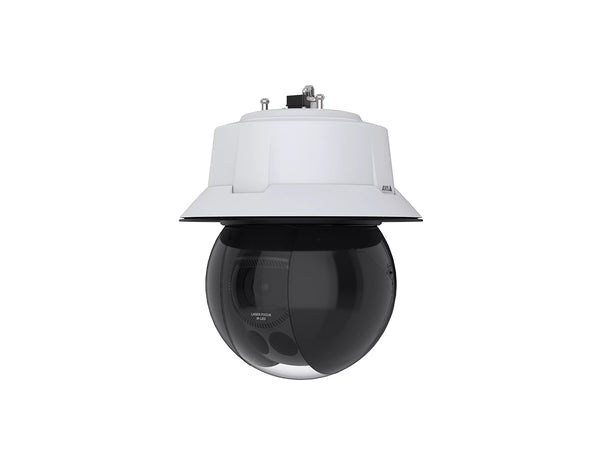

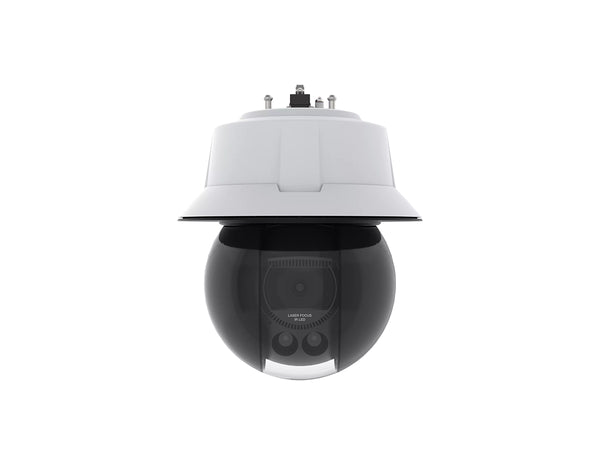

AXIS Q6358-LE PTZ Camera (02977-004)

Name: AXIS Q6358-LE PTZ Camera (02977-004)
Brand: Axis
Price: 3830.0 USD
Availability: InStock

Part Number: 02977-004

Technical Details

4K UHD outdoor PTZ network camera with 31x optical zoom, Forensic WDR, Lightfinder, OptimizedIR up to 300 m, and next-generation AI analytics on ARTPEC-9

$3,830.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

4K AI-powered PTZ camera for extreme low-light outdoor surveillance

AXIS Q6358-LE PTZ Camera (02977-004) is a high-end 4K UHD outdoor PTZ solution designed for mission-critical surveillance with a 1/2" sensor, 31x optical zoom, laser focus, and powerful IR reaching up to 300 m.

Powered by ARTPEC-9 with deep learning acceleration, it supports advanced analytics like AXIS Object Analytics and AXIS Scene Metadata directly on the edge. IP66/IP67, IK10, and NEMA 4X protection with Arctic Temperature Control ensures reliable operation in demanding environments.

Key Benefits

High-detail 4K imaging with a 1/2" sensor and 31x zoom for long-range identification
Forensic WDR, Lightfinder, and OptimizedIR up to 300 m for low-light excellence
AI-powered analytics using ARTPEC-9 DLPU
Efficient bandwidth with Zipstream for AV1/H.264/H.265
Extreme durability: IP66/IP67, IK10, NEMA 4X, Arctic Temperature Control
Advanced cybersecurity with Edge Vault and secure element
Broad integration support: ONVIF G/M/S/T, VAPIX, ACAP

Ideal Use Cases

Highways, intersections, traffic monitoring
Perimeter protection for industrial and critical infrastructure
City surveillance and public safety
Airports, stadiums, campuses, parking facilities
Extreme-climate outdoor installations

Technical Specifications Summary

Image sensor: 1/2" CMOS
Zoom: 31x optical, 6.91–214.64 mm
Low-light: 0.1/0.2 lux color, 0.005/0.009 lux B/W, 0 lux with IR
Video: 4K UHD 50/60 fps, AV1/H.264/H.265
PTZ: 360° endless pan, +20° to –90° tilt
IR range: Up to 300 m
Durability: IP66/IP67, IK10, NEMA 4X
Analytics: AOA, Scene Metadata, VMD
Cybersecurity: Edge Vault, Secure Boot, MACsec

Upgrade Your Operations

Enhance long-range outdoor surveillance with AXIS Q6358-LE and its AI-powered imaging and hardened cybersecurity.

Properties

Model	AXIS Q6358-LE PTZ Camera (02977-004)
Product Type	4K outdoor PTZ network camera
Image Sensor	1/2" progressive scan CMOS
Optical Zoom	31x optical zoom, 12x digital zoom; total 372x zoom
Minimum Illumination	Color: 0.1 lux at 30 IRE, F1.36 / 0.2 lux at 50 IRE, F1.36; B/W: 0.005 lux at 30 IRE, F1.36 / 0.009 lux at 50 IRE, F1.36; 0 lux with IR illumination on
Resolution & Frame Rate	Up to 3840x2160 4K UHD, up to 50/60 fps in all resolutions
IR Illumination	OptimizedIR with 850 nm LEDs; range up to 300 m (984 ft) or more depending on the scene
Power	IEEE 802.3bt Type 3 Class 6; full power: 13.7 W typical (no IR), max 51 W; low power: 13.7 W typical (no IR), max 30 W; with IR: 40 W; power profiles; integrated power meter
Operating Conditions	Full power: -50 °C to 55 °C (-58 °F to 131 °F); low power: -10 °C to 55 °C (14 °F to 131 °F); Arctic Temperature Control down to -40 °C (-40 °F); NEMA TS2 max temp: 74 °C (165 °F); humidity 10–100% RH (condensing); wind load: 60 m/s (135 mph)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); humidity 5–95% RH (non-condensing)
Casing	IP66, IP67, NEMA 4X, IK10; aluminum metal casing; hard-coated PC dome; Sharpdome; color: white NCS S 1002-B
Dimensions (H × Ø)	Height: 261 mm (10.3 in); Ø 239 mm (9.4 in) with weather shield; Ø 192 mm (7.6 in) without; EPA: 0.045 m²
Weight	4400 g (9.7 lb)
Environmental Ratings	IP66, IP67, IK10, NEMA 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-x, ISO 21207 (Method B), ISO 12944-6 C5
Certifications	EN 55032 Class A, EN 55035, EN 61000-6-1/6-2, CISPR 35, EAC, EN 50121-4, RCM, ICES-3(A), VCCI A, FCC Part 15 Class A, IEC 62236-4; Safety: IEC/EN/UL 62368-1; Cybersecurity: ETSI EN 303 645, BSI IT Label, FIPS 140
Edge Storage	SD/SDHC/SDXC support with AES-XTS-Plain64 256-bit encryption; NAS recording support
Analytics	AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, autotracking 2; ACAP third-party app support

Specifications

Camera	4K UHD PTZ camera with 1/2" sensor, 31x optical zoom, laser focus, and quick zoom for outdoor surveillance
Lens	31x optical zoom; zoom speed <1s; focal length 6.91–214.64 mm; HFoV 58.5°–2.3°; VFoV 34.9°–1.4°; laser focus; autofocus; P-iris
Day/Night	Removable IR-cut filter
Shutter Speed	1/111000 s to 1/2 s
Pan / Tilt / Zoom	Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to –90°, 0.05°–500°/s; total zoom 372x; quick-zoom; nadir flip; 300 presets; 10 tours (max 16 min each); 100 guard tours; on-screen directional indicator; adjustable zoom speed; speed dry
System-on-Chip	ARTPEC-9 with deep learning processing unit (DLPU)
Memory	4096 MB RAM, 8192 MB Flash
Video Compression	AV1, H.264 Baseline/Main/High, H.265 Main, Motion JPEG
Video Streaming	Multiple configurable streams; Zipstream for AV1/H.264/H.265; VBR/ABR/MBR; low-latency mode; video streaming indicator
Signal-to-Noise Ratio	>55 dB
Image Settings	Compression, color, brightness, sharpness, white balance, exposure control/zones, freeze PTZ, scene profiles, rotation, EIS, defogging, contrast, local contrast, autofocus, Forensic WDR up to 120 dB, up to 100 privacy masks incl. mosaic & chameleon
Audio	Audio input/output via portcast technology
Network Protocols	IPv4/IPv6, HTTP/HTTPS, FTP/SFTP, SMB/CIFS, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP, TCP/UDP, IGMP, DHCP, ARP, SSH, NTCIP, LLDP, CDP, MQTT, secure syslog, ZeroConf
System Integration	Open API, VAPIX, ACAP app support, ONVIF Profiles G/M/S/T, One-Click Cloud Connection
On-Screen Controls	IR illumination, quick-zoom, speed dry
Event Conditions	Device status, edge storage status, manual trigger, virtual inputs, MQTT connection, PTZ events, schedule events, bitrate degradation, day-night mode
Event Actions	Day-night mode, defog, IR control, image/video upload (FTP/SFTP/HTTP/HTTPS/network share), MQTT publish, notifications, overlay text, video recording, erase configuration, SNMP traps
Edge Security	Signed OS, brute-force delay, OAuth 2.0, password protection, AES-XTS-Plain64 SD encryption, Edge Vault secure element (CC EAL6+, FIPS 140-3 L3), signed video, secure boot, encrypted filesystem
Network Security	IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2/1.3, NTS, X.509 certificates, firewall
Connectors	RJ45 10BASE-T/100BASE-TX/1000BASE-T; RJ45 IP66 push-pull connector
DORI (EN 62676-4)	Detect: 138.3 m / 3674.4 m; Observe: 54.9 m / 1457.6 m; Recognize: 27.6 m / 734.2 m; Identify: 13.8 m / 366.7 m
Supported Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Video Management	AXIS Companion, AXIS Camera Station, third-party VMS (ADP)

Accessories

Included Accessories	Installation guide; Windows decoder license; 90 W midspan with cable; IP66 connector; repaint template; paint paper
Optional Accessories	AXIS TQ6808-E Clear Dome; AXIS TQ6815-E Smoked Dome; AXIS TU8003 90 W Midspan; AXIS T91/T94 mounts; AXIS Surveillance Cards
