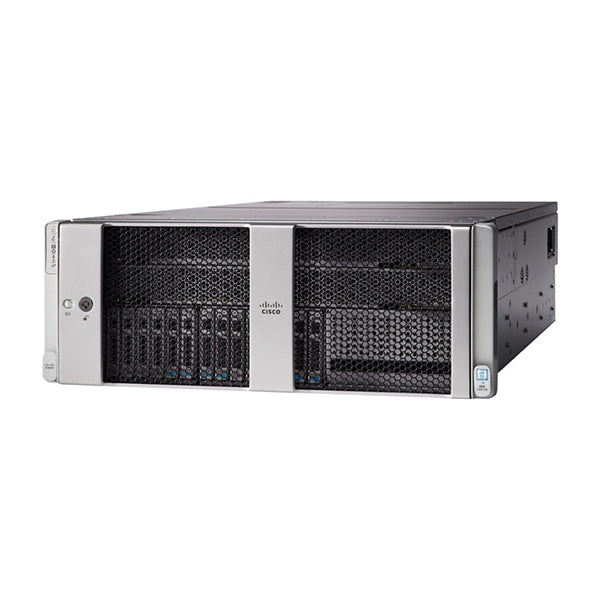

CISCO UCS-C480-M5 STANDART BASE CHASSIS - RACK SERVER
| Model: | UCSC-C480-M5 |
| Detail: |
,
Server , Rack-mountable, 4U, 4-way |
| List Price: | |
| Price: | $5,450.00 |
| You Save: | $12,787.00 (70% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The Cisco UCS C480 M5 Rack Server is a storage- and I/O-optimized enterprise-class rack server that delivers industry-leading performance for in-memory databases, big data analytics, virtualization, Virtual Desktop Infrastructure (VDI), and bare-metal applications. The C480 M5 delivers outstanding levels of expandability and performance for standalone or Cisco Unified Computing System (Cisco UCS) managed environments in a 4RU form factor. And because of its modular design, you pay for only what you need.
Requires Following Components to Complete:
- CPU(s)
- Memory
- Raid Configuration
- PCle Option Card(s)
- Power Supplies
- AC Power Cord(s)
- Operating System
Please email us at sales@networkdevicesinc.com
Optional Components:
- Drive Modules and Drives
- PCle Option Card Accessories
- Optical Drive
- Secure Digital Cards or M.2 Devices
- Internal Micro-SD Card Module
- GPU Cards and Accessories
- Cable Management ARM
- USB Drive
- Security Devices
- Bezel
- Management Configuration
- Server Boot Mode
- Racks
- Power Distribution Unit (PDU)
Accessories
Specifications
Properties
| Properties | UCS-C480-M5 |
| Description | UCS-C480-M5 is a high-density rack server designed for enterprise-level computing, featuring the latest Intel Xeon Scalable processors, high-speed networking, and up to 6 terabytes of storage capacity. |
| Product Family | UCS Series Rack Server |
| Product Type | Servers |
| Form factor | 4RU rack server |
| Processors | Intel® Xeon® Scalable CPUs and second-generation Intel® Xeon® Scalable CPUs (2 or 4) |
| Memory | 48 DDR4 DIMM slots: 16, 32, 64, 128, and 256 GB; up to 2933 MHz |
| PCIe expansion | 12 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot |
| RAID controllers | Internal controllers: |
| ● Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 24 SAS and SATA HDDs and SSDs | |
| ● 12-Gbps 9460-8i RAID controller with 2-GB FBWC provides support for up to 8 SAS and SATA HDDs and SSDs in the auxiliary drive modules | |
| ● PCIe NVMe switch card for up to 8 PCIe NVMe drives in the auxiliary drive module | |
| Internal storage | Support for up to 32 hot-swappable 2.5-inch Small Form Factor (SFF) drives |
| ● Up to 24 front-loading 2.5-inch SAS/SATA HDDs and SSDs and PCIe NVMe drives | |
| ● Up to 8 top loading 2.5-inch SAS/SATA/PCIe HDDs and SSDs or NVMe drives in the C480 M5 auxiliary drive module | |
| ● DVD drive option | |
| Embedded Network Interface Cards (NICs) | Dual 10GBASE-T Intel x550 Ethernet ports |
| Power supplies | Hot-pluggable, redundant 1600W AC |
| Rack options | Cisco ball-bearing rail kit with optional reversible cable management arm |
| Dimensions in. | 6.9 x 19.0 x 32.7 |
| Regulatory Compliance | Products should comply with CE Markings per directives 2014/30/EU and 2014/35/EU |
| Safety | UL 60950-1 Second Edition |
| CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition | |
| IEC 60950-1 Second Edition | |
| AS/NZS 60950-1 | |
| GB4943 2001 | |
| EMC - Emissions | 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR32 Class A CISPR32 Class A |
| EN55032 Class A | |
| ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN32 Class A CNS13438 Class A | |
| EMC - Immunity | EN55024 CISPR24 EN300386 KN35 |
