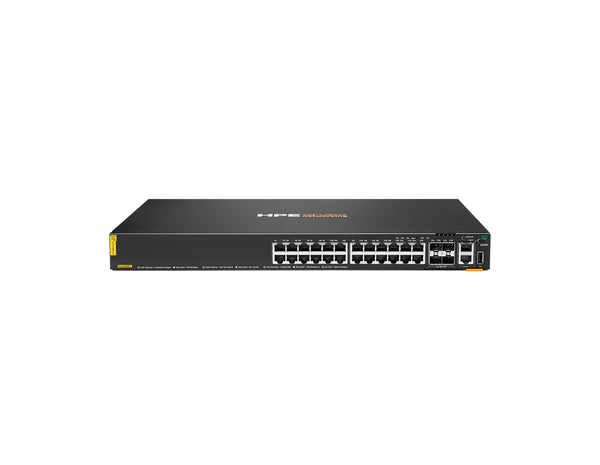

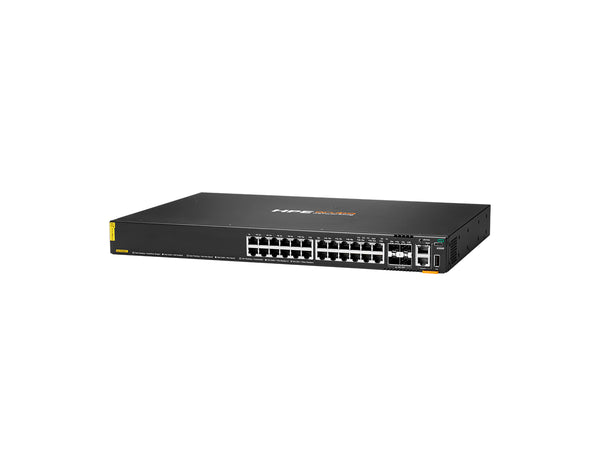

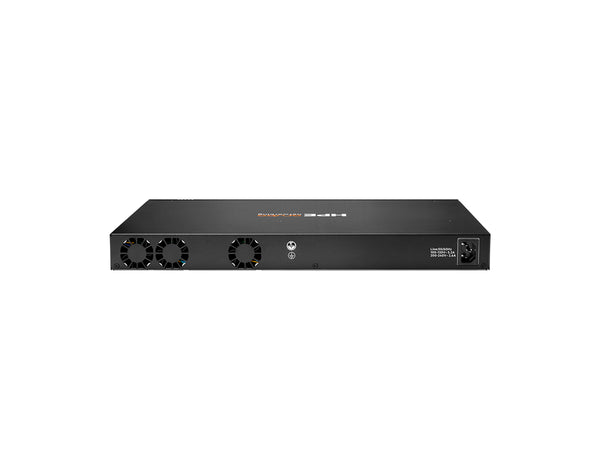

HPE Aruba Networking JL725B CX 6200F 24G Class‑4 PoE 4SFP+ 370W Switch

HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W Switch

The HPE Aruba Networking CX 6200F delivers reliable Layer 2/3 access switching for branch, campus, and SMB environments. With 24 Class 4 PoE ports (up to 30W/port) and 4 x 1/10G SFP+ uplinks, it powers access points, IP cameras, and VoIP phones while providing high-speed fiber aggregation. A fixed 370W PoE power supply, fixed fans, and flexible management—via RJ-45 or USB-C console, OOBM, and USB host—simplify deployment and operations.

Key Features:

• 24 x 1G PoE+ Access: IEEE 802.3af/at Class 4 PoE with a 370W budget for edge devices.
• 4 x 10G SFP+ Uplinks: High-speed fiber connectivity to the distribution/core.
• Enterprise Performance: 128 Gbps switching capacity and up to 95.2 Mpps throughput with low latency (1G: 2.28 μs; 10G: 1.46 μs).
• Scalable Stacking: Stack up to 8 switches for simplified management and resiliency.
• Operational Simplicity: Fixed PSU/fans, OOBM, dual console (RJ-45 & USB-C), and USB-A host for fast turn-ups.

Technical Overview:

• Use cases: Campus edge, branch offices, SMB access switching.
• Performance: 128 Gbps switching; up to 95.2 Mpps forwarding.
• Hardware: Quad-core ARM Cortex A72 @ 1.8 GHz; 8 GB DDR4; 16 GB eMMC.
• Power: 65W (230 VAC) typical; 370W PoE+ total budget.
• Size/Weight: 4.39 × 44.2 × 32.7 cm; up to 5.10 kg depending on model.

Properties	HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W Switch
Description	24 x 10/100/1000BASE-T Class 4 PoE access switch with 4 x 1/10G SFP+ uplinks, fixed 370W PoE power supply, fixed fans, and multi-port console/OOBM for simplified management.
Product Family	HPE Aruba Networking CX 6200 Switch Series
Product Type	Switch
Key benefits of the Product Family	Stackable Layer 2/3 access switches for branch, campus, and SMB networks Integrated Class 4 PoE (802.3af/at) up to 370W total for APs, cameras, and VoIP Fixed 1/10G fiber uplinks for high-speed aggregation; simple OOBM and USB console options

Specifications	CX 6200F 24G Class-4 PoE 4SFP+ 370W
Description	24x 10/100/1000BASE-T Class 4 PoE ports (up to 30W/port) 4x 100M/1/10G SFP+ uplink ports (PHY-less) PoE standards: IEEE 802.3af, 802.3at (Class 4) 1x USB-C console port; 1x RJ-45 console port; 1x OOBM (out-of-band management) port; 1x USB Type-A host port Fixed power supply delivering up to 370W Class 4 PoE; fixed fans
CPU	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and flash	8 GB DDR4; 16 GB eMMC
Routing/Switching capacity	128 Gbps
Throughput	Up to 95.2 Mpps
Latency (LIFO, 64-byte)	1 Gbps: 2.28 μs | 10 Gbps: 1.46 μs
Stacking	Up to 8 members
PoE capability	370W total Class 4 PoE power
Power consumption (230VAC)	65W
AC input voltage (rated)	100–120 VAC / 200–240 VAC
Dimensions (H × W × D)	4.39 × 44.2 × 32.7 cm (1.73 × 17.4 × 12.9 in)
Weight	Up to 5.10 kg (11.24 lb), depending on model
Detailed product description	The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branches, campus edge, and SMB networks.

Transceivers	HPE Aruba 10G SFP+ LC SR 300m MMF (J9150D) HPE Aruba 10G SFP+ LC LR 10km SMF (J9151E) HPE Aruba 10G SFP+ LC ER 40km SMF (J9153D) HPE Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A (JL563B) HPE Aruba 1G SFP LC SX 500m MMF (J4858D) HPE Aruba 1G SFP LC LX 10km SMF (J4859D) HPE Aruba 1G SFP RJ-45 T 100m Cat5e (J8177D)
Cables	HPE Aruba USB-A to RJ45 PC-to-Switch Cable (R9G48B) HPE Aruba USB-A to USB-C PC-to-Switch Cable (R9J32A) HPE Aruba USB-C to USB-C PC-to-Switch Cable (R9J33A)
Rack kits	HPE X410 1U Universal 4-post Rack Mount Kit (J9583A) HPE Aruba X414 1U Universal 4-post Rack Mounting Kit (J9583B)
