Mikrotik LDF 5 RBLDF-5nD-US Outdoor Wireless System

MikroTik RBLDF-5ND-US Outdoor Wireless System

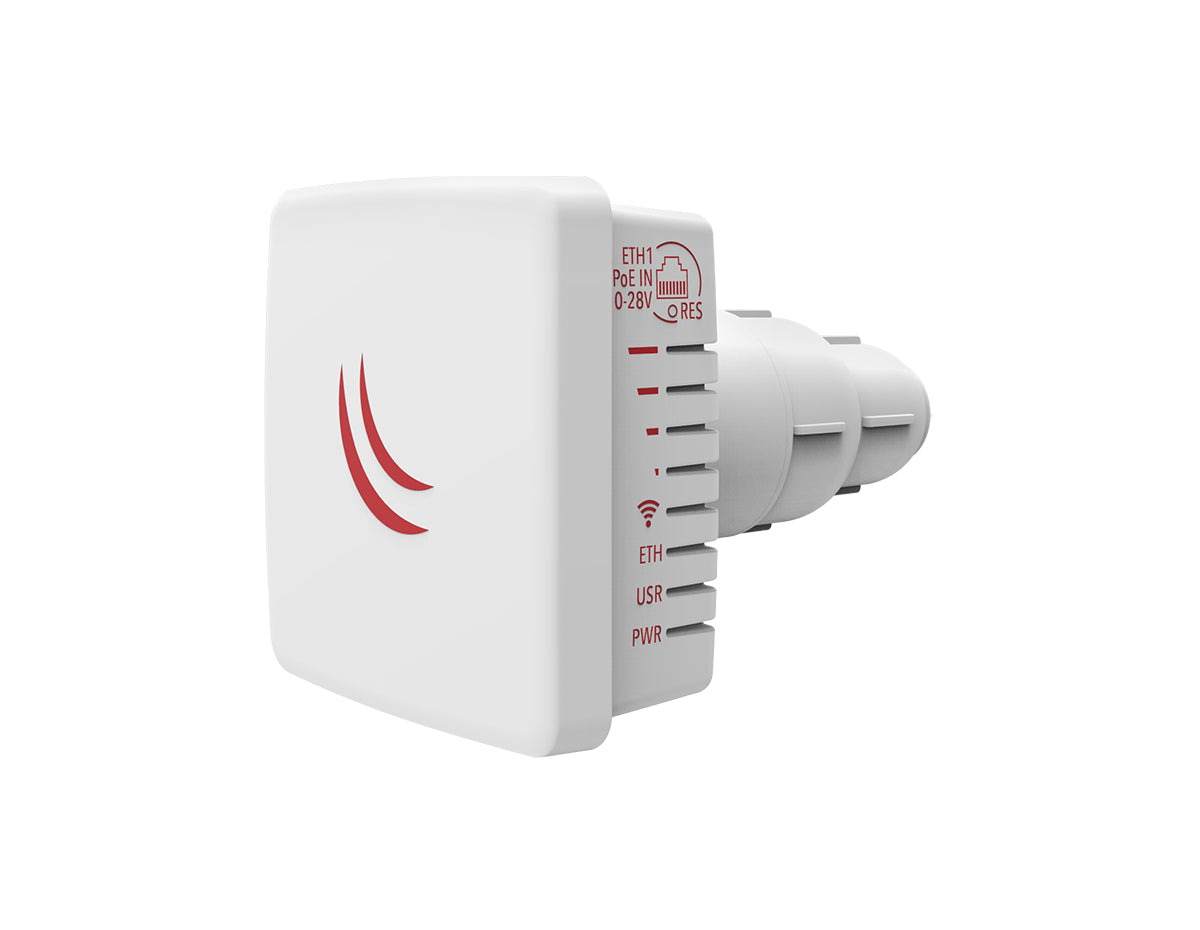

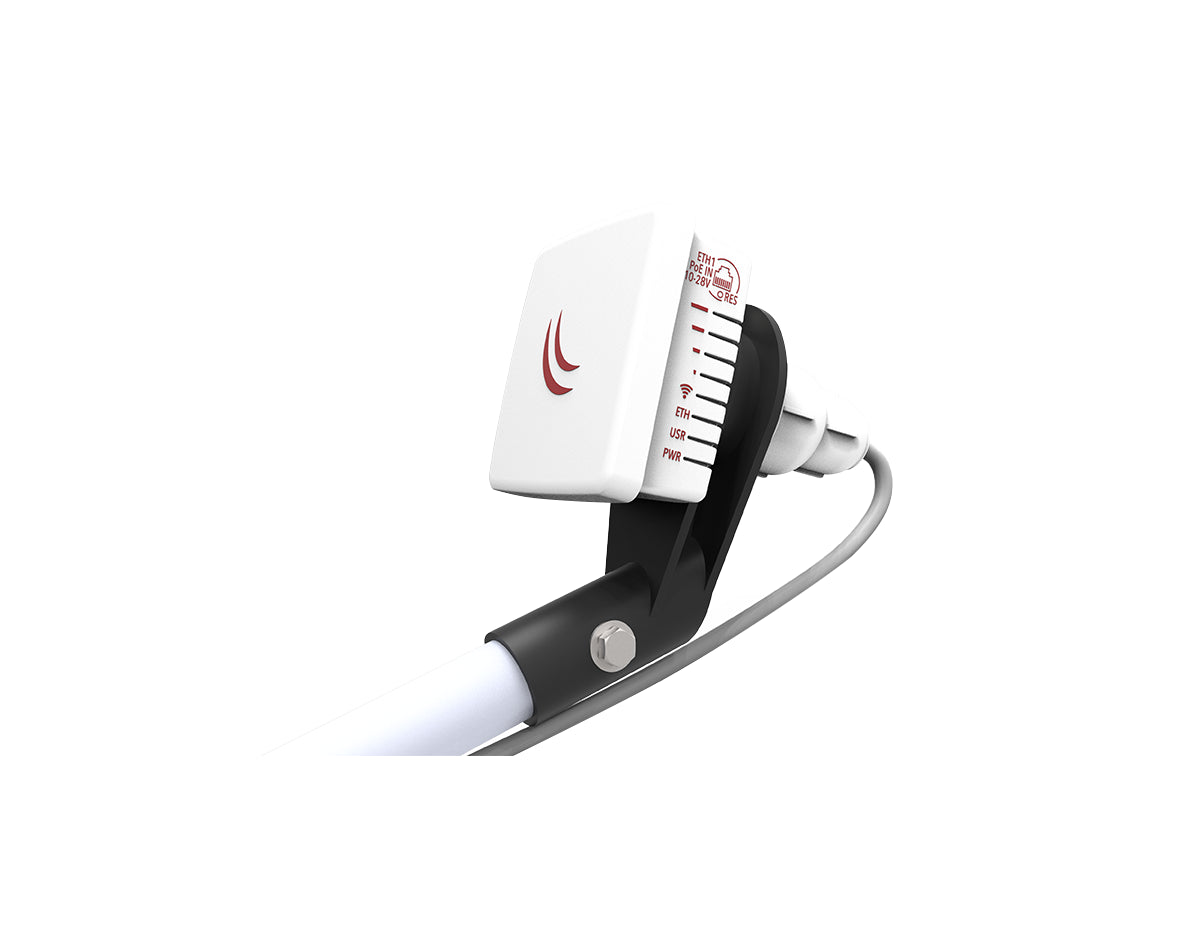

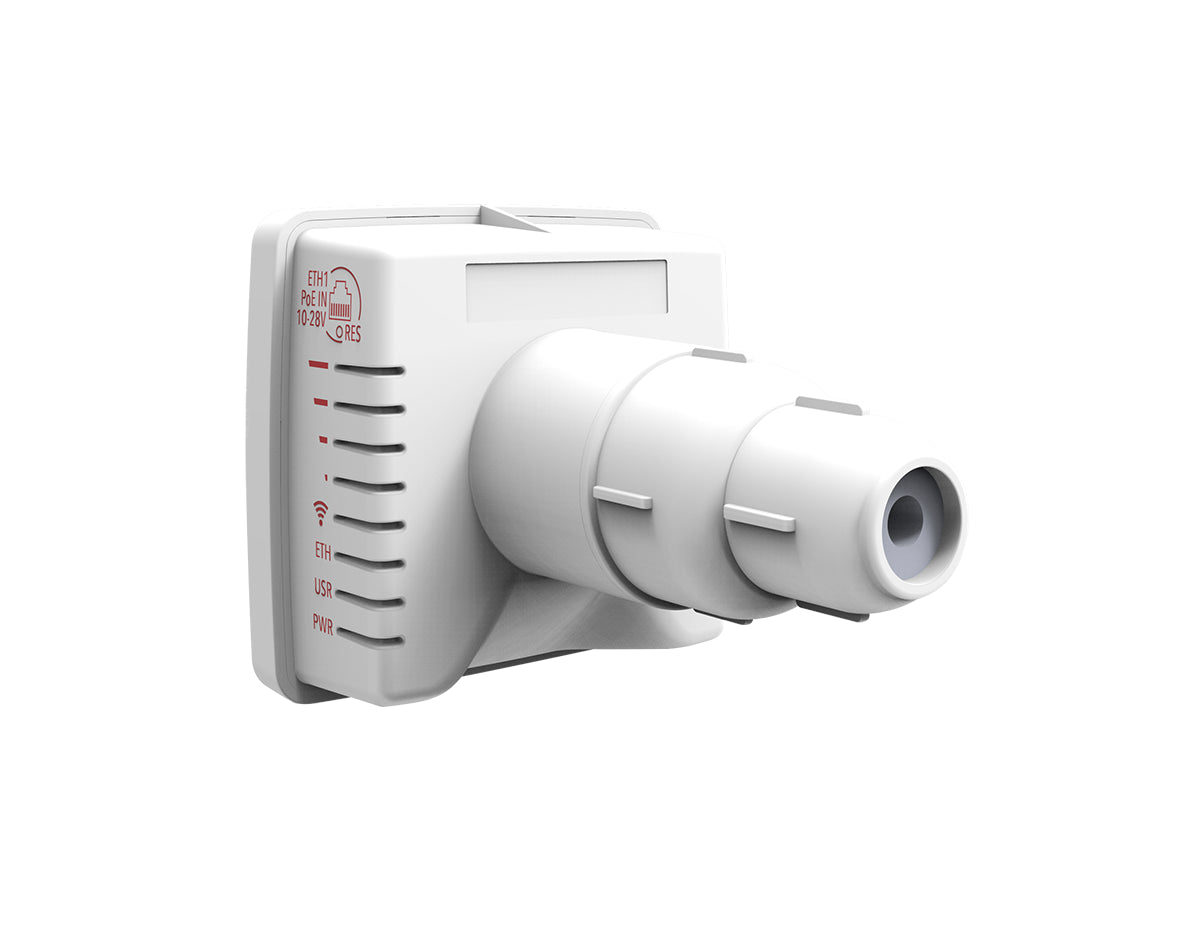

The RBLDF-5nD is an outdoor wireless device featuring an integrated antenna, designed for installation on satellite offset dish antennas. The dish functions as a reflector, enhancing signal strength. The RBLDF-5nD-US is furnished with a Gigabit port and is compatible with 802.11ac for improved data throughput. The RBLDF-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.

Quick Specs:

• 1x 10/100 Ethernet Ports
• AR9344, 1 core, 600 MHz CPU
• PoE-in: Passive PoE
• 64 MB RAM

Please see the related tabs for the RBLDF-5nD-US datasheet and compatible accessories.

Properties	RBLDF-5nD-US
Description	Discover the Mikrotik LDF 5 RBLDF-5nD-US, an outdoor wireless system featuring 5 GHz frequency and a powerful integrated antenna. Experience reliable long-range connectivity for your network with this top-tier solution.
Product Family	LDF 5 Series
Product Type	Outdoor Wireless System
10/100 Ethernet ports	1
Number of DC inputs	1 (PoE-IN)
Max power consumption	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Dimensions	84mm x 84mm x 115mm

Specifications	RBLDF-5nD-US
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	84x84x115mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	9
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Included in package

24V 0.38A power adapter PoE Injector
