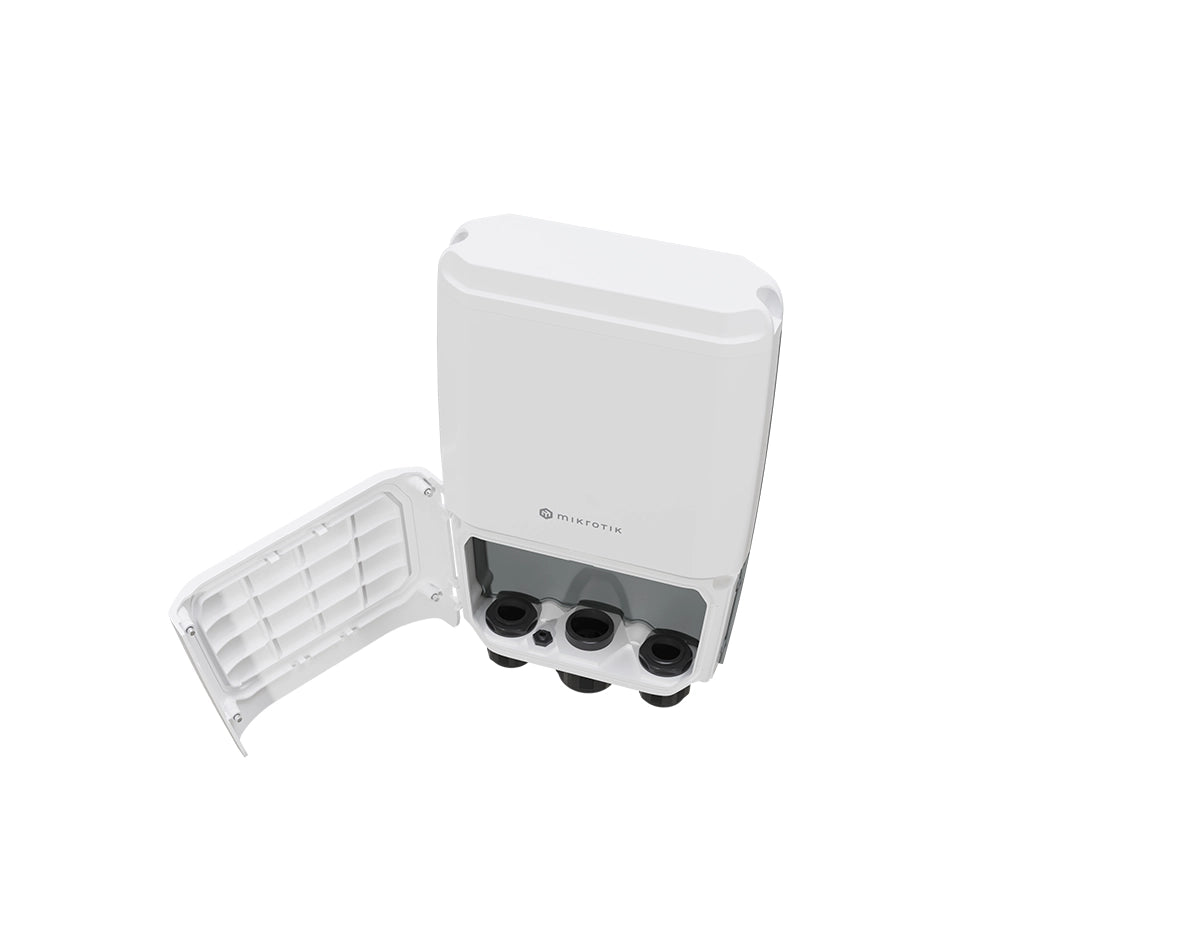

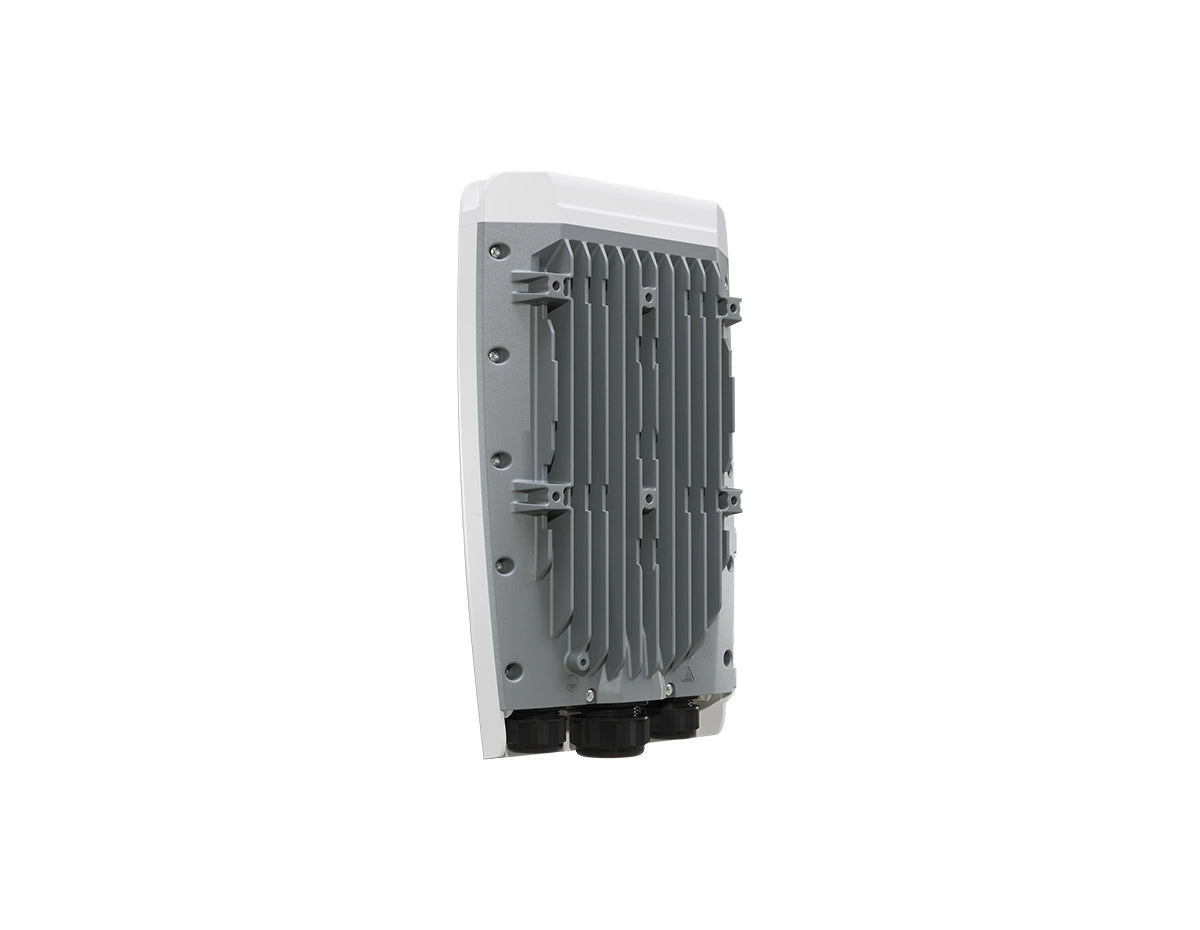

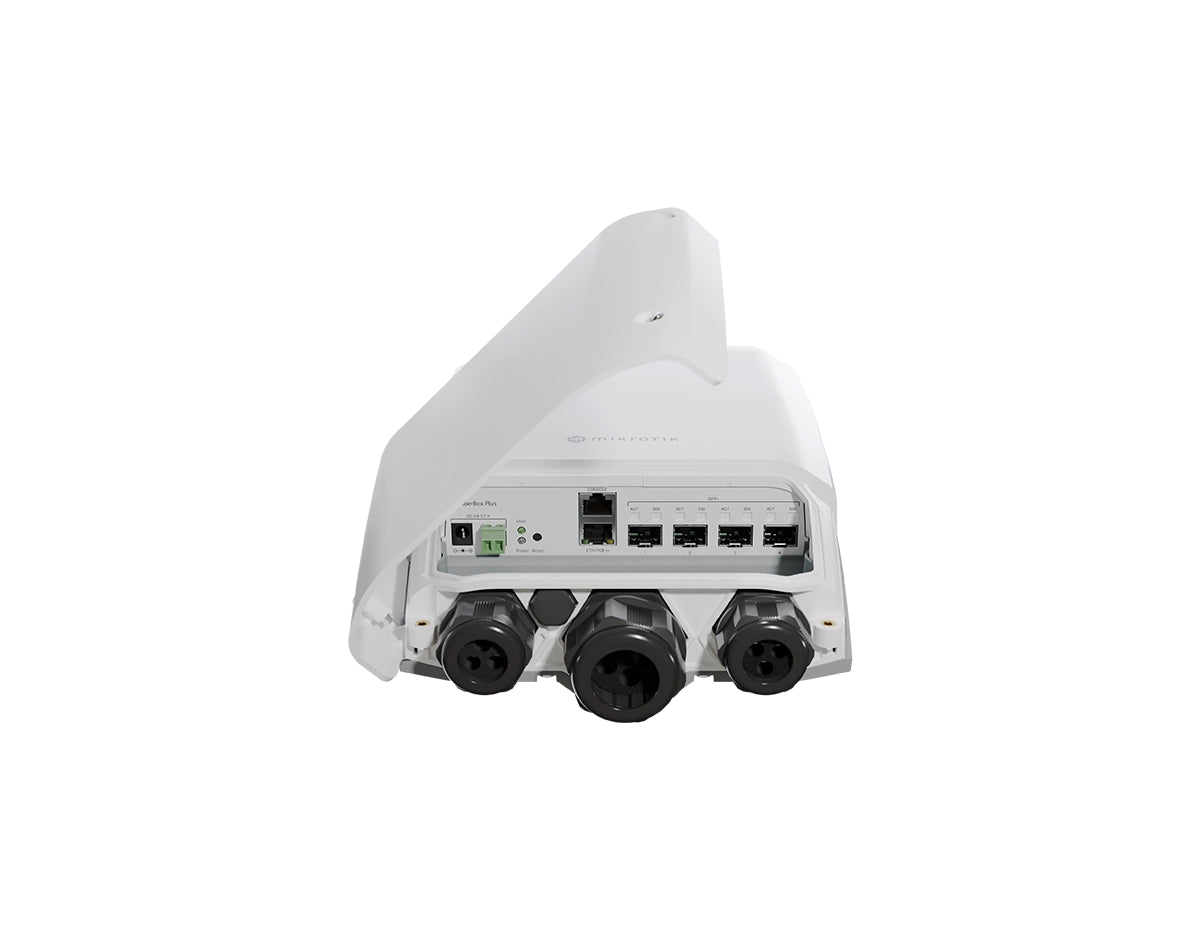

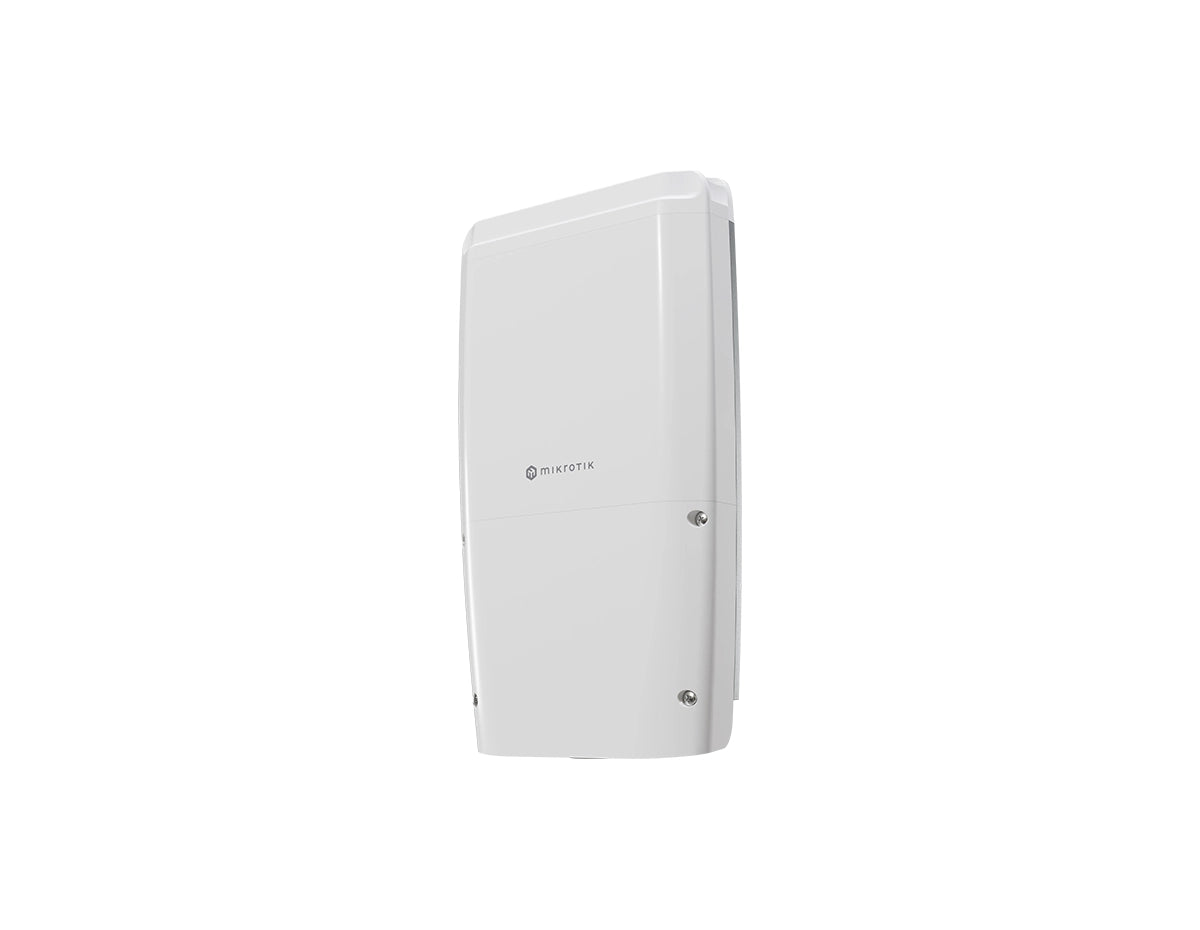

Mikrotik CRS305-1G-4S+OUT Switch

MikroTik CRS305-1G-4S+OUT Switch

The CRS305-1G-4S+OUT is a robust outdoor switch that is equipped with a modern ARM CPU, 256 MB RAM, four 10-Gigabit SFP+ ports, and a Gigabit Ethernet port for management or PoE-in power. This product offers three different power options: PoE-in, a 2-pin terminal, and a standard DC jack. It supports a wide input voltage range of 24-57V and is highly efficient, with a maximum power consumption of only 7W without attachments.

Quick Specs:

• 1x 10/100/1000 Ethernet Port
• 4x 10G SFP+ ports uplink
• 98DX226S,1 core, 800 MHz CPU
• 256 MB RAM

Please see the related tabs for the CRS305-1G-4S+OUT datasheet and compatible accessories.

Properties	MikroTik CRS305-1G-4S+OUT
Description	Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports
Product Family	CRS Series
Product Type	Ethernet Switch
Quick specifications	4 SFP+ ports 1 Gigabit Ethernet ports Non-Blocking throughput: 41 Gbps Switching capacity: 82 Gbps Forwarding rate: 61 Mpps 2 DC jack for redundancy Maximum power consumption: 12 W (with attachments 18 W) Supports PoE+ IEEE 802.3at/af and passive PoE 12-57 V Metal enclosure Fanless
Ports
10/100/1000 Ethernet ports	1
SFP+ cages	4
PoE in	802.3af/at
Extras	CPU temperature monitor
Dimensions	141 x 115 x 28 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Cooling type	Passive
Max power consumption	12 W
PoE in input Voltage	12-57 V
Power options	8-28V, 24V 1.2A PSU included

Specifications	CRS305-1G-4S+OUT
Memory	512 MB
Flash Storage size	16 MB
CPU	98DX3236 800 MHz
CPU core count	1
Switch chip model	98DX3236
OS	SwOS / RouterOS (Dual boot)
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP66

Accessories
24V 0.8A power adapter
K-41 fastening set
K-72 fastening set
Gigabit PoE injector
Hose clamp 1
