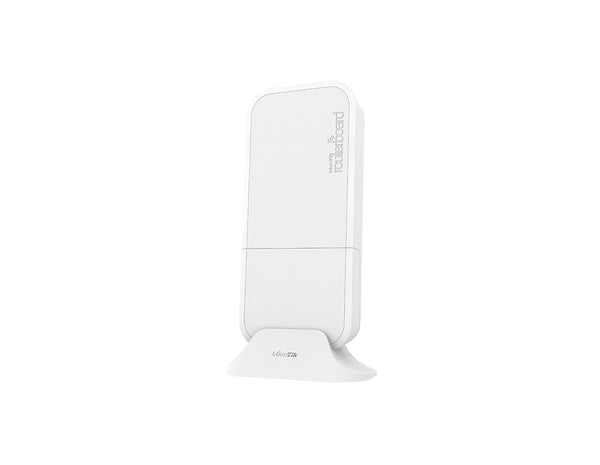

MikroTik wAP ac LTE6 kit Dual-Band Access Point with LTE6

Name: MikroTik wAP ac LTE6 kit Dual-Band Access Point with LTE6
Brand: Mikrotik
SKU: RBwAPGR-5HacD2HnD&R11e-LTE6-NEW
Price: 205.00 USD
Availability: InStock

Part Number: RBWAPGR-5HACD2HND-R11E-LTE6

Technical Details

Dual-band Wi-Fi, CAT6 LTE modem, 2× Gigabit ports, RouterOS L4, IP54 enclosure

$205.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Reliable Connectivity Anywhere with LTE6 and Dual-Band Wi-Fi

The MikroTik wAP ac LTE6 kit combines a weatherproof design with dual-band wireless performance and an integrated CAT6 LTE modem. Engineered for reliable connectivity indoors or outdoors, it ensures fast, stable internet access even in areas with weak signal coverage. With two Gigabit Ethernet ports and RouterOS L4, it adapts seamlessly to diverse network needs.

Key Benefits & Features

CAT6 LTE modem: Achieves up to 300 Mbps downlink with carrier aggregation for faster, more stable mobile internet.
Dual-band wireless: Concurrent 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) Wi-Fi for flexible device coverage.
Rugged weatherproof housing: IP54-rated design withstands harsh environments, temperatures from -30°C to +60°C.
Gigabit Ethernet: Two 10/100/1000 ports support wired networking or LTE backup routing.
RouterOS L4 license: Advanced routing, firewall, and management features out of the box.

Ideal Use Cases

Branch offices needing LTE backup alongside wired internet.
Rural or remote deployments with limited broadband options.
Outdoor Wi-Fi for hospitality, retail, or public areas.
SMBs requiring a compact, versatile LTE-enabled access point.

Technical Specifications

CPU: Quad-core IPQ-4018, 716 MHz
Memory: 128 MB RAM
Storage: 16 MB Flash
Wireless: 2.4 GHz 802.11b/g/n, 5 GHz 802.11a/n/ac
LTE: Category 6 modem, 300 Mbps down / 50 Mbps up
SIM Slot: 1× Micro SIM
Ethernet: 2 × Gigabit ports
Power Input: 10–57 V DC, PoE in (802.3af/at)
Max Power Consumption: 16 W
Operating Temperature: -30°C to +60°C

Boost Your Network with LTE6 Performance

Get fast, reliable connectivity with the MikroTik wAP ac LTE6 kit. Order today and upgrade your wireless edge.

Properties

Model	wAP ac LTE6 kit (RBwAPGR-5HacD2HnD&R11e-LTE6)
Product Type	Dual-band Wireless Access Point with LTE Cat 6 Modem
CPU	Quad-core IPQ-4018, 716 MHz (488–896 MHz auto range)
RAM	128 MB
Storage	16 MB Flash
Ethernet Ports	2 × 10/100/1000 Mbps
Wireless Standards	2.4 GHz 802.11b/g/n dual-chain (Wi-Fi 4); 5 GHz 802.11a/n/ac dual-chain (Wi-Fi 5)
Antenna Gain	2.5 dBi (Wi-Fi); 4 dBi (LTE, U.FL connector)
LTE Category	Cat 6 (300 Mbps DL / 50 Mbps UL), 2xCA
3G Support	Category R7 (21 Mbps DL / 5.76 Mbps UL); R8 (42.2 Mbps DL / 5.76 Mbps UL)
2G Support	Class 12
SIM Slots	1 × Micro SIM
Operating System	RouterOS, License Level 4
Operating Temperature	−30 °C to +60 °C
MTBF	Approx. 100,000 hours at 25 °C
Dimensions (H × W × D)	185 × 85 × 30 mm
IP Rating	IP54
Certifications	CE, FCC, IC, EAC, RoHS

Specifications

Power Inputs	2 (DC jack, PoE-IN)
Input Voltage (DC Jack)	10–57 V
Input Voltage (PoE-IN)	18–57 V (Passive PoE) or 802.3af/at
Max Power Consumption	16 W (10 W without attachments)
Cooling	Passive
LTE (FDD) Bands	1 (2100), 2 (1900), 3 (1800), 5 (850), 7 (2600), 8 (900), 12 (700), 17 (700), 20 (800), 25 (1900), 26 (850)
LTE (TDD) Bands	38 (2600), 39 (1900), 40 (2300), 41n (2500)
3G Bands	1 (2100), 2 (1900), 5 (850), 8 (900)
2G Bands	2 (1900), 3 (1800), 5 (850), 8 (900)
Supported LTE CA Bands	1+1/5/8/20; 2+2/5/12/17; 3+3/5/7/8/20; 7+7/8/12/20; 8+8; 12+12; 38+38; 39+39/41; 40+40; 41+41
2.4 GHz Wireless Rates	1 Mbps: 22 dBm / −100 dBm; 11 Mbps: 22 dBm / −94 dBm; 6 Mbps: 23 dBm / −95 dBm; 54 Mbps: 19 dBm / −78 dBm; MCS0: 23 dBm / −95 dBm; MCS7: 18 dBm / −73 dBm
5 GHz Wireless Rates	6 Mbps: 24 dBm / −95 dBm; 54 Mbps: 20 dBm / −78 dBm; MCS0: 24 dBm / −95 dBm; MCS7: 19 dBm / −73 dBm; MCS9: 17 dBm / −68 dBm
Peripherals	1 × MiniPCIe slot; Micro SIM slot; PCB temperature and voltage monitor

Accessories

Included	24 V 0.8 A power adapter; Gigabit PoE injector; Fastening set; Desktop stand; Metal ring; Plastic straps; wAP mount; wAP ceiling mount bracket; Locking set
Optional	QMP mount; QM mount
