Mikrotik SXT SA5 Antenna (RBSXTG-5HPnD-SAr2-US)

Mikrotik SXT SA5 Antenna (RBSXTG-5HPnD-SAr2-US)

Name: Mikrotik SXT SA5 Antenna (RBSXTG-5HPnD-SAr2-US)
Brand: Mikrotik
Price: 99.00 USD
Availability: OutOfStock

Part Number: RBSXTG-5HPND-SAR2-US

Technical Details

14dBi integrated Sector AP, 90 degrees beamwidth, Gigabit Ethernet, with case

$99.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

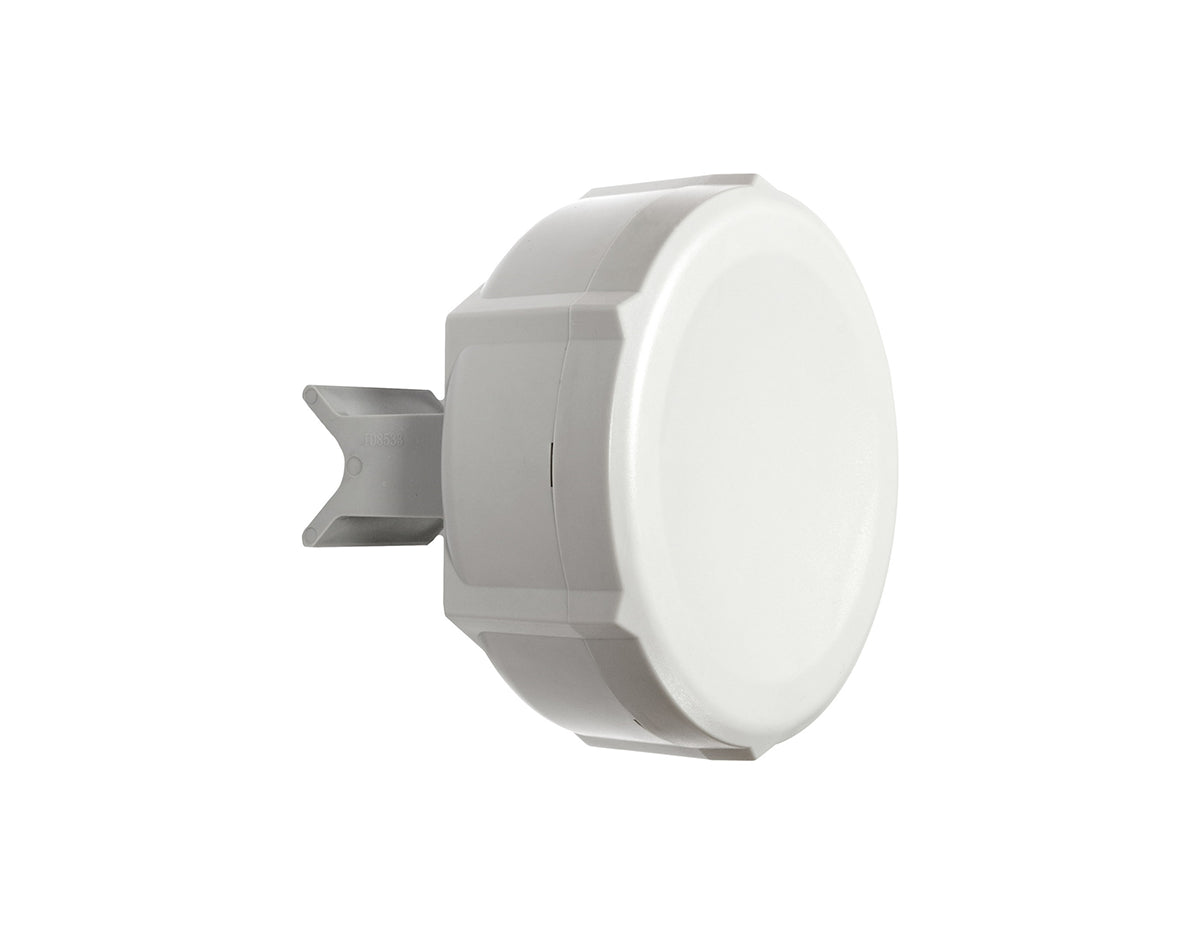

MikroTik RBSXTG-5HPND-SAR2-US Antenna

The SXTG-5HPnD-SAr2 is an affordable, high-speed 5GHz outdoor wireless sector access point featuring a 90-degree antenna for expanded coverage. It is equipped with a pre-assembled enclosure and a built-in 14dBi antenna, this package includes all necessary components for quick installation. The RBSXTG-5HPnD-SAr2-US (USA) model is preset to operate within the 5170-5250MHz and 5725-5835MHz frequency bands, in compliance with country-specific regulations. This lock is permanent and cannot be altered.

Quick Specs:

1x 10/100/1000 Ethernet Ports
PoE-in: Passive PoE
AR9344, 1 core, 600MHz
64MB RAM

Please see the related tabs for the SXTG-5HPnD-SAr2-US datasheet and compatible accessories.

Properties

Properties	MikroTik SXT SA5 RBSXTG-5HPND-SAR2-US
Description	14dBi integrated Sector AP, 90 degrees beamwidth, Gigabit Ethernet
Product Family	SXT Series
Product Type	Access Point
10/100/1000 Ethernet ports	1
Number of USB ports	1 USB type A
Extras	PCB temperature monitor Voltage Monitor Beeper
Dimensions	140 x 140 x 56mm
Weight without packaging, adapters and cables	265g
Number of DC inputs	1 (PoE-IN)
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	6-30 V

Specifications

Specifications	RBSXTG-5HPND-SAR2-US
Memory	64 MB
NAND Storage size	128 MB
CPU	AR9344 600 MHz
CPU core count	1
OS	RouterOS level 3 license
Wireless capabilities
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	14
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4
Wireless specifications
5 GHz
6MBit/s	Transmit (dBm): 30 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 27 Receive Sensitivity: -80
MCS0	Transmit (dBm): 30 Receive Sensitivity: -95
MCS7	Transmit (dBm): 26 Receive Sensitivity: -73
MTBF	Approximately 200.000 hours at 25C
Temperature	-30°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Accessories

24V 0.8A power adapter

Metal ring (one)

Gigabit PoE injector

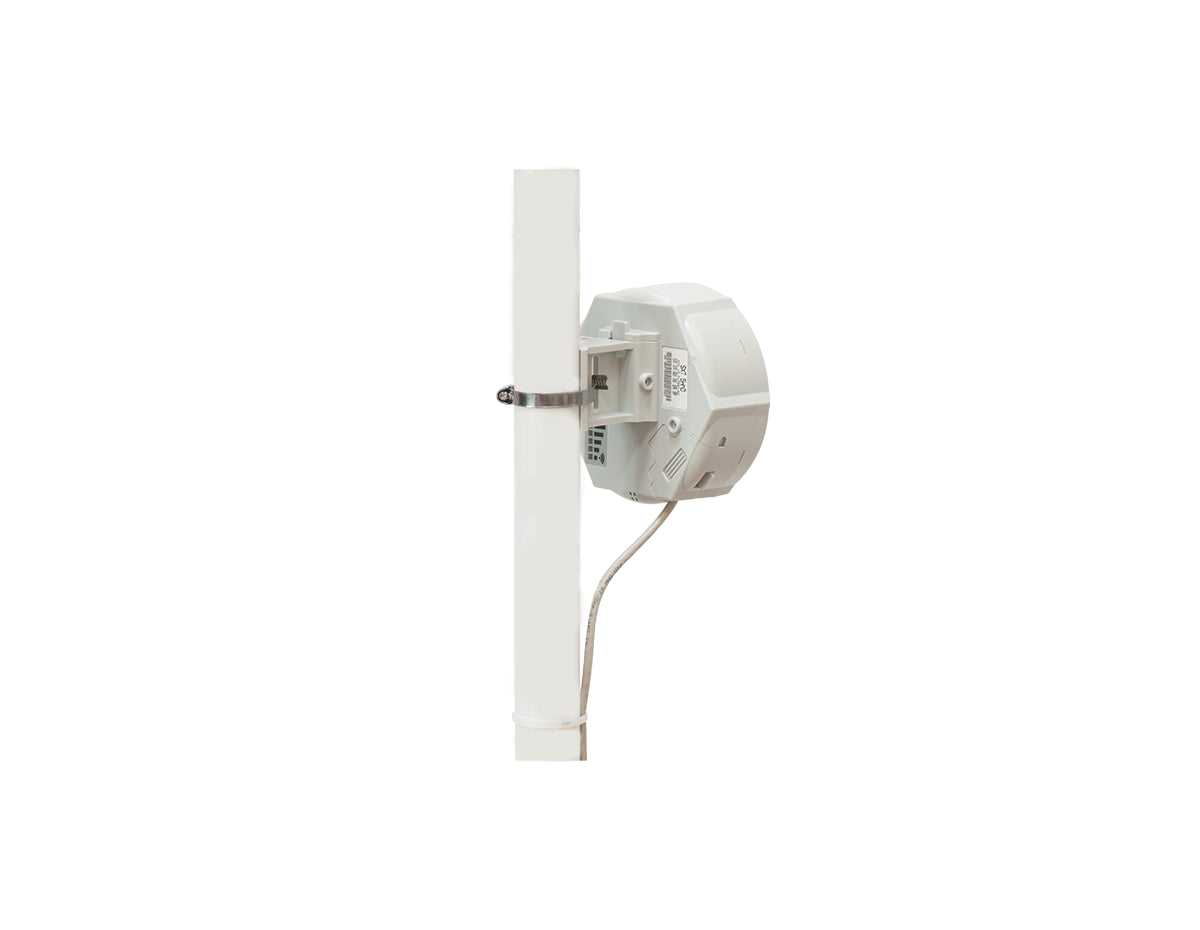

Pole mounting bracket
