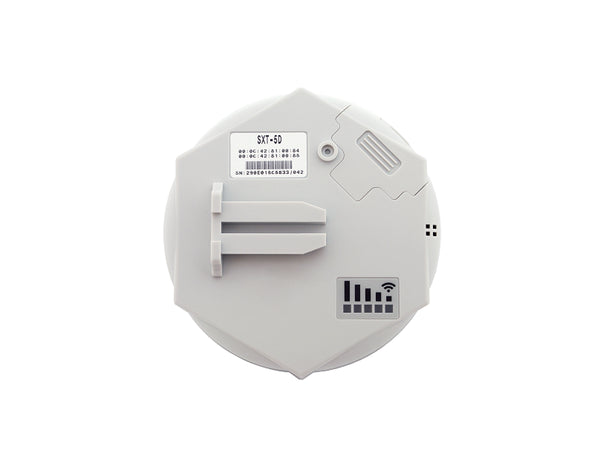

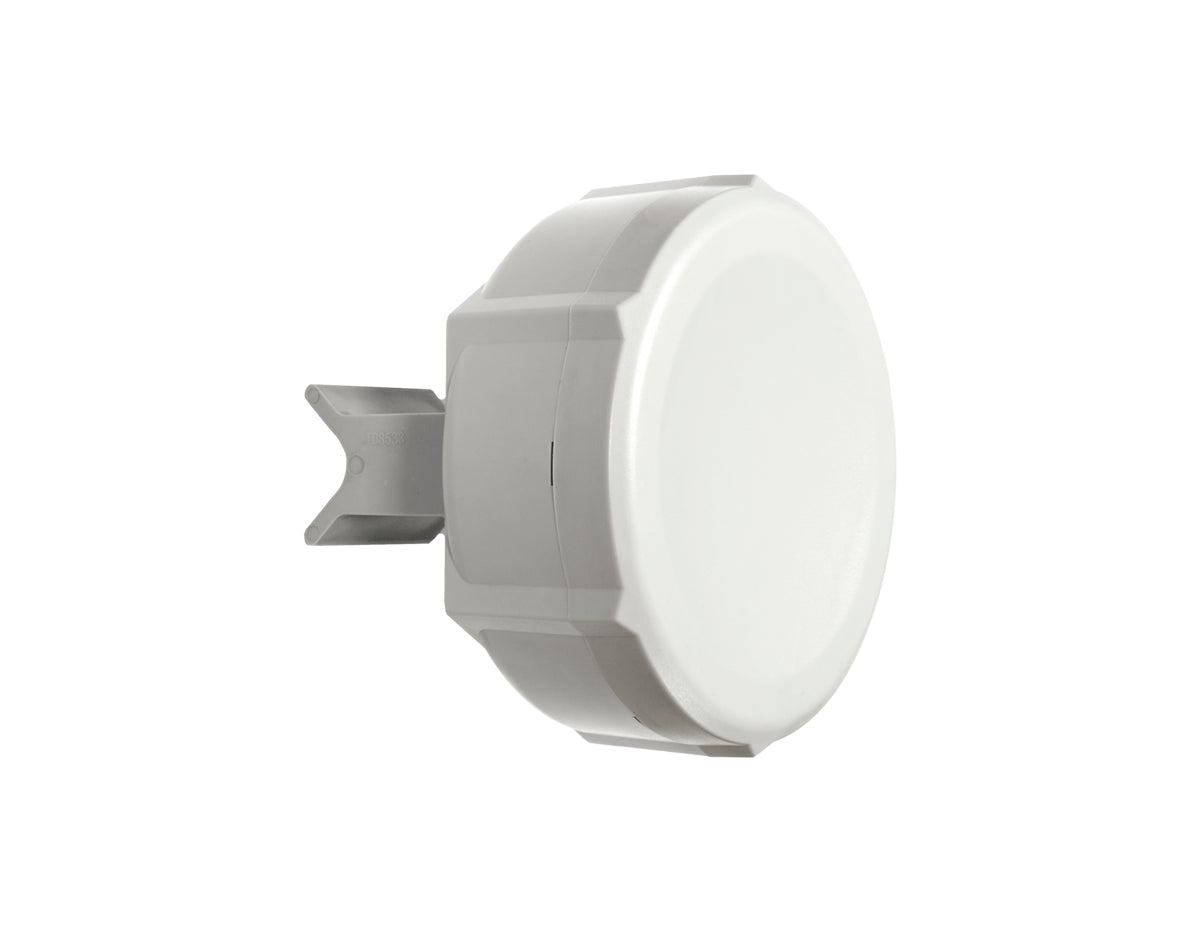

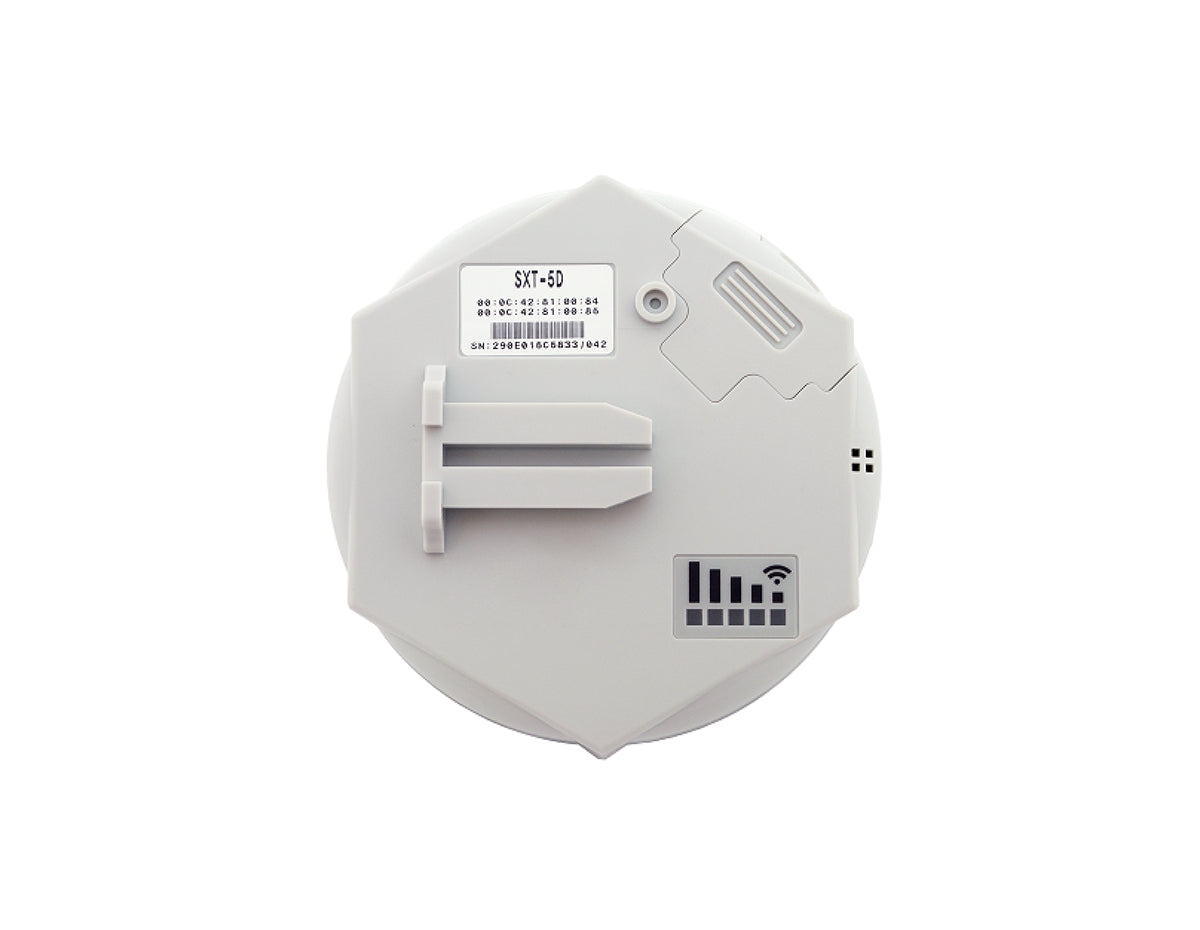

Mikrotik SXT SA5 ac Antenna (RBSXTG-5HPacD-SA-US)

Mikrotik SXT SA5 ac Antenna (RBSXTG-5HPacD-SA-US)

Name: Mikrotik SXT SA5 ac Antenna (RBSXTG-5HPacD-SA-US)
Brand: Mikrotik
Price: 125.00 USD
Availability: OutOfStock

Part Number: RBSXTG-5HPACD-SA-US

Technical Details

802.11ac up to 540Mbit, high output, wide beamwidth sector antenna

$125.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RBSXTG-5HPacD-SA-US Antenna

The RBSXTG-5HPacD-SA model features a 90-degree wide beam-width sector antenna and is equipped to support 802.11ac mode. It is also compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols, and includes a Gigabit Ethernet port. This product supports passive PoE and 802.3af/at PoE input (15-60V). The RBSXTG-5HpacD-Sar2-US (USA) is factory locked for 5170-5250 MHz and 5725-5835 MHz frequencies. This lock can not be removed due to country regulations.

Quick Specs:

1x 10/100/1000 Ethernet Port
QCA9557, 1 core, 720MHz CPU
Low latency Point to Point
RouterOS

Please see the related tabs for the RBSXTG-5HPacD-SA-US datasheet and compatible accessories.

Properties

Properties	MikroTik SXT SA5 ac RBSXTG-5HPACD-SA-US
Description	802.11ac up to 540Mbit, high output, wide beamwidth sector antenna
Product Family	SXT Series
Product Type	Access Point
Features	Extended temperature range -30C to +80C • Up to 540Mbps throughput • Low latency Point to Point • Supports passive PoE and 802.3af/at PoE input (15-60V)
10/100/1000 Ethernet ports	1
Number of USB ports	1 USB type A
Extras	PCB temperature monitor Voltage Monitor Beeper
Dimensions	140 x 140 x 56mm
Weight without packaging, adapters and cables	265g
Number of DC inputs	1 (PoE-IN)
Max power consumption	12 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

Specifications

Specifications	RBSXTG-5HPACD-SA-US
Memory	128 MB
NAND Storage size	128 MB
CPU	QCA9557 720 MHz
CPU core count	1
OS	RouterOS level 3 license
Wireless capabilities
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	14
Wireless 5 GHz chip model	QCA9892
Wireless 5 GHz generation	Wi-Fi 5
Wireless specifications
5 GHz
6MBit/s	Transmit (dBm): 31 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 28 Receive Sensitivity: -81
MCS0	Transmit (dBm): 30 Receive Sensitivity: -96
MCS7	Transmit (dBm): 27 Receive Sensitivity: -77
MCS9	Transmit (dBm): 22 Receive Sensitivity: -72
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Accessories

24V 0.8A power adapter

Metal ring (one)

Gigabit PoE injector

Pole mounting bracket
