Mikrotik RBcAPL-2nD Access Point

Name: Mikrotik RBcAPL-2nD Access Point
Brand: Mikrotik
Price: 29.99 USD
Availability: OutOfStock

Part Number: RBCAPL-2ND

Technical Details

Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure

$29.99

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RBcAPL-2ND Access Point

The RBcAPL-2nD is a compact access point device designed for deployment in public areas and commercial establishments such as hotels, airports, and shopping centers. This device is compatible with 802.11b/g/n standards and can be powered using power over Ethernet. It is particularly well-suited for integration with the MikroTik CAPsMAN, a system manager for controlled access points, enabling centralized management of multiple access point devices. Additionally, the RBcAPL-2nD can function independently as a standalone access point, leveraging the complete capabilities of RouterOS.

Quick Specs:

1x 10/100 Ethernet Port
PoE-in: 802.3af/at
QCA9533,1 core, 650 MHz CPU
64 MB RAM

Please see the related tabs for the RBcAPL-2nD datasheet and compatible accessories.

Properties

Properties	Mikrotik RBcAPL-2nD Access Point
Description	The MikroTik RBcAPL-2nD is a compact and affordable wireless access point, perfect for extending Wi-Fi coverage in small to medium-sized areas. With easy setup and 2.4GHz support, it's an ideal choice for homes, offices, or small businesses.
Product Family	MikroTik cAP Access Point Series
Product Type	Access Point

Specifications

Specifications	Mikrotik RBcAPL-2nD Access Point
Architecture	MIPSBE
CPU	QCA9533
CPU core count	1
CPU nominal frequency	650 MHz

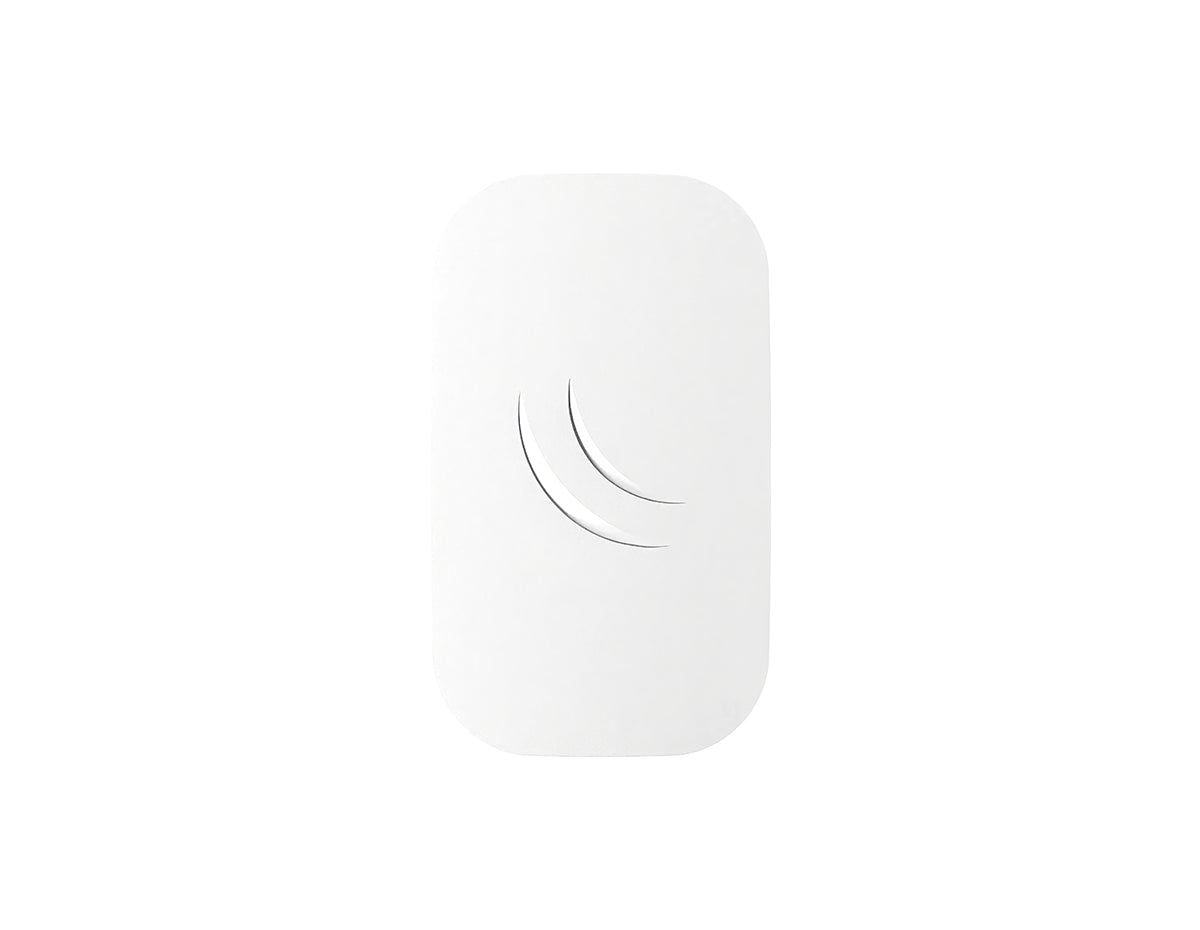

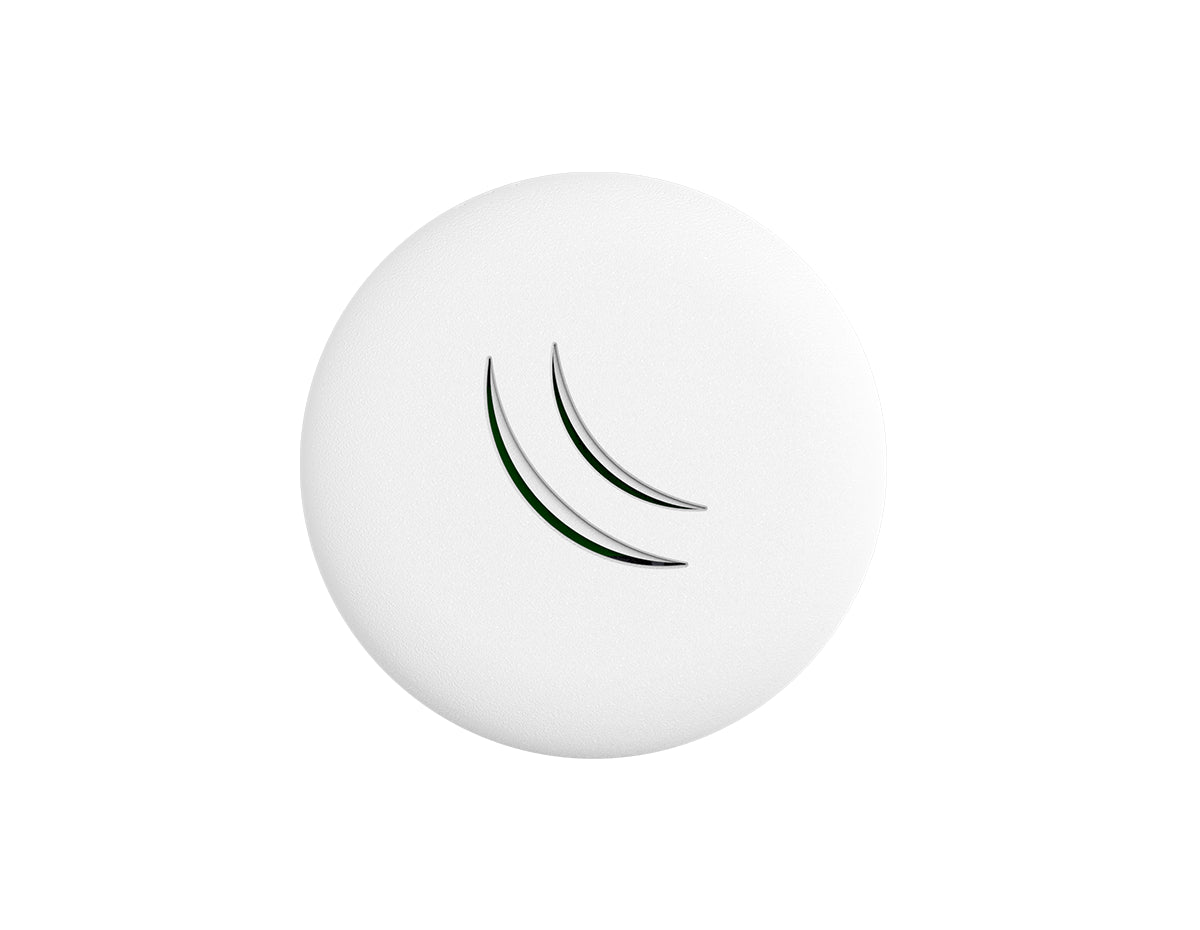

Dimensions	Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	(-40°C to 70°C)
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	45413
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of USB ports	1
USB slot type	microUSB type AB
Max USB current (A)	1
Powering
MicroUSB input Voltage	5 V
Number of DC inputs	2 (PoE-IN, MicroUSB)
Max power consumption	4 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	10-60 V
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20
Wireless specifications (2.4 Gz)
1MBit/s	Transmit (dBm) : 22 Receive Sensitivity : -96
11MBit/s	Transmit (dBm) : 22 Receive Sensitivity : -89
6MBit/s	Transmit (dBm) : 20 Receive Sensitivity : -93
54MBit/s	Transmit (dBm) : 18 Receive Sensitivity : -74
MCS0	Transmit (dBm) : 20 Receive Sensitivity : -93
MCS7	Transmit (dBm) : 16 Receive Sensitivity : -71
