Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US)

Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US)

Name: Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US)
Brand: Mikrotik
SKU: RB962UiGS-5HacT2HnT-US-NEW
Price: 117.00 USD
Availability: InStock

Part Number: RB962UIGS-5HACT2HNT-US

Technical Details

Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage

$129.00

$117.00

9% OFF

You Save: $12.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

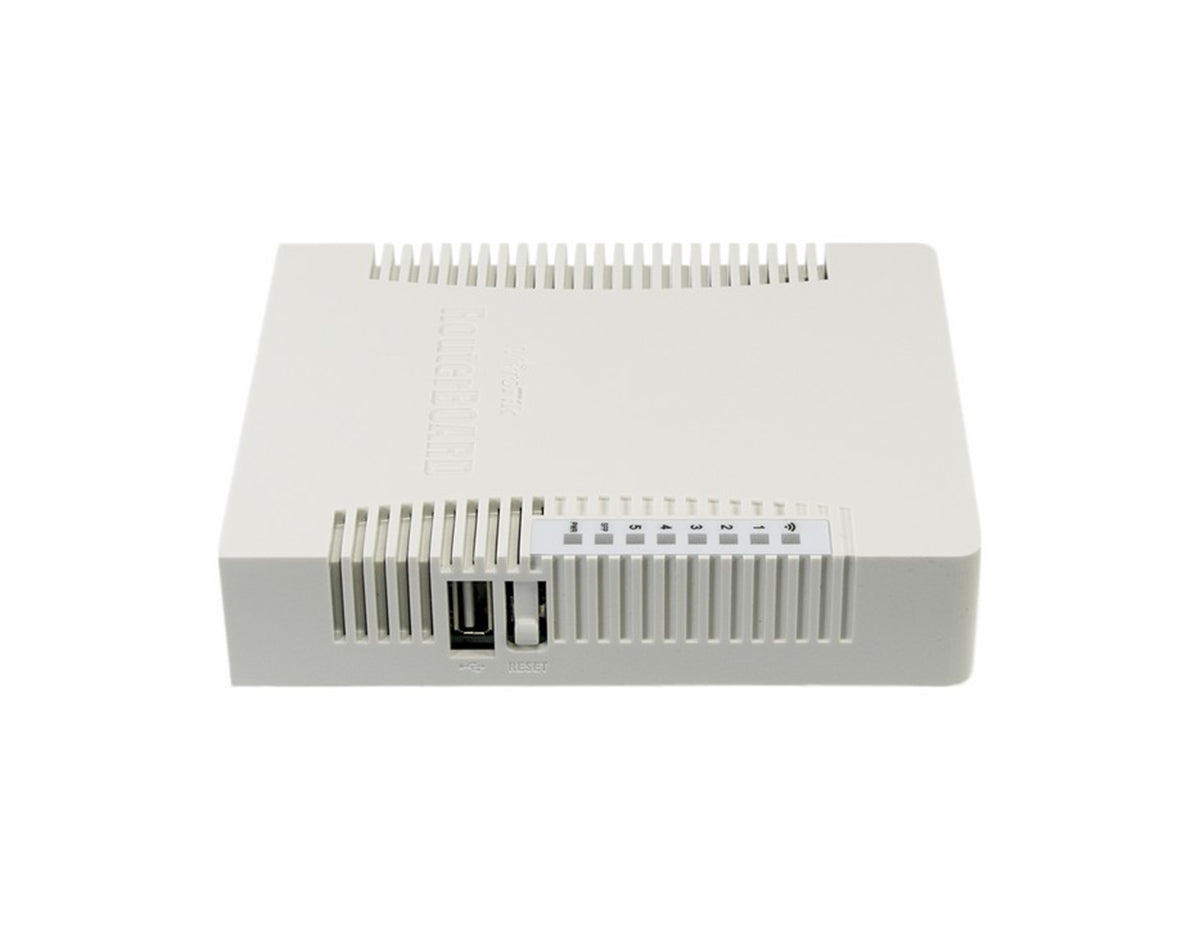

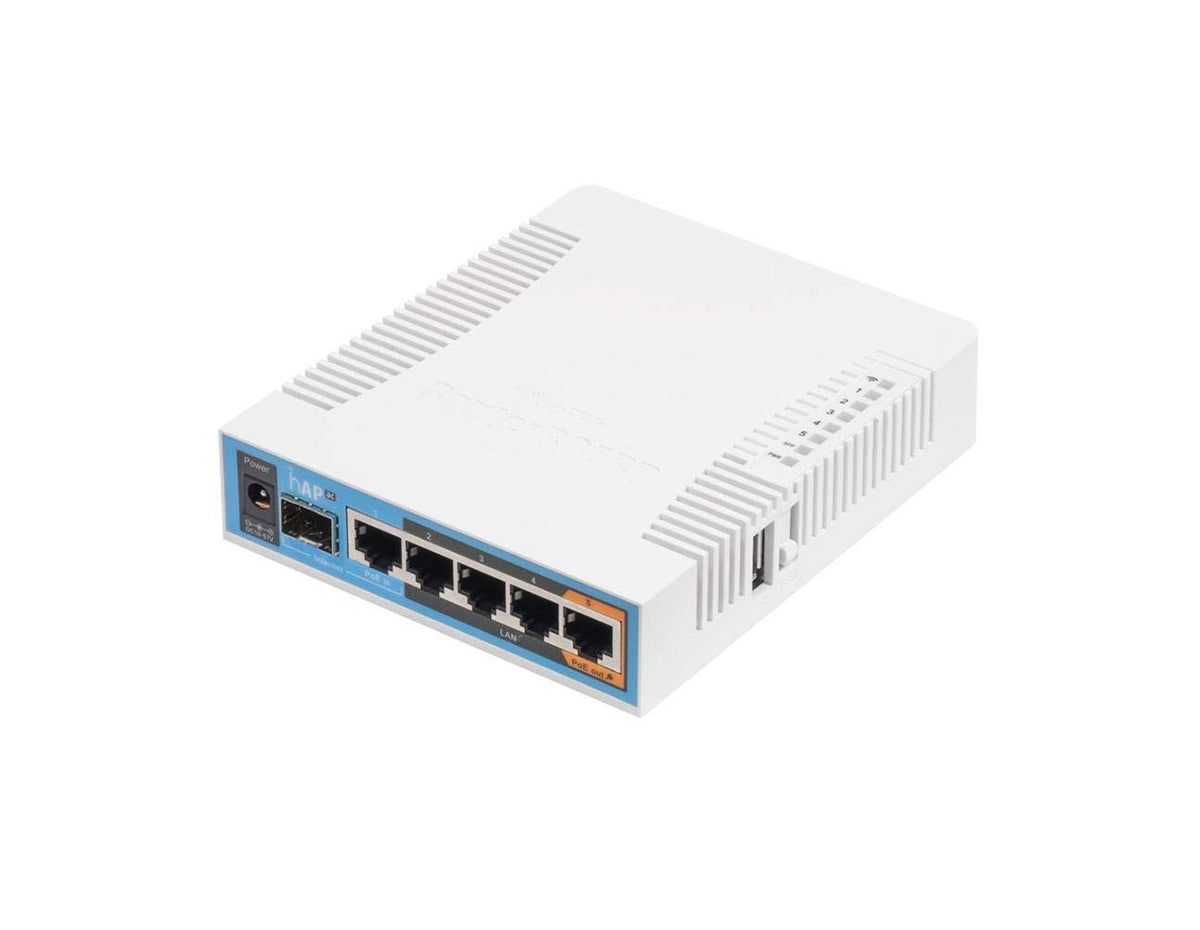

MikroTik RB962UIGS-5HACT2HNT-US Access Point

The RB962UIGS-5HACT2HNT-US is a versatile wireless device designed for use in home or office environments. It operates on dual bands and features Gigabit ports to maximize the benefits of 802.11ac technology, while also ensuring compatibility with older devices operating on 2GHz 802.11 b/g/n and 5GHz a/n modes. It is equipped with omnidirectional antennas, it can be mounted in any location, and its high-power transmitter ensures reliable coverage for mobile devices in homes, offices, or public spaces. The RB962UiGS-5HacT2HnT-US (USA) is factory-locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.

Quick Specs:

5x 10/100/1000 Ethernet ports
1 SFP port uplink
PoE Out Ports: Ether5
USB port 3G/4G modem

Please see the related tabs for the RB962UIGS-5HACT2HNT-US datasheet and compatible accessories.

Properties

Properties	MikroTik hAP ac RB962UIGS-5HACT2HNT-US
Description	Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain
Product Family	hAP Series
Product Type	Access Point
Features	• Triple-chain wireless 2.4 GHz • Triple-chain wireless 5 GHz • 720 MHz CPU • 128 MB of RAM • Five x Gigabit Ethernet ports • SFP cage • Passive PoE output on port 5 • USB port for 3G/4G modem
10/100/1000 Ethernet ports	5
SFP	1
Number of USB ports	1
Extras	PCB temperature monitor Voltage Monitor Beeper
Dimensions	114 x 137 x 29mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	11-57 V
Max power consumption	17 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	11-57 V
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	700 mA
Max out per port output (input 30-57 V)	350 mA
Max total out (A)	700 mA

Specifications

Specifications	RB962UIGS-5HACT2HNT-US
Memory	128 MB
Flash Storage size	16 MB
CPU	QCA9558 720 MHz
CPU core count	1
OS	RouterOS level 4 license
Wireless 2.4 GHz Max data rate	450 Mbit/s
Wireless 2.4 GHz number of chains	3
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	QCA9558
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	1300 Mbit/s
Wireless 5 GHz number of chains	3
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9880
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC1750
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 29 Receive Sensitivity: -100
11MBit/s	Transmit (dBm): 29 Receive Sensitivity: -94
6MBit/s	Transmit (dBm): 29 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 26 Receive Sensitivity: -81
MCS0	Transmit (dBm): 29 Receive Sensitivity: -96
MCS7	Transmit (dBm): 25 Receive Sensitivity: -77
5 GHz
6MBit/s	Transmit (dBm): 28 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 25 Receive Sensitivity: -81
MCS0	Transmit (dBm): 28 Receive Sensitivity: -96
MCS7	Transmit (dBm): 24 Receive Sensitivity: -77
MCS9	Transmit (dBm): 21 Receive Sensitivity: -72
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Accessories

24V 1.2A power adapter
