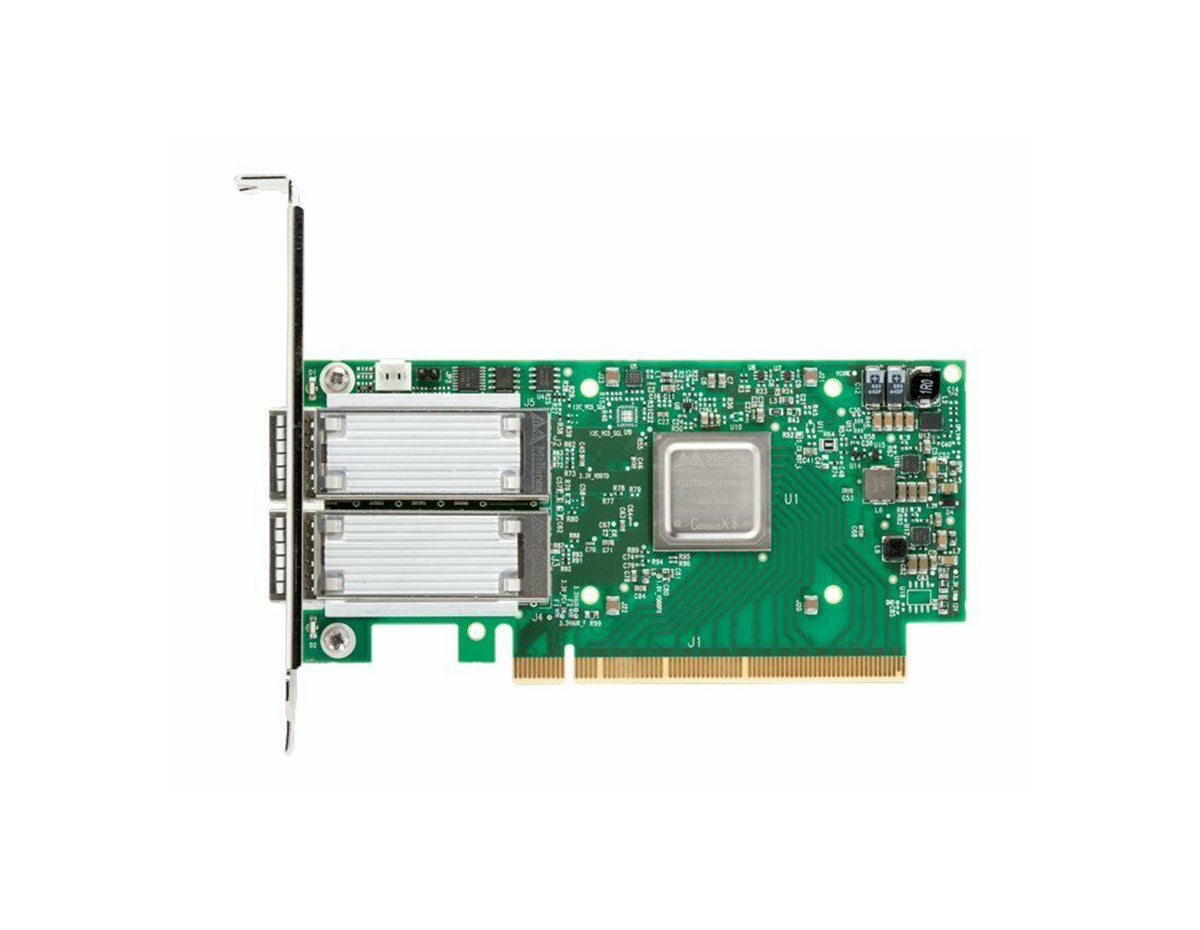

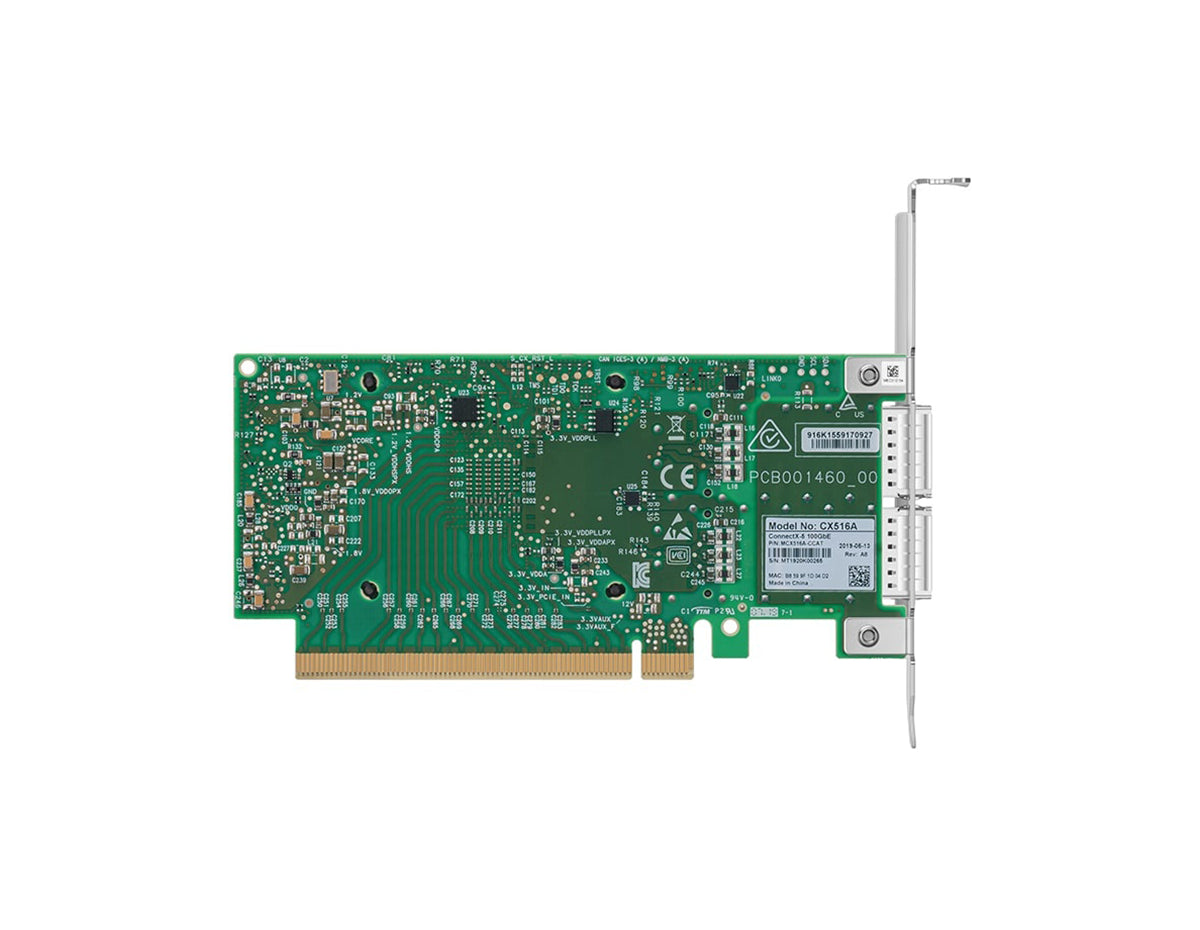

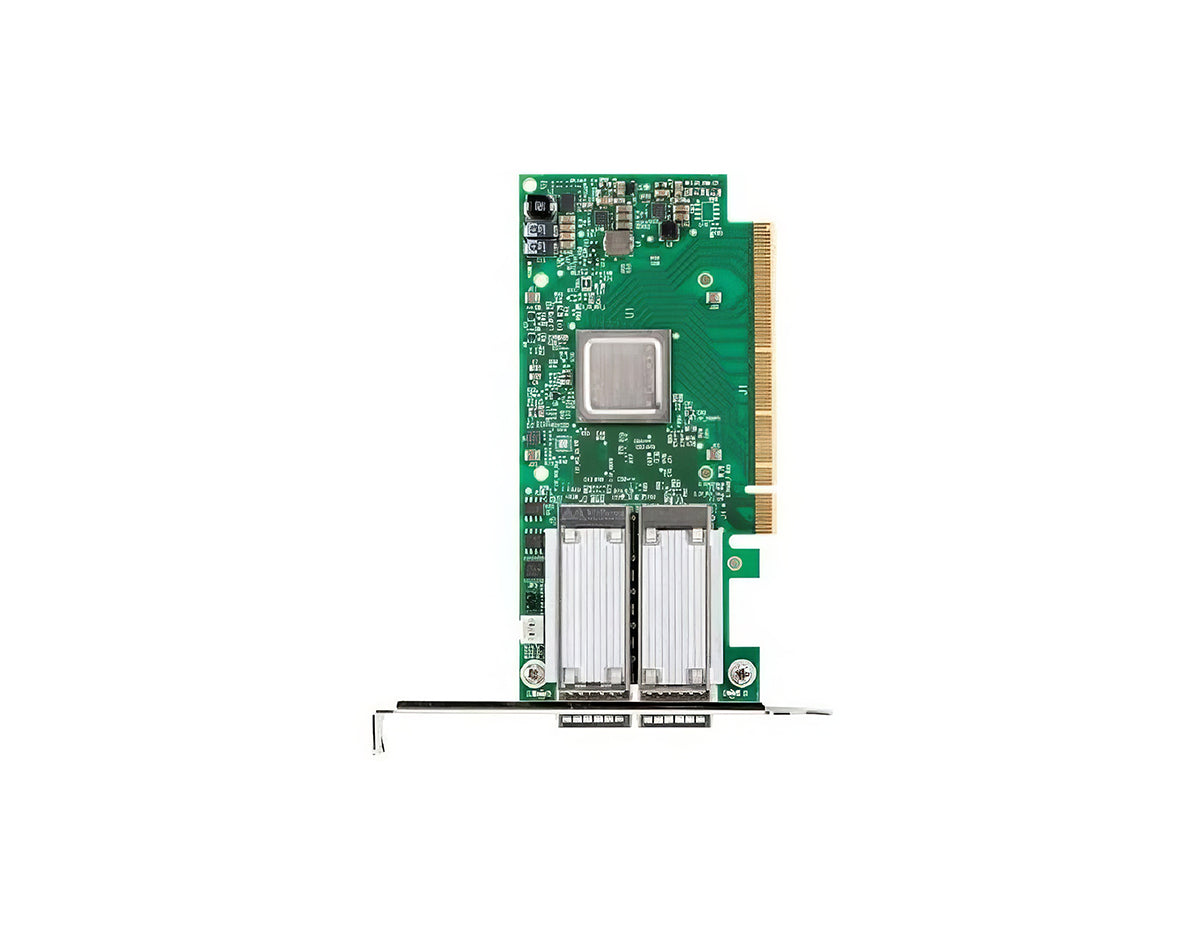

MELLANOX MCX516A-CDAT NETWORK ADAPTER
| Model: | MCX516A-CDAT |
| Detail: | Mellanox MCX516A-CDAT Network Adapter The Mellanox MCX516A-CDAT is a member of the ConnextX-5 Ethernet Adapter Cards family. The Mellanox MCX516A-CDAT ConnectX-5 EN 100-Gigabit Ethernet Adapter is engineered to deliver |
| List Price: | |
| Price: | $698.00 |
| You Save: | $475.15 (41% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Mellanox MCX516A-CDAT Network Adapter
The Mellanox MCX516A-CDAT is a member of the ConnextX-5 Ethernet Adapter Cards family. The Mellanox MCX516A-CDAT ConnectX-5 EN 100-Gigabit Ethernet Adapter is engineered to deliver exceptional networking capabilities, including ultra-low latency, high bandwidth, and superior performance. Specifically designed for data center applications, this adapter incorporates advanced features to enhance performance, minimize latency, and optimize data center efficiency. This product is capable of delivering up to 100Gb/s of throughput per pot. It is equipped with 16x PCIe 4.0 and Dual-Port QSFP 28.
Quick Specs:
- 16x PCIe 4.0
- Dual-port QSFP28
- Tall Bracket
- RoHS-R6
Please see the related tabs for the MCX516A-CDAT datasheet and compatible accessories.
Specifications
| Size | 2.71 in x 5.6 in (68.90 mm x 142.24 mm) |
| Message Rate | 215 Mpps |
| Sub 0.8 µs Latency | Yes |
| Supported Architectures | x86, Power, Arm |
| Airflow (Passive Cable) | 400 LFM |
| Airflow (Active 1.5W Cable) | 600 LFM |
| Airflow (Active 2.5W Cable) | 850 LFM |
| Airflow (Active 3.5W Cable) | 1000 LFM |
| Airflow (Active 5W Cable) | 1400 LFM |
| Operating Temperature | Operational: 0°C to 55°C, Non-operational: -40°C to 70°C |
| Humidity | Operational: 10% to 85% relative humidity, Non-operational: 10% to 90% relative humidity |
| Altitude (Operational) | 3050 m |
| Regulatory Compliance | Safety: CB / cTUVus / CE, EMC: CE / FCC / VCCI / ICES / RCM, RoHS: RoHS compliant |
Properties
| Product Name | Mellanox MCX516A-CDAT Network Adapter |
| Product Description | The Mellanox MCX516A-CDAT ConnectX-5 EN 100-Gigabit Ethernet Adapter is engineered to deliver exceptional networking capabilities, including ultra-low latency, high bandwidth, and superior performance. Specifically designed for data center applications, this adapter incorporates advanced features to enhance performance, minimize latency, and optimize data center efficiency. It delivers up to 100Gb/s of throughput per port and features 16x PCIe 4.0 and Dual-Port QSFP28 connectors. |
| Product Family | Mellanox ConnectX-5 Series |
| Product Type | Network Adapter Card |
| Connector | Dual QSFP28 (copper and optical) |
| Data Rate | Ethernet: 1/10/25/40/50/100 Gb/s, InfiniBand: SDR/DDR/QDR/FDR/EDR |
| PCI Express Gen 3.0/4.0 | SERDES @ 8.0 GT/s / 16.0 GT/s, 16 lanes (2.0 and 1.1 compatible) |
| Voltage | 12V |
| Maximum Current | 100 mA |
| Typical Power (Passive Cable) | 19.3 W |
| Maximum Power (Passive Cable) | 23.4 W |
| Maximum Power (Active 1.5W Cable) | 26.8 W |
| Maximum Power (Active 2.5W Cable) | 29.0 W |
