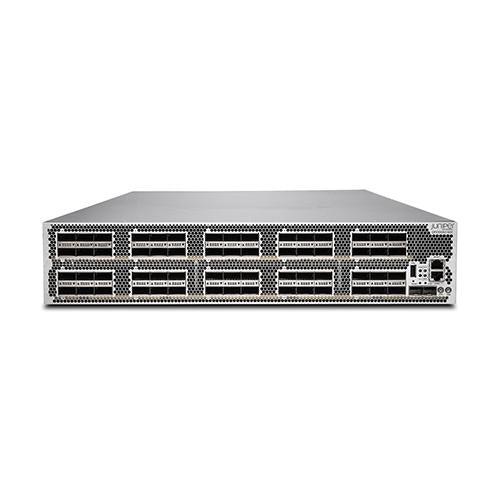

JUNIPER QFX10002-60C SWITCH
| Model: | QFX10002-60C |
| Detail: | QFX10002, 60 x 100GbE QSFP28 ports or 60 x 40GbE QSFP+ ports or 192 x 10 GbE SFP+ ports, 4 x 1600 W AC power supply, 4 x power cable, 3 x fan tray |
| List Price: | |
| Price: | $174,358.80 |
| You Save: | $33,211.20 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The QFX10000 line of modular data center spine and core Ethernet switches delivers industry-leading scale, flexibility and openness, with a design that enables the seamless transition from 10GbE and 40GbE interface speeds to 100GbE. These high- performance, forward-looking switches are designed to help cloud and data center operators extract maximum value and intelligence from their network infrastructure well into the future.Accessories
| Accessories | |
| JPSU-1600W-AC-AFO | QFX10002 1600 W AC power supply |
| JNP10002-FAN1 | Fan for JNP10002-60C |
| JNP10002-60C-CHAS | JNP system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+, chassis only |
| Pluggable Optics | |
| JNP-QSFP-100G-SR4 | QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel multimode fiber-optic (MMF) |
| JNP-QSFP-100G-LR4 | QSFP28 100GBASE-LR4 optics for up to 10 km transmission over serial single-mode fiber-optic (SMF) |
| JNP-QSFP-100G-PSM4 | QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF |
| JNP-QSFP-100G-CWDM | QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF |
| JNP-QSFP28-AOC-10M | 100GbE QSFP28 to QSFP28 active optical cables, 10 m |
| JNP-QSFP-40GE-IR4 | QSFP+ 40GBASE-IR4 40 gigabit optics, 1,310 nm for up to 2 km transmission on SMF |
| JNP-QSFP-40G-LR4 | QSFP+ 40GBASE-LR4 40 gigabit optics, 1,310 nm for up to 10 km transmission on SMF |
| JNP-QSFP-40G-LX4 | QSFP+ 40GBASE-LX4 40 gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber |
| JNP-QSFP-4X10GE-IR | QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km) |
| JNP-QSFP-4X10GE-LR | QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km) |
| QFX-QSFP-40G-ESR4 | QSFP+ 40GBASE-ESR4 40 gigabit optic. 300 m (400 m) with OM3 (OM4) MMF |
| QFX-QSFP-40G-SR4 | QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF |
| JNP-QSFP-DAC-10MA | QSFP+ to QSFP+ Ethernet direct attach copper (DAC) (twinax copper cable) 10 m active |
| JNP-QSFP-DAC-7MA | QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 7 m active |
| JNP-QSFP-DAC-5M | QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m passive |
| JNP-QSFP-DAC-5MA | QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m active |
| QFX-QSFP-DAC-3M | QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 3 m passive |
| QFX-QSFP-DAC-1M | QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 1 m passive |
| JNP-QSFP-DACBO-10M | QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 10 m |
| JNP-QSFP-DACBO-7MA | QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 7 m |
| JNP-QSFP-DACBO-5MA | QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 5 m |
| QFX-QSFP-DACBO-3M | QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 3 m |
| QFX-QSFP-DACBO-1M | QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 1 m |
| QFX-SFP-10GE-ER | SFP+ 10GBASE-ER 10-Gigabit Ethernet optics, 1,550 nm for 40 km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10-Gigabit Ethernet ultra-short reach optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber |
| QFX-SFP-DAC-10MA | SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 10 m |
| QFX-SFP-DAC-7MA | SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 7 m |
| QFX-SFP-DAC-5MA | SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 5 m |
| QFX-SFP-DAC-3M | SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 3 m |
| QFX-SFP-DAC-3MA | SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 3 m |
| QFX-SFP-DAC-1M | SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 1 m |
| QFX-SFP-DAC-1MA | SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 1 m |
| QFX-SFP-1GE-LX | SFP 1000BASE-LX Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000BASE-SX Gigabit Ethernet optics, 850 nm for up to 550 m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000BASE-T copper transceiver module for up to 100 m transmission on Cat5 |
| Software Feature Licenses | |
| QFX10002-60C-PFL | QFX10002-60C Premium Feature License |
| QFX10002-60C-AFL | QFX10002-60C Advanced Feature License |
| QFX10002-60C-LFIB | QFX10002-60C 1 million FIB license |
Specifications
| Specifications | QFX10002-60C |
| System throughput | Up to 12 Tbps |
| Forwarding capacity | Up to 4 Bpps |
| CPU | Intel Ivy Bridge 4C/2.3GHz processor |
| Total packet buffer | 24 GB |
| Latency | As low as 2.5 microseconds within a PFE As low as 5.5 microseconds across PFEs |
| Media access control (MAC) addresses | Up to 1 million |
| ARP entries | Up to 340,000, or 64,000 per PFE |
| Jumbo frames | 9,216 bytes maximum |
| VLANs | 4,000 |
| Forwarding information base (FIB) (IPv4/IPv6) | Up to 2 million |
| Routing Information Base (RIB) (v4) | 20 million |
| Routing Information Base (RIB) (v6) | 6 million |
| Host routes | Up to 2 million |
| ECMP | 64-way |
| IPv4 multicast routes | Up to 128,000 |
| IPv6 multicast routes | Up to 128,000 |
| Multicast groups | Up to 128,000 |
| Filters | Up to 8,000 |
| Filter terms | Up to 64,000 |
| Policers | Up to 8,000 |
| Output queues per port | 8 |
| VOQs | 192,000 per PFE |
| LAGs | 192 |
| Members per LAG | 64 |
| BGP neighbors (Premium Feature License) | 1,024 |
| Generic routing encapsulation (GRE) tunnels | 3,000 |
| MPLS L3 VPNs (Advanced Feature License) | 4,000 |
| LSPs (ingress/ egress/transit) (Advanced Feature License) | 4,000 |
| Software Features | |
| Layer 2 Features | 802.1D: Spanning Tree Protocol (STP) 802.1w: Rapid Spanning Tree Protocol (RSTP) 802.1s: Multiple Spanning Tree Protocol (MSTP) VLAN Spanning Tree Protocol (VSTP) 802.1AB Link Layer Discovery Protocol (LLDP) VLAN Registration Protocol QinQ |
| Link Aggregation | 802.3ad: Link Aggregation Control Protocol (LACP) MC-LAG |
| Layer 3 Features | Static routing RIP v1/v2 OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP) IPv6 Bidirectional Forwarding Detection (BFD) Virtual routers Unicast RPF (uRPF) Loop-free alternate (LFA) BGP IS-IS Dynamic Host Configuration Protocol (DHCP) v4/v6 relay VR-aware DHCP IPv4 / IPv6 over GRE tunnels (interface-based) |
| Multicast | Internet Group Management Protocol (IGMP) v1/v2/v3 Multicast Listener Discovery (MLD) v1/v2 IGMP Proxy, Querier IGMP snooping MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM Multicast Source Discovery Protocol (MSDP) Multicast only Fast Re-Route (MoFRR) NG-MVPN |
| Firewall Filters | Ingress and egress L2-L4 access control lists (ACLs) - Port ACLs - VLAN ACLs - Router ACLs Control plane denial-of-service (DoS) protection |
| Quality of Service (QoS) | Single rate three color policer Two rate three color policer Congestion prevention - Weighted random early detection (WRED) - Tail drop - ECN marking Priority-based scheduling - Low latency queuing with strict high priority - Weighted round-robin (WRR) queuing Data Center Bridging Quantized Congestion Notification CoS-based forwarding |
| MPLS (Advanced Feature License) | LDP RSVP LDP tunneling (LDP over RSVP) Fast reroute (FRR) IPv6 tunneling (6PE) Ingress, transit, and Egress LSPs IPv4 Layer 3 VPNs IPv6 Layer 3 VPNs (6VPE) Layer 2 circuits MPLSoUDP Segment routing |
| Overlays | Integration with Juniper Networks Contrail Integration with VMware NSX SDN controller VXLAN Open vSwitch Database (OVSDB) VXLAN L2 Gateway VXLAN L3 Gateway Ethernet VPN (EVPN)-VXLAN EVPN multihoming |
| High Availability | GRES BFD |
| Timing | Precision Timing Protocol (PTP) - Transparent Clock - Boundary Clock |
| Visibility | Switched Port Analyzer (SPAN) Remote SPAN (RSPAN) Encapsulated Remote SPAN (ERSPAN) Firewall filter-based port mirroring sFlow v5 IPFIX |
| Data Center Bridging | Priority-based flow control (PFC)IEEE 802.1Qbb Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs) |
| Management and Operations | Contrail Networking Zero-Touch Provisioning (ZTP) Streaming telemetry Junos Space Network Director Junos OS CLI via console, telnet, SSH Out-of-band management: Serial; 10/100/1000BASE-T Ethernet Role-based CLI management and access Junos XML management protocol ASCII configuration file SNMP v1/v2/v3 RADIUS TACACS+ Extensive MIB support Junos OS configuration rescue and rollback Image rollback OpenStack Neutron Plug-in Puppet Chef Python Junos OS event, commit, and OP scripts RMON (RFC 2819): Groups 1, 2, 3, 9 Network Time Protocol (NTP) SSHv2 Secure copy DNS resolver System logging Environment monitoring Temperature sensor Configuration backup via FTP/secure copy IEEE 802.3ah Link Fault Management (LFM) |
| Troubleshooting | Debugging: CLI via console, telnet, or SSH Diagnostics: Show, debug, and statistics commands Port mirroring: - Local - Remote IP tools: Extended ping and trace Juniper Networks commit and rollback |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C |
| Operating altitude | Up to 10,000 ft. (3,048 m) |
| Relative humidity operating | 5 to 90% (noncondensing) |
| Relative humidity nonoperating | 5 to 95% (noncondensing) |
| Seismic | Designed to meet GR-63, Zone 4 earthquake requirements |
| Safety | CAN/CSA-C22.2 No. 60950-1 Information Technology EquipmentSafety UL 60950-1 Information Technology EquipmentSafety EN 60950-1 Information Technology EquipmentSafety IEC 60950-1 Information Technology EquipmentSafety (All country deviations) EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification |
| Electromagnetic Compatibility | 47CFR Part 15, (FCC) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A EN 55024 CISPR 24 EN 300 386 VCCI Class A AS/NZA CISPR22 Class A KN22 Class A CNS 13438 Class A EN 61000-3-2 EN 61000-3-3 ETSI ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment |
Properties
| Properties | Juniper QFX10002-60C |
| Description | QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables and 3 fan trays |
| Product Family | QFX10002 Series |
| Product Type | Ethernet Switch |
| Port Densities | |
| Maximum 10GbE port density | 192 SFP+ |
| Maximum 40GbE port density | 60 QSFP+ |
| Maximum 100GbE port density | 60 QSFP28 |
| Management and Precision Time Protocol (PTP) interfaces | 1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port SMB In, SMB Out, 10 MHz In, 10 MHz Out One Console port USB 2.0 storage interface |
| Operating System | Junos OS |
| Power | 4x 1600 AC power supply |
| Maximum power draw | 800 W AC, 2,730 BTU/hr |
| Typical power draw | 560 W AC, 1,911 BTU/hr |
| Cooling | Front-to-back airflow 3 hot-swappable fan modules with redundant fans |
| Dimensions (HxWxD) Inches | 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm) |
| Rack units | 2 U |
| Weight | 80.5 lbs. (36.5 kgs) |
