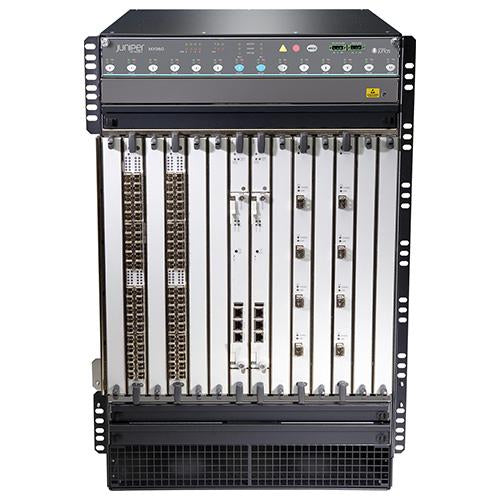

JUNIPER MX960BASE-AC ROUTER

Model: MX960BASE-AC
Detail:
  • MX960 Base Chassis with Midplane, 2 nos. SCB-E, AC Power, Discounted RE
List Price: US$83,916.00
Price:
$70,489.44
You Save: $13,426.56 (16% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The SDN-enabled MX960 Universal Routing Platform has been proven in the world's largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.

Accessories

Specifications


System capacity 12 Tbps
Slot orientation Vertical
Default memory 2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD
Number of cores 6 cores
Security Firewall filters/ACLs
DDoS—control plane
DDoS—FlowSpec
Stateless filters L2-L4
Stateful services
Inline Services GRE reassembly
1:1 NAT
Flow monitoring
Video monitoring
Lawful intercept
Mirroring
Corero SmartWall Threat Defense Director
SecIntel Threat Intelligence
Service Card Supported Services6 Deep packet inspection
CGNAT
Flow monitoring
Server traffic load balancing7
IPsec
Stateful firewall
HTTP header manipulation
Web filtering
DNS sinkhole
Intrusion detection system
Resiliency Redundant RE
Unified ISSU
Nonstop active routing (NSR)
Fast restoration
Operation, Administration, and Maintenance (OAM)
System Virtualization Enhanced SLA and queuing
Junos Fusion Edge (AD)
Logical systems
Virtual router/switch
Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit
Operating temperature 32° to 115° F (0° to 46° C) at sea level
Certifications   GR-1089-Core EMC and Electrical Safety
- Common Bonding Network (CBN)
- National Electrical Code (NEC)
- GR-63-Core


Properties

Properties MX960BASE-AC
Description  14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE
Product Family Juniper MX Routers
Product Type Router
Slots 11 MPCs
Per slot capacity 1.5 Tbps
Maximum system throughput1 12 Tbps
PDH Yes
Sonet/SDH Yes
Maximum 1GbE 440
Maximum 10GbE 528
Maximum 40GbE 132
Maximum 100GbE 120
Maximum 400GbE 24
10GbE DWDM 88
100GbE DWDM 22
Rack units 16
Systems per rack 3
Redundancy  Components Power supplies, REs, fans
Airflow Front to back
Mounting Front or center
Dimensions 17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm)
Weight fully loaded 334 lb/151.6 kg
Weight unloaded 150 lbs/68.1 kg
