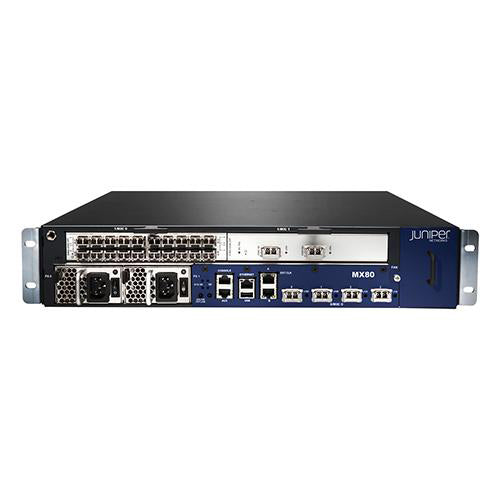

JUNIPER MX80-48T-AC ROUTER

Model: MX80-48T-AC
Detail: MX80-48T Chassis
, with 48 x RJ-45, 4 x 10GE XFP Built-in Ports, AC power supply, Fan Tray with filter
List Price: US$51,500.00
Price:
$36,050.00
You Save: $15,450.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The compact, agile, and full-featured MX80 Universal Routing Platform is ideally suited for enterprise and service provider applications in facilities with limited space and power

Accessories

MICs
MIC-3D-8OC3-2OC12-ATM ATM MIC with SFP
MIC-3D-8DS3-E3/MIC-3D-8CHDS3-E3-B DS3/E3 MIC
MIC-3D-16CHE1-T1-CE Channelized E1/T1 Circuit Emulation MIC
MIC-3D-16CHE1-T1-CE-H Channelized E1/T1 Circuit Emulation MIC (H)
MIC-3D-20GE-SFP Gigabit Ethernet MIC with SFP
MIC-3D-20GE-SFP-E Gigabit Ethernet MIC with SFP (E)
MIC-3D-20GE-SFP-EH Gigabit Ethernet MIC with SFP (EH)
MIC-MACSEC-20GE Gigabit Ethernet MIC with 256b-AES MACsec
MIC-3D-2XGE-XFP 10-Gigabit Ethernet MICs with XFP
MIC-3D-4OC3OC12-1OC48 SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8OC3OC12-4OC48 SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4CHOC3-2CHOC12 Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8CHOC3-4CHOC12 Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4COC3-1COC12-CE Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP
MIC-4COC3-1COC12-CE-H Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP (H)
MIC-3D-40GE-TX Tri-Rate MIC
MS-MIC-16G Multiservices MIC
MIC-3D-1OC192-XFP SONET/SDH OC192/STM64 MIC with XFP
JNP-MIC1 12-Port Multi-Rate MIC with QSFP+
JNP-MIC1-MACSEC 12-Port Multi-Rate MACsec MIC with QSFP+
Midrange router upgrade licenses
MX-40-80-UPG-B Software upgrade for MX40 to MX80
Junos OS
Junos-WW Worldwide
Junos OS USA
Software Licenses
S-MX80-ADV-R License to support full scale L3 route and
L3 VPN on MX80
S-MX80-Q License Svc F/ MPC F/ Mx80 Series Routers Limited to 5g
S-MX80-SA-FP Subscriber Management Feature Pack
License
S-MX80-SSM-FP Subscriber Service Management
Feature Packet License (RADIUS/SRC
Series-based service activation and
deactivation) per service accounting
features for subscribers, MX80

Specifications

Specifications MX80-48T-AC
System capacity 80 Gbps
System throughput 160 Gbps
Packet forwarding capacity 55 to 60 Mpps
Per slot capacity 20 Gbps
Slot orientation Horizontal
Built-in Routing Engine 8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM
Number of cores 1 core
Platform Features
Security Firewall filters/ACLs
DDoS—control plane
DDoS—FlowSpec
Stateless filters L2-L4
Stateful services*
Inline Services GRE reassembly
1:1 NAT*
Flow monitoring**
Video monitoring***
Lawful intercept
Mirroring
Service Card Supported Services CGNAT
J-Flow**
Ipsec****
Stateful firewall^
Resiliency Fast restoration
Operation, Administration, and Maintenance (OAM)
System
Virtualization
Logical systems
Virtual router/switch
Enhanced SLA and queuing
Junos Fusion Edge (AD)
Automation Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit
Operating temperature 32° to 104° F (0° to 40° C)
Humidity 5% to 90% noncondensing humidity
Altitude 13,000 ft (4,000 m)
Safety CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition,
Safety of Information Technology Equipment
EN 60825-1 Safety of Laser Products - Part 1: Equipment
Classification, Requirements, and User’s Guide
EN 60950 Safety of Information Technology Equipment
EMC AS/NZS 3548 Class A (Australia/New Zealand)
EN 55022 Class A Emissions (Europe)
FCC Part 15 Class A (USA)
VCCI Class A (Japan)
NEBS GR-63-Core:NEBS, Physical Protection
GR-1089-Core:EMC and Electrical Safety for Network Telecommunications Equipment
ETSI ETS-300386-2 Telecommunication Network Equipment
Electromagnetic Compatibility Requirements
Immunity EN 61000-3-2 Power Line Harmonics
EN 61000-3-3 Voltage Fluctuations and Flicker
EN 61000-4-2 ESD
EN 61000-4-3 Radiated Immunity
EN 61000-4-4 EFT
EN 61000-4-5 Surge
EN 61000-4-6 Low Frequency Common Immunity
EN 1000-4-11 Voltage Dips and Sags
Element Management Junos Space Platform and applications
J-Web Software graphical user interface
Policy Management Junos Scope
SRC Series Session and Resource Control Modules
Third-Party Management Applications HP, IBM, InfoVista, Intelliden, WANDL
SNMP SNMP v2/v3 bilingual agent support

Properties

Properties Juniper MX80-48T-AC
Description MX80-48T Chassis , with 48 x RJ-45, 4 x 10GE XFP Built-in Ports, AC power supply, Fan Tray with filter.
Product Family MX80 Series
Product Type Router
Interface Features
Maximum 1GbE 80
Maximum 10GbE 8
Maximum 40GbE NA
Maximum 100GbE NA
10GbE DWDM NA
100GbE DWDM NA
Ports 4 10GbE fixed, 48 RJ-45
Slots 3 MIC slots (The MX80 has two front MIC slots and one rear MIC slot. The rear MIC slot only supports the MS-MIC.)
PDH Yes
Sonet/SDH Yes
Physical dimensions (W x D x H)
Fixed chassis 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Modular chassis 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Air filter 0.25 in. (0.64 cm) x 18.43 in. 46.81 cm) x 3.35 in. (8.5 cm)
MIC 6.25 in. (15.9 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Dual-wide MIC 12.5 in. (31.75 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Fan tray 2.75 in. (6.96 cm) x 20.5 in. 52.07 cm) x 3.35 in. (8.5 cm)
DC power supply 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
AC power supply 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
Weights
Fixed chassis Chassis with fan tray and power supplies: 28 lb (12.7 kg)
Modular chassis Chassis with fan tray, power supplies, and MICs: 30 lb (13.6 kg)
Air filter 0.1 lb (0.05 kg)
MIC Maximum up to 1.2 lb (0.54 kg)
Dual-wide MIC 1.9 lb (0.9 kg)
Fan tray 2.3 lb (1.04 kg)
DC power supply 2.6 lb (1.18 kg)
AC power supply 2.6 lb (1.18 kg)
Weight (lb/kg) fully configured 30 lb/13.7 kg
Mounting Front or center
Rack units 2
Systems per rack 24
Redundancy Power supplies and fans
Air flow Side to side [forced air]
Power (AC) 100 to 240 V AC
Typical power draw (AC) 365 W
Maximum output power 500 W
AC input voltage Operating range: 90 to 264 VAC
AC input line frequency 50 to 60 Hz (nominal)
AC system current rating 6 A @ 110 VAC (7 A maximum per inlet at 90 VAC) or 3 A @ 220 VAC
AC system input power 610 W
