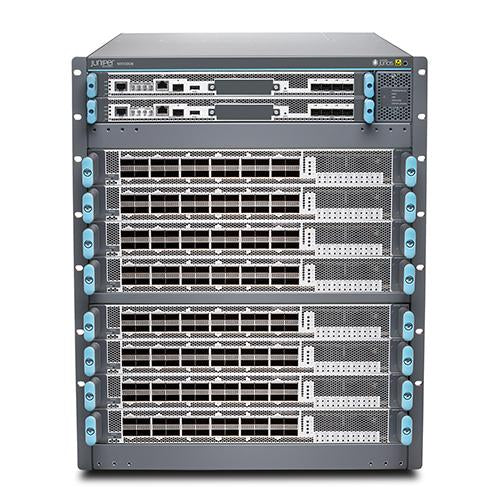

Juniper MX10008-BASE Chassis

The MX10008 Universal Routing Platform is a modular 8-slot chassis built for high-density routing in service provider and cloud environments. It supports up to 76.8 Tbps of full-duplex system capacity with 9.6 Tbps per slot in a 13U form factor.

Product Name	MX10008-BASE
Description	MX10008 8-slot chassis [JNP10008]. Includes 1 Routing Engine, 3 Power Supplies, 2 Fan trays, 2 Fan tray Controllers, and 5 Switch Fabric Cards
Brand	Juniper
Type	Chassis Bundle
Compatibility	MX10008 Universal Routing Platform
Slot Configuration	8 slots
Included Components	1 Routing Engine
Included Components	3 Power Supplies
Included Components	2 Fan trays
Included Components	2 Fan tray Controllers
Included Components	5 Switch Fabric Cards
Form Factor	13 rack units (13U)

Dimensions (W x D x H)	17.4 x 22.6 x 35 inches (44.2 x 57.4 x 88.9 cm) base AC configuration; 42.4 inches (107.7 cm) with EMI door
Weight	Approximately 294 lbs (133 kg) base AC configuration
System Capacity	Full-duplex: 76.8 Tbps; Half-duplex: 153.6 Tbps
Per Slot Capacity	9.6 Tbps
Typical Power Consumption	12 kW, fully loaded
Operating Temperature	0°C to 46°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 90%, non-condensing
Mounting	4-post rack
Installation	Modular chassis with hot-swappable field-replaceable components
Management	Monitored via Junos OS
Support	Juniper Care Services
Additional Information	The MX10008 Universal Routing Platform is a modular 8-slot chassis built for high-density routing in service provider and cloud environments. It supports up to 76.8 Tbps of full-duplex system capacity with 9.6 Tbps per slot in a 13U form factor.
