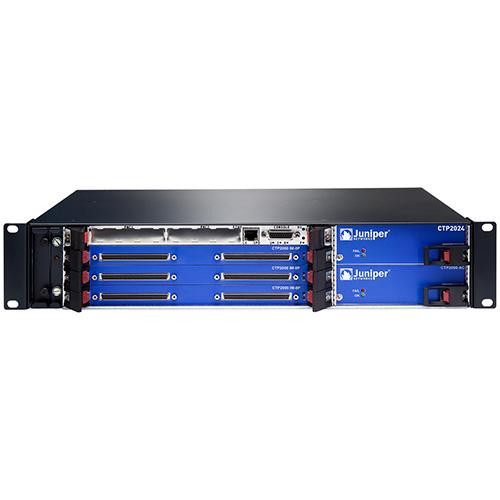

JUNIPER CTP2024-AC-03 ROUTER

Model: CTP2024-AC-03
Detail:
  • CTP2024 AC Chassis includes Processor, Power Supply, CLK Main, 1G RAM
List Price: US$22,395.00
Price:
$15,677.00
You Save: $6,718.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

CTP2024 Circuit to Packet Platform (designed for USA and Australian markets *) is a 2 U rack-mountable chassis that supports up to 24 circuit emulation interfaces. The chassis includes an option for redundant power. Interface options include T1/E1, serial, and 4WTO analog voice (2WFXS, 2WFXO, 4WE&M).

Accessories

Upgrades
CTP-Fiber-PMC Fiber PMC card for CTP2000 line to support up to 2 SFP modules
CTP-SFP-1GE-T Small form-factor pluggable 1000BASE-T Gigabit Ethernet module (uses Cat 5 cable)
CTP-SFP-1GE-SX Small form -factor pluggable 1000BASE-SX Gigabit Ethernet optic module
CTP-SFP-1GE-LX Small form-factor pluggable 1000BASE-LX Gigabit Ethernet optic module
Interface Modules
CTP2000-IM-8P-T1E1 8-port T1/E1 RJ48 interface module
CTP2000-IM-8P 8-port serial interface moduleEIA530/V.11/RS- 422/X.21, RS-232/V.24, V.35
CTP2000-IM-8P-MS 8-port serial interface moduleEIA530/V.11/RS- 422/X.21, RS-232/V.24, V.35, 4TWO, HQ Analog, IRIG
CTP2000-IM-4WEM 8-port 4WE&M analog voice module
4WEM-RTM 8-port 4WE&M 8-port rear transition module
CTP2000-IM-2WFXS 24-port 2WFXS analog voice module
2WFXS-RTM 24-port 2WFXS rear transition module
CTP2000-IM-2WFXO 12-port 2WFXO analog voice module
2WFXO-RTM 12-port 2WFXO rear transition module
Spares
CTP2000-PRC-S Processor spare
CTP2000-RTC-S Rear transition module spare
CTP2000-PWR-R CTP2024/CTP2056 redundant power supply option
CTP2024-REC-RMK CTP2024 recessed rack mount kit
CTP-CBL-4Q Cable100 pin to four (4) DB-25 DCE for CTP2000 line
CTP-CBL-4Q-DTE Cable100 pin to four (4) DB-25 DTE for CTP2000 line
CTP-CBL-4Q-Y Redundancy cable for connections between two CTP Series platforms
CTP-CLK-MAIN Clock main rear transition module for CTP2000 line
CTP-CLK-SPOKE Clock spoke rear transition module for CTP2000 line
CTP Series Software
CTP-OS-4G Current software on 4G CompactFlash card
CTP-CF-4G-S 4G CompactFlash spare, no CTPOS
CTPView Network Management System Hardware/Software
CTPVIEW-SVR-1 CTPView Network Management System server hardware
CTPVIEW-SW CTPView Network Management System software

Specifications

Specifications CPT2024-AC-03
Operating temperature 32° to 104° F (0° to 40° C)
Humidity 5%-90% RH noncondensing
Platform Features
Software circuit provisioning EIA530, RS-232, V.35, 4WTO, T1, and E1 circuit types are software configured including the line encoding, clocking, rates, and IP settings.
Scalable product family A family of four CTP Series Circuit to Packet Platforms provides different port densities. Products can address the requirements of small remote sites through large central network hubs.
CTPView Network Management System Secure, multi-user, web-based network management system provides network monitoring, circuit provisioning, IP performance reporting, database backup, and circuit troubleshooting tools.
Multiple system and circuit clocking solutions CTP Series Circuit to Packet Platforms are designed to use multiple external clocks as monitored and prioritized system references.

Circuits are configured to use the system clock, external circuit timing, or to adaptively recover clock information from the remote port when required by the application or when no reference is configured.
Auto switch The status of the CTP Series circuit ports is monitored, and the circuit is automatically switched to an alternate local or remote port when a failure is detected.
Packet protector Redundant packets are created and transmitted to the IP network and then processed by the receiving CTP Series.
Autobaud The input timing leads are monitored, and the circuit rate is automatically changed at both ends of the network if a rate change is detected.
Loops and BERTs Each CTP Series port supports interface and network loops and the ability to generate and monitor a bit error rate test with up to nine BERT patterns selectable.
Layer 2 Serial-to-Ethernet IP aggregation The CTP Series Circuit to Packet Platforms can aggregate layer 2 traffic from serial interfaces onto a Fast Ethernet or Gigabit Ethernet interface. Layer 2 protocols supported are Frame Relay, PPP and Cisco-HDLC. Each CTP Series port is connected to a different VLAN.
Port mirroring The CTP Series is able to port-mirror any transmit or any receive up to 10 local or remote destinations.
Analog voice4WE&M The CTP Series supports analog 4WE&M type I, II,and V interfaces with software selectable transmit and receive-level adjustments per interface.
Analog voice2WFXS The CTP Series supports analog 2WFXS loop start, ground start, and PLAR modes with software selectable transmit and receive-level adjustments per interface.
Analog voice2WFXO The CTP Series support analog 2WFXO loop start and ground start modes with software selectable transmit and receive-level adjustments per interface.
IRIG-B The CTP Series supports an inter-range instrumentation group time code (IRIG-B) signal to be transported through an IP network. IRIG-B encodes day of year, hour, minute, and second data on a 1-KHz carrier frequency, with an update rate of once per second.
Primary Circuit to Packet Solutions
SS7 transport over IP Provides transport of dedicated T1 or E1 SS7 links over the IP/ MPLS network.
TDM over IP solution The provisioning of point-to-point TDM trunks over the IP network does not require changes to the TDM equipment.
PBX interconnect over IP solution Provides E1 and T1 trunking for PBX interconnection over the IP network.
PBX Extension over IP with 2WFXS/2WFXO Provides two-wire analog PBX to phone extensions over IP and two-wire PBX to PBX/central office connections over IP. Private- line automatic ringdown (PLAR) is also supported.
Leased line extension over IP solution Supports standards-based encapsulation and DS0 bundling. IETF PWE3 RFCs, SAToP and CESoPSN are supported.
Radio over IP solution Allows for connectivity of analog and digital radios over IP networks.
Serial encryption over IP solution Provides transport of KG/KIV bit-synchronous cipher text across an IP network.
T1 and E1 backup over IP Point-to-point T1 or E1 circuits can be automatically backed up over the IP/MPLS network.

Properties

Properties Juniper CTP2024-AC-03
Description CTP2024 AC base chassis
Product Family CTP Series
Product Type Router
Serial Interfaces
EIA-530, RS-232/V.28, RS-422/V.11, RS-423/V.10, X.21, V.35, T1, E1 Yes
IRIG-B Yes
Encoding NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI, B8ZS, HDB3, TDM/TDC, Transparent Yes
Interface quantity 24
Rates 50 bps12.880 Mbps
Voice Interfaces
Analog voice 4-wire TO interface quantity 24
4WE&M 16
2WFXS 48
2WFXO 24
T1 and E1 24
Companding conversion Yes
IP Interfaces
10/100/1000BASE-T (RJ-45) 2
SFP 1000BASE-T 4
SFP 1000BASE-SX 4
SFP 1000BASE-LX 4
Precedent setting(DSCP), configurable TOS byte Yes
VLAN tagging Yes
Virtual IP Yes
Circuit modessymmetric, asymmetric, unidirectional, hairpin Yes
IPv4 and IPv6 Yes
IETF PWE3 RFC SAToP Yes
IETF PWE3 RFC CESoPSN Yes
Layer 2 serial aggregation Yes
Port mirroring Yes
*Software support roadmap item
Dimension (WxHxD) 17.25 x 3.5 x 11.75 in (43.8 x 8.9 x 29.8 cm)
Weight (lb) 20
Mounting Front Rack
Input voltage (AC) 100-240 VAC
Power supply 250W x 2
Input current 2 A at 110 VAC
