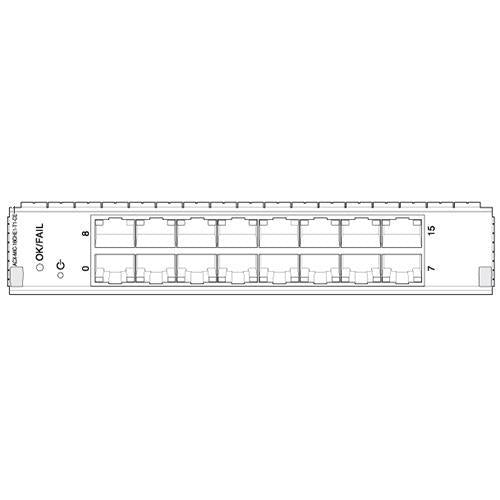

JUNIPER ACX-MIC-16CHE1-T1-CE INTERFACE CARD
| Model: | ACX-MIC-16CHE1-T1-CE |
| Detail: | Converged Access Gateway Base Unit, 16 Port Channelized T1, Channelized E1 (down to DS0) MIC, RJ48 connector, for ACX4000, Supported on Fortius-M only |
| List Price: | |
| Price: | $10,161.00 |
| You Save: | $4,354.00 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Juniper ACX4000 Universal Metro Router is a 2.5 U, actively cooled access router that is environmentally hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.
Accessories
Specifications
| Specifications | ACX-MIC-4COC3-1COC12CE |
| Software Features | Full bit error rate test (BERT) DS1 and E1 interfaces are selectable on a per-port granularity Per-port framing is not supported You can configure the following framing modes using the CLI: - T1SF, ESF, D4/superframe, ESF (extended superframe) - E1G704, G704no-crc4, unframed Local, remote, and per-port loopback diagnostics Encapsulations: - Pseudowire Emulation Edge to Edge (PWE3) Architecture (RFC 3985) - Requirements for Pseudowire Emulation Edge to Edge (PWE3) (RFC 3916) - Structure-Agnostic Time Division Multiplexing (TDM) over Packet (SAToP) (RFC 4553) - Structure-Aware Time Division Multiplexed (TDM) Circuit Emulation Service over Packet-Switched Network (CESoPSN) (RFC 5086) - Pseudowire Emulation Edge to Edge (PWE3) Control Word for Use over an MPLS PSN (RFC 4385) |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
| Humidity | 95% RH noncondensing |
| Safety Approvals | CAN/CSA-C22.2 No. 60950-1 UL 60950-1 EN 60950-1 IEC 60950-1CB Scheme EN 60825-1 |
| EMC | AS/NZS CISPR22 Class A EN55022 Class A VCCI Class A FCC Part 15 Class A IECS-003 Issue 4 BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions KN 22, Class A CISPR 32/EN55032: 2012 European Radiated Emissions Class A EN-61000-4-6 Low Frequency Common Immunity EN-61000-4-11 Voltage Dips and Sags CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics |
| ETSI (European Telecommunications Standardization Institute) | EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements ETSI EN 300 019-2-1 (2000) Storage, Class T1.2 ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3 ETSI EN 300 019-2-4 (2003) Stationary Use at Non-Weather Protected Locations, Class 4.1 ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment |
| NEBS | SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant) GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP) |
| Telecomm Compliance | T1 and XDSL Interfaces FCC Part 68 (T1 Only) Industry Canada CS-03 JATE Green Book E1 Interface TBR 12/13 ACA TS016 G.703 RTTE Directive 1995/5/EC Device management: NETCONF, CLI, SNMP v1/v2/v3 End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Device and service-level fault management Device and service-level performance management |
| Metro Ethernet Forum (MEF) | MEF CE2.0 compliant |
Properties
| Properties | Juniper ACX-MIC-16CHE1-T1-CE |
| Description | 16 Port Channelized T1, Channelized E1 (down to DS0) MIC, RJ48 connector, for ACX4000, Supported on Fortius-M only, |
| Product Family | ACX4000 Series |
| Product Type | Modular Interface Card |
| Ports | 16 E1 or T1 ports Per-MIC E1/T1 framing DS1 channelization per MIC: - 1 DS1 channel - 24 DS0 channels E1 channelization per PIC: - 1 E1 channel - 32 DS0 channels |
| Weight (lb/kg) | 1.57 lb (0.71 kg) |
| Power requirement | 2.21 A @ 12 V (26.55 W) |
