Model: | JL681A |
Detail: |
|
List Price: | |
Price: | $235.00 |
You Save: | $21.00 (8% OFF) |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

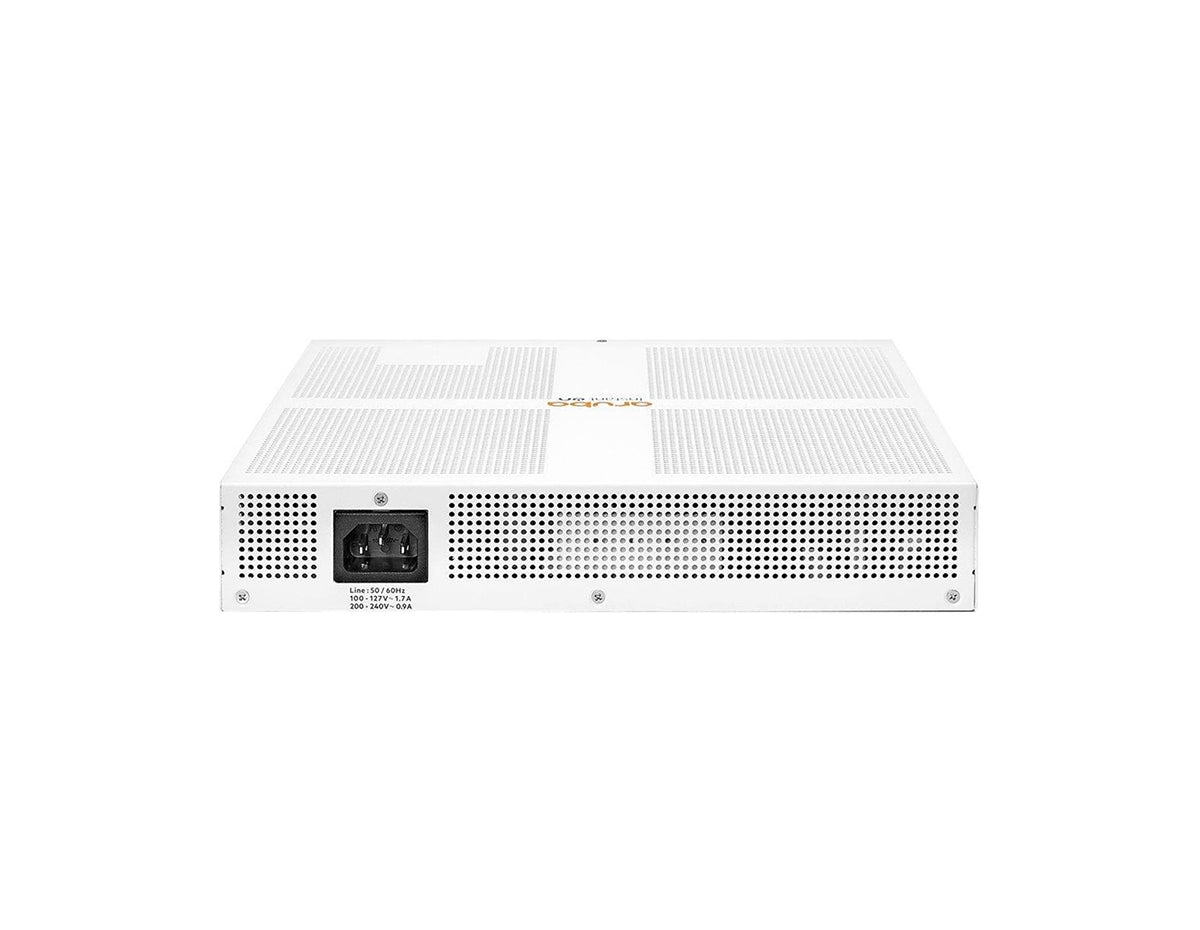

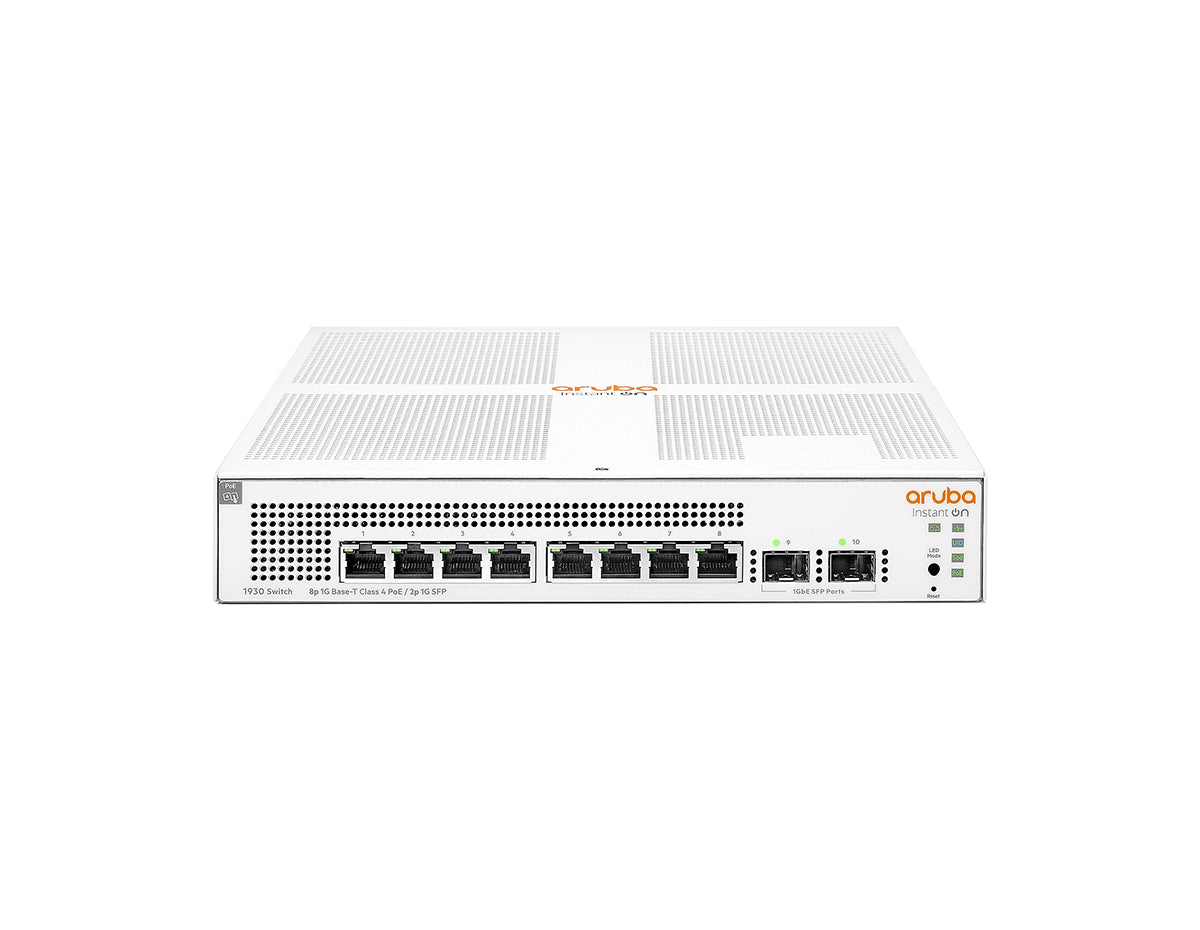

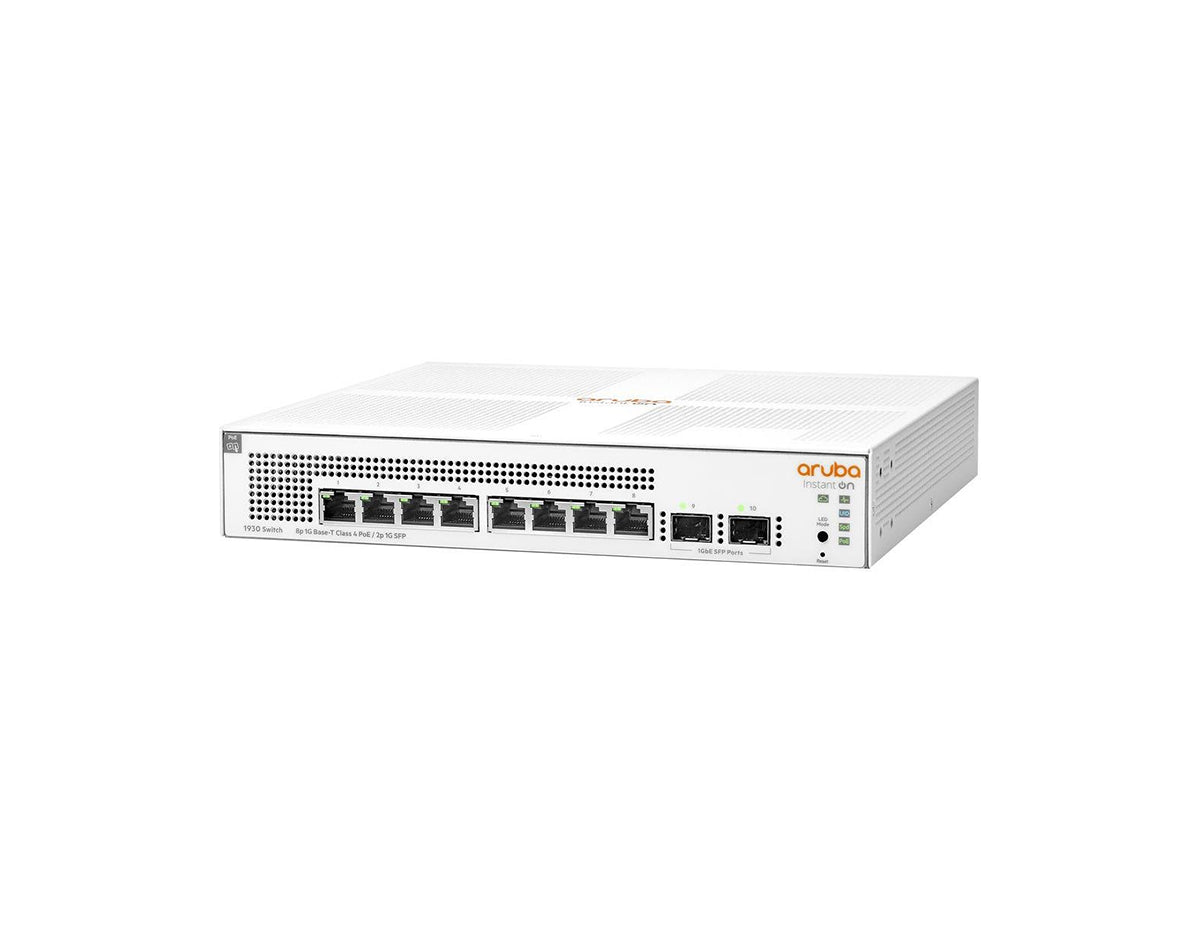

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A)
The HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A) is a compact, high-performance smart-managed switch designed for small businesses and branch offices. With 8 Gigabit Ethernet PoE-enabled ports, this switch can deliver up to 30W per port, making it perfect for powering devices like wireless access points, IP phones, and security cameras. It also includes 2 SFP ports for fiber uplink, ensuring flexible connectivity options for expanding networks.
Key Features:
Technical Overview:
You can check the related tab for the JL681A datasheet.
Specifications | HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A) |
I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
Dimensions | 10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39 cm) (1U height) |
Weight | 4.66 lb (2.11 kg) |
Processor and Memory |
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
100 Mb Latency | < 5.2 uSec |
1000 Mb Latency | <3.0 uSec |
10000 Mb Latency | n/a |
Throughput (Mpps) | 14.88 Mpps |
Capacity | 20 Gbps |
Routing Table size (# of static entries) | 32 static entries |
MAC Address table size (# of entries) | 8,000 entries |
Reliability MTBF (years) | 95 |
Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% @ 104°F (40°C) |
Nonoperating/Storage temperature | (-40°F to 158°F) (-40°C to 70°C) |
Nonoperating/Storage relative humidity | 15% to 95% @ 140°F (60°C) |
Altitude | up to 10,000 ft (3 km) |
Acoustics | Fanless (Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)) |
Electrical Characteristics | |
Frequency | 50/60 Hz |
AC voltage | 100 - 127 / 200 - 240 VAC |
Current | 0.8 A/1.6 A |
Maximum power rating | 150.2 W |
Idle power | 11.7 W |
PoEpower | 124 W Class 4 PoE |
Power Supply | Internal power supply |
Safety | UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014 |
Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
Generic | CISPR 24 / CISPR 35 |
EN | EN 55024:2010 / EN 55035:2017 |
ESD | IEC 61000-4-2 |
Radiated | IEC 61000-4-3 |
EFT/Burst | IEC 61000-4-4 |
Surge | IEC 61000-4-5 |
Conducted | IEC 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | IEC 61000-4-11 |
Harmonics | EN 61000-3-2, IEC 61000- 3-2 |
Flicker | EN 61000-3-3, IEC 61000- 3-3 |
Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
Mounting | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rackmounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Supports under-table mounting using base surface mounting holes |
Transceivers | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) |
Standards and Protocols (applies to all products in series) | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.2af PoE (PoE models only) • IEEE 802.3at PoE (PoE models only) • IEEE 802.3x Flow control • IEEE 802.1Q VLANS • IEEE 802.1p Priority • RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 894, RFC 896, RFC 919, RFC 920, RFC 922, RFC 950, RFC 1027, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1541, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2233, RFC 2236, RFC 2462, RFC 2463, RFC 2464, RFC 2576, RFC 2579, RFC 2580, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2710, RFC 2737, RFC 2819, RFC 2863, RFC 3019, RFC 3164, RFC 3176, RFC 3376, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330, RFC 4443, RFC 4862, RFC 5424, RFC 5519, RFC 5722 • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.1X Port Access Authentication • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.1D Spanning Tree Protocol •IEEE 802.1W Rapid Spanning Tree Protocol • IEEE 802.1S Multiple Spanning Tree Protocol • IEEE 802.1AB Link Layer Discovery Protocol |
Properties | HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A) |
Description | JL681A is an Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. |
Product Family | Aruba Instant On 1930 Switch Series |
Product Type | Switch |
Key Features | • Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE models • PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks • Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network • Security controls let you define access in each area of your network, keeping your business data safe • Convenient mobile app and web- based GUI for set up, management and troubleshooting |
