FORTINET FG-7060E-8-BDL-950-12 FIREWALL

Specifications

Firewall Throughput (1518 / 512 / 64 byte, UDP)	630 / 630 / 340 Gbps
Firewall Latency (64 byte UDP packets)	7.00 μs
Firewall Throughput (Packets Per Second)	510 Mpps
Concurrent Sessions (TCP)	320 Million
New Sessions/Second (TCP)	1.8 Million
Firewall Policies	200.000
IPsec VPN Throughput (512 byte packets)	100Gbps
Gateway-to-Gateway IPsec VPN Tunnels	16000
Client-to-Gateway IPsec VPN Tunnels	64000
SSL-VPN Throughput	15 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	48000
SSL Inspection Throughput	79.9 / 120 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	47000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	24 Million
Application Control Throughput	160 Gbps
IPS Throughput	120 / 200 Gbps
NGFW Throughput	100 / 120 Gbps
Threat Protection Throughput	80 / 96 Gbps
CAPWAP Throughput	N/A
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	N/A
High Availability Configurations	Active/Active (FGSP), Active/Passive, Clustering
Dimensions in.	14.0 x 17.3 x 25.6
Form Factor	8 RU
Power Required	100240V AC, 5060 Hz
Maximum Current	AC:12A@100V, 10A@240V DC:30A per feed (3+3)
Power Consumption (Average / Maximum)	3277 / 2330 W
Operating Temperature	32104°F (040°C)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Properties

Properties	FG-7060E-8-BDL-950-12

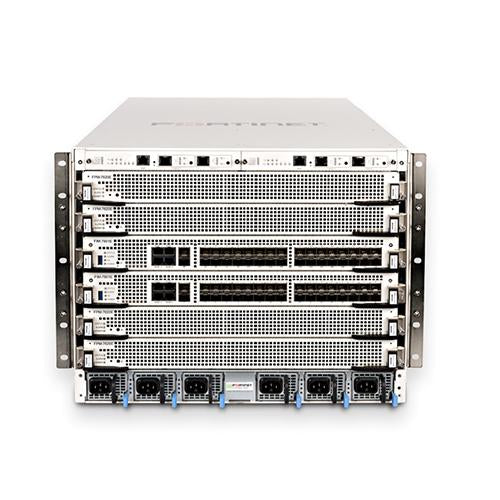

Description	8U 6-slot chassis with 2x FPM-7620E processor modules, 2x FIM-79xxE-C specified at purchase, 2x manager module and 4x hot swappable redundant PSU.
Product Family	Chasis Based Firewalls
Product Type	Firewall
Fortinet Processor Module (FPM) Slots	4
Fortinet Interface Module (FIM) Slots	2
Shelf Manager	2
Bundle	24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration	1 Years
