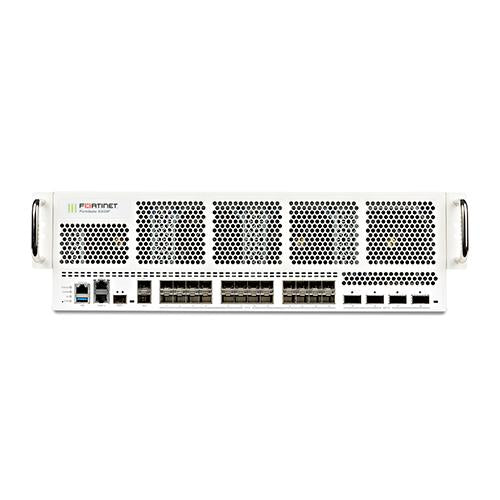

FORTINET FG-6300F-BDL-950-36 FIREWALL

Accessories

SP-FG4000F-PS	2000W AC power supply for 4000F and 6000F series, does not include SP-FGPCORC15-XX power cord.
SP-FGPCORC15-XX	6 ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F and 7000E/F Series
SP-FG4000F-DC-PS	DC power supply for FG-4200F-DC/4201F-DC, FG-4400F-DC/4401F-DC and FG-6000F-DC.
SP-FG4K6K-FAN	Spare Hotswappable Fan Module for FG-420xF/440xF/6000F.
FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SFP+BD27	10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33	10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
FN-TRAN-SFP+BD27	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
FN-TRAN-SFP28-SR	25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
FG-TRAN-SFP28-LR	25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
FN-TRAN-QSFP+SR	40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
FN-TRAN-QSFP+LR	40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
FN-TRAN-QSFP28-SR	100GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 Slots
FN-TRAN-QSFP28-LR	100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 Slots.
FN-TRAN-QSFP28-CWDM4	100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
FN-TRAN-QSFP28-BIDI	100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots.
FN-CABLE-SFP28-1	25 GE SFP28 passive direct attach cable 1m for systems with SFP28 slots.
FN-CABLE-SFP28-3	25 GE SFP28 passive direct attach cable 3m for systems with SFP28 slots.
FN-CABLE-SFP28-5	25 GE SFP28 passive direct attach cable 5m for systems with SFP28 slots.
FN-CABLE-QSFP28-4SFP28-1	100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 1m
FN-CABLE-QSFP28-4SFP28-3	100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 3m
FN-CABLE-QSFP28-4SFP28-5	100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 5m

Specifications

Firewall Throughput (1518 / 512 / 64 byte, UDP)	239 / 238 / 135 Gbps
Firewall Latency (64 byte UDP packets)	4.80 μs
Firewall Throughput (Packets Per Second)	202.5 Mpps
Concurrent Sessions (TCP)	120 Million
New Sessions/Second (TCP)	2 Million
Firewall Policies	200.000
IPsec VPN Throughput (512 byte packets)	96Gbps
Gateway-to-Gateway IPsec VPN Tunnels	16000
Client-to-Gateway IPsec VPN Tunnels	90000
SSL-VPN Throughput	9 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	30000
SSL Inspection Throughput	66 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	30000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	10 Million
Application Control Throughput	150 Gbps
IPS Throughput	110 Gbps
NGFW Throughput	90 Gbps
Threat Protection Throughput	60 Gbps
CAPWAP Throughput	N/A
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	N/A
Maximum Number of FortiTokens	20000
Maximum Number of Registered FortiClients	-
High Availability Configurations	Active/Active (FGSP), Active/Passive, Clustering
Dimensions in.	5.20 x 17.20 x 26.18
Form Factor	Rack Mount, 3RU
Power Required	100240V AC, 5060 Hz
Maximum Current	AC:30A@100VAC, 20A@240VAC DC:25-32A (x2)
Power Consumption (Average / Maximum)	977 W / 1,217 W 977 W / 1,237 W
Operating Temperature	32104°F (040°C)
Regulatory Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
Certifications	USGv6/IPv6

Properties

Properties	FG-6300F-BDL-950-36
Description	4x 40/100 GE QSFP28 slots, 24x 1/10/25 GE SFP28 slots, 2x 1 GE RJ45 management ports, 2x 10 GE SFP+ HA ports, 1x 1/10 GE SFP+ management port, and 3x AC power supplies.
Product Family	Ultra High-End Firewalls
Product Type	Firewall
GE RJ45 Ports	-
GE RJ45 Management/DMZ/HA Ports	2
40/100 GE QSFP28 Slots	4
1/10/25 GE SFP28 Slots	24
10 GE SFP Slots	3
USB Port	1
Console (RJ45)	1
Internal Storage	-
Included Transceivers	2x SFP+ (SR 10GE)
Bundle	24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration	3 Years
