| Specifications |

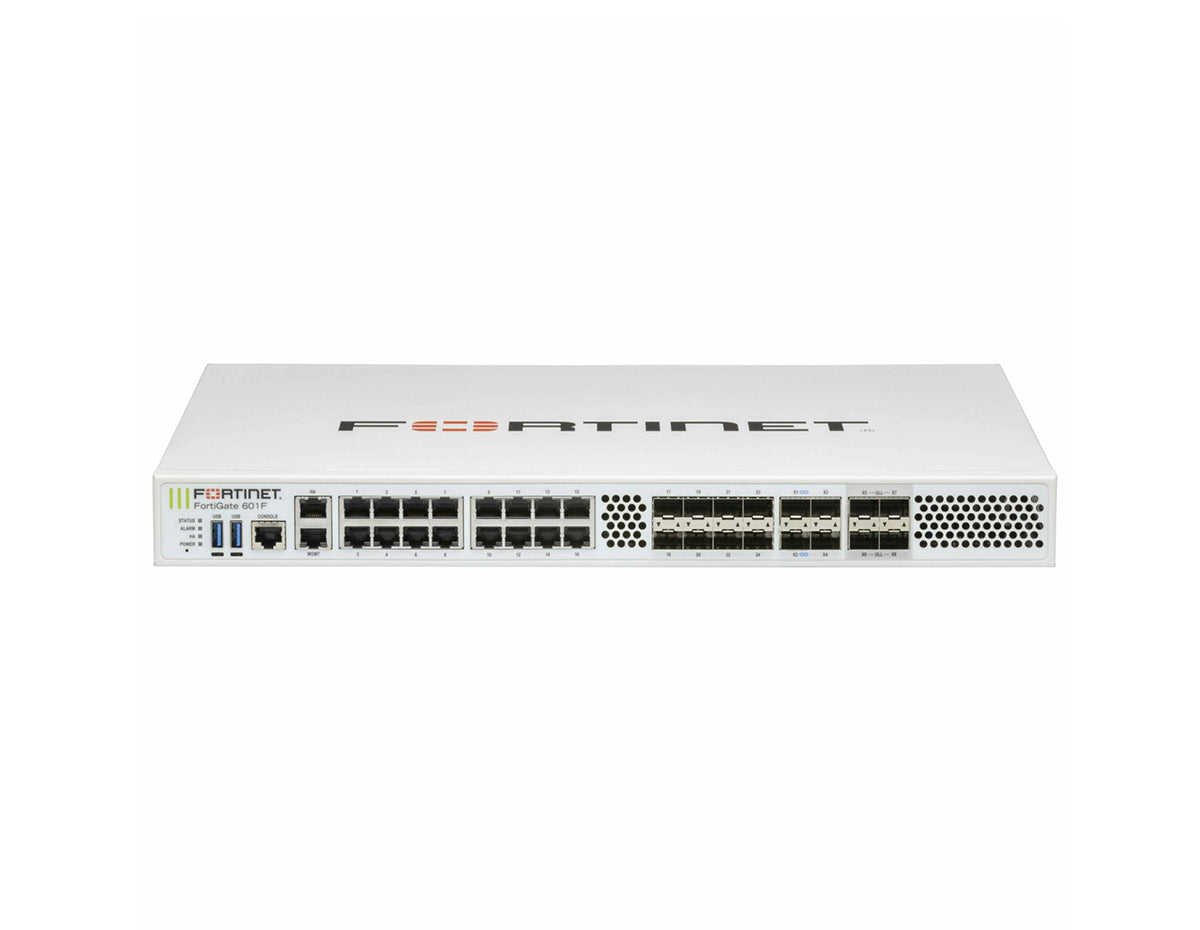

Fortinet FG-600F Firewall |
| Interfaces and Modules |
| Hardware Accelerated GE RJ45 Interfaces |
16 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated 10GE SFP+ / GE SFP Slots |
4 |
| Hardware Accelerated 25GE SFP28/ 10GE SFP+ Ultra Low Latency Slots |
4 |
| GE RJ45 MGMT/HA Ports |
2 |
| USB Ports |
2 |
| RJ45 Console Port |
1 |
| Onboard Storage |
0 |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
14 Gbps
(IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled.) |
| NGFW Throughput |
11.5 Gbps
IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled.
NGFW performance is measured with Firewall, IPS and Application Control enabled. |
| Threat Protection Throughput |
10.5 Gbps
IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled.
Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. |
| System Performance and Capacity |
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP) |
139 / 137.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) |
4.12 μs / 2.5 μs ( Latency based on Ultra Low Latency (ULL ports)) |
| Firewall Throughput (Packet per Second) |
105 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Second (TCP) |
550 000 |
| Firewall Policies |
10 000 |
IPsec VPN Throughput (512 byte)
(IPsec VPN performance test uses AES256-SHA256) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50 000 |
SSL-VPN Throughput
(Uses RSA-2048 certificate) |
4.3 Gbps |
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode) |
10 000 |
SSL Inspection Throughput
(IPS, avg. HTTPS)
(SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
9 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS)
(SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
7500 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS)
(SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
840 000 |
Application Control Throughput (HTTP 64K)*
*IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. |
32 Gbps |
| CAPWAP Throughput (HTTP 64K) |
64.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
96 |
Maximum Number of FortiAPs
(Total / Tunnel) |
1024 / 512 |
| Maximum Number of FortiTokens |
5000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
15.6 lbs (7.1 kg) |
Form Factor
(supports EIA/non-EIA standards) |
Rack Mount, 1 RU |
AC Power Consumption
(Average / Maximum) |
169 W / 255 W |
| AC Power Input |
100–240V AC, 50/60Hz |
| AC Current (Maximum) |
6A@100V |
| Heat Dissipation |
871 BTU/h |
| Redundant Power Supplies (Hot Swappable) |
Yes (comes with 2PSU default) |
| Power Supply Efficiency Rating |
80Plus Compliant |
| Operating Environment and Certifications |
| Operating Temperature |
32°–104°F (0°–40°C) |
| Storage Temperature |
-31°–158°F (-35°–70°C) |
| Humidity |
5%–90% non-condensing |
| Noise Level |
55 dBA |
| Airflow |
Side and Front to Back |
| Operating Altitude |
Up to 10,000 ft (3048 m) |
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB |
| Certifications |
USGv6/IPv6 |
