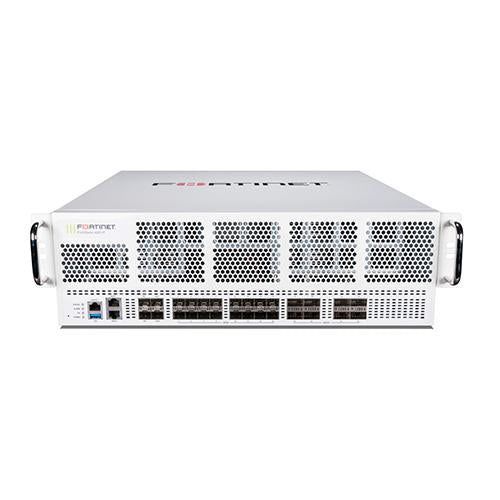

FORTINET FG-4200F FIREWALL
| Model: | FG-4200F |
| Detail: |
|
| List Price: | |
| Price: | $167,482.70 |
| You Save: | $50,027.30 (23% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, and 2 AC power supplies
Accessories
| SP-FG4000F-PS |
2000W AC power supply for 4000F and 6000F series, does not include SP-FGPCORC15-XX power cord.
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D/DC, FG-3040B/-DC, FG- 3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600E-DC/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC, FG-3950B/-DC, and FG4200F/4201F.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-FGPCORC15-XX |
6 ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F and 7000E/F Series
|
| SP-FG4000F-DC-PS |
DC power supply for FG-4200F-DC/4201F-DC, FG-4400F-DC/4401F-DC and FG-6000F-DC.
|
| SP-FG4K6K-FAN |
Spare Hotswappable Fan Module for FG-420xF/440xF/6000F.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-BIDI |
100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots.
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 800 / 788 / 400 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.02 μs |
| Firewall Throughput (Packets Per Second) | 600 Mpps |
| Concurrent Sessions (TCP) | 210 Million / 450 Million |
| New Sessions/Second (TCP) | 1 Million / 7 Million |
| Firewall Policies | 400.000 |
| IPsec VPN Throughput (512 byte packets) | 210Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 200000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
| SSL Inspection Throughput | 50 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 34000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 9 Million |
| Application Control Throughput | 135 Gbps |
| IPS Throughput | 52 Gbps |
| NGFW Throughput | 47 Gbps |
| Threat Protection Throughput | 45 Gbps |
| CAPWAP Throughput | 47 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 8192 / 4096 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 5.22 x 17.20 x 26.17 |
| Form Factor | Rack Mount, 3 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current |
AC:13.5A@120V, 5.5A@240V
DC: 20A / 100Apk |
| Power Consumption (Average / Maximum) | 931 W / 1291 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-4200F |
| Description |
8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, 2 AC power supplies.
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | - |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 8 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots |
2 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
16 |
| GE SFP Slots | - |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
