Fortinet FG-100F-BDL-950-36 Firewall

Name: Fortinet FG-100F-BDL-950-36 Firewall
Brand: Fortinet
SKU: FG-100F-BDL-950-36-NEW
Price: 5306.0 USD
Availability: InStock

Part Number: FG-100F-BDL-950-36

Technical Details

Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle

$7,803.00

$5,306.00

32% OFF

You Save: $2,497.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

License: Included

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

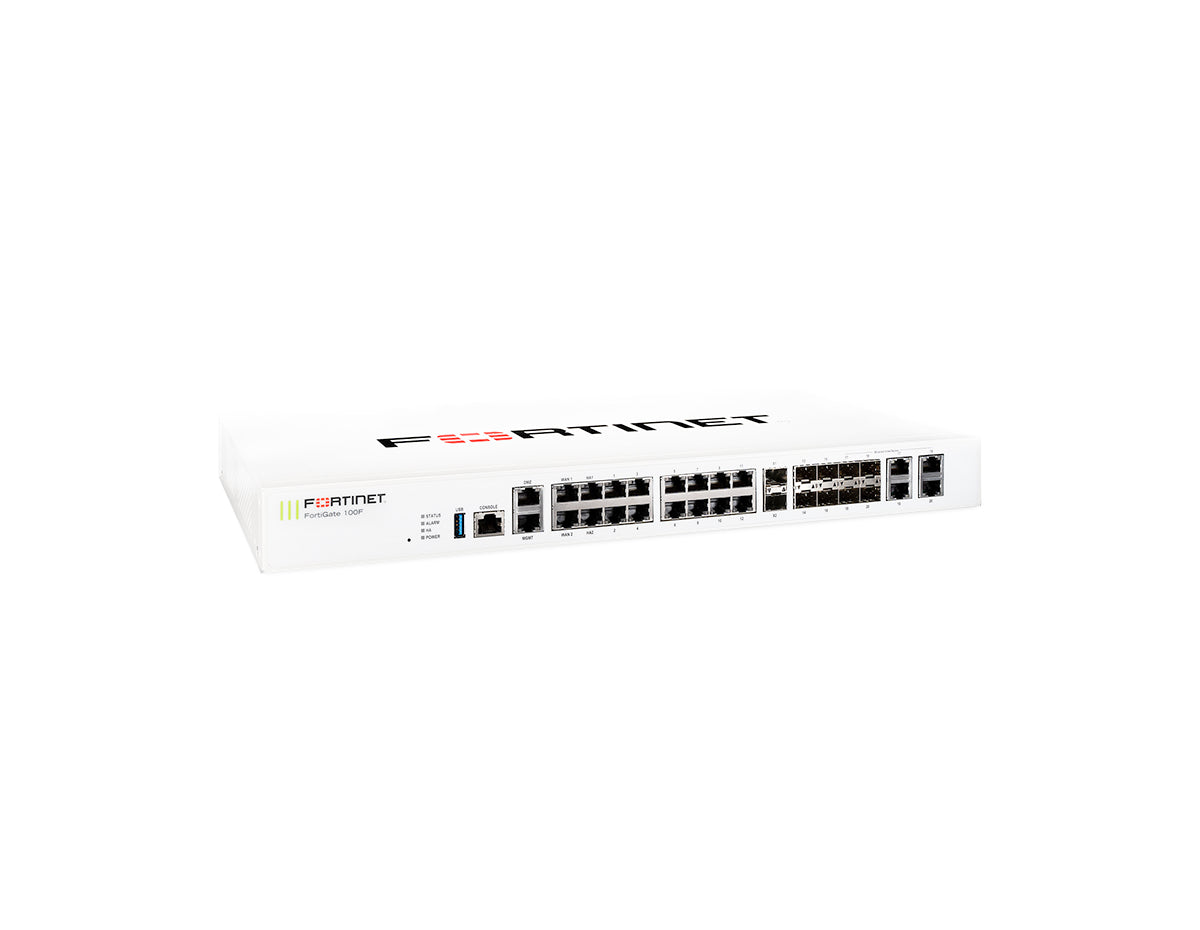

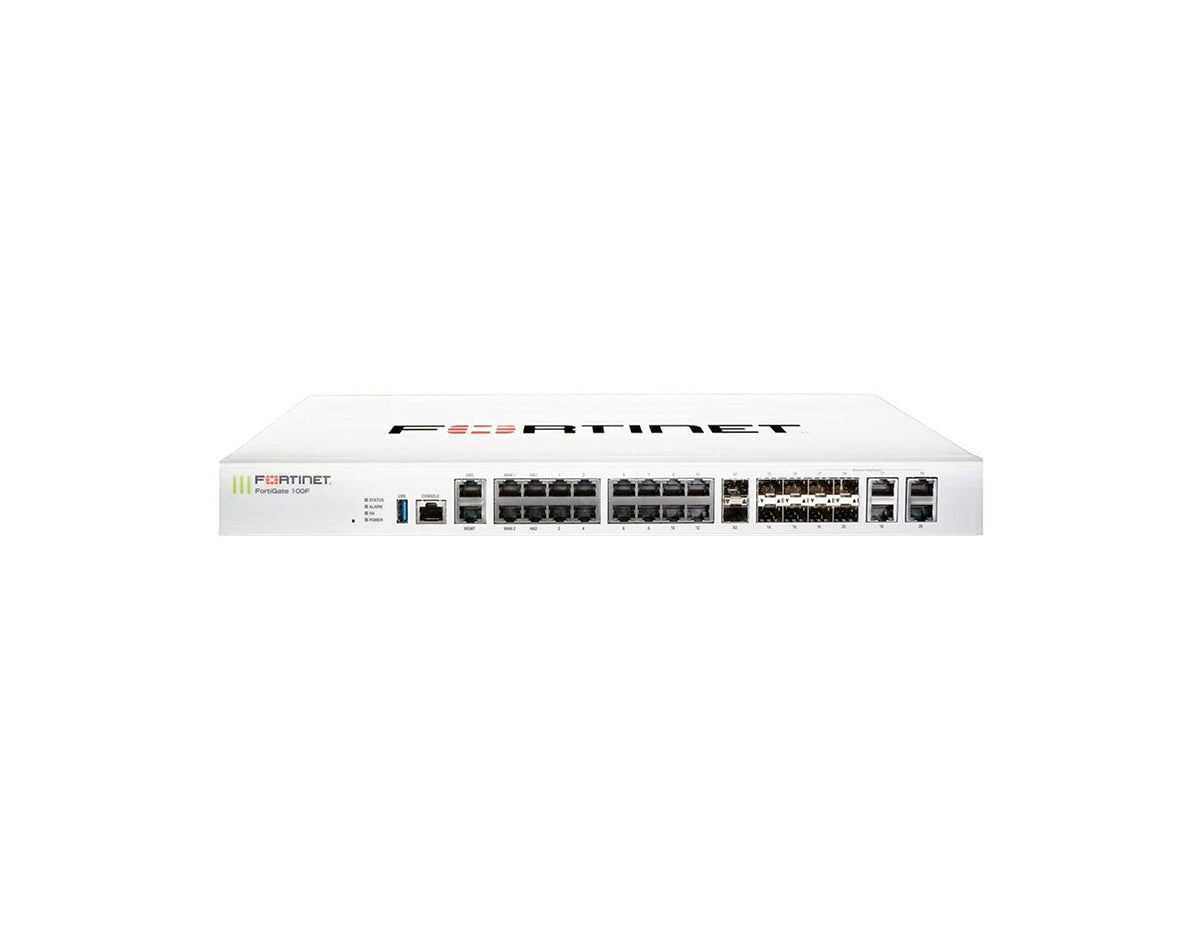

Fortinet FG-100F-BDL-950-36 Firewall

The FortiGate FG-100F is a NGFW that is suitable for mid-sized to large enterprises at the branch or campus level. It is equipped with Fortinets industry-leading SPU processor which offers comprehensive security that traditional firewalls cannot provide. The FG-100F provides network segmentation and SD-WAN security technologies makes it optimal for hybrid networks. It delivers fast, real-time traffic inspection and high-quality user experience.

The appliance comes with a 3-year subscription of 24x7 FortiCare support and FortiGuard UTM (Unified Threat Protection).

Key Features

Firewall throughput: 15 Mpps
Stackable
Redundant power supplies
Reduced power consumption

Please see the above tabs for the specification and compatible accessories.

Properties

Properties	FG-100F-BDL-950-36
Description	22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy
Product Family	Mid Range Firewalls
Product Type	Firewall
GE RJ45 Ports	12
GE RJ45 Management/DMZ/HA Ports	1/2/1
GE RJ45/SFP Shared Media Pairs	4
GE RJ45 WAN Port	2
USB Port	1
Console (RJ45)	1
Wireless Interface	0
Bundle	24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration	3 Years

Specifications

Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)	4.97 Î¼s
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56.000
Firewall Policies	10.000
IPsec VPN Throughput (512 byte packets)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	500
SSL Inspection Throughput	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	135000
Application Control Throughput	2.2 Gbps
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
CAPWAP Throughput	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5000
Maximum Number of Registered FortiClients	-
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions in.	1.73 x 17 x 10
Form Factor	Rack Mount, 1 RU
Power Required	100240V AC, 5060 Hz
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.1 W / 38.7 W
Operating Temperature	32104°F (040°C)
Regulatory Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6

Accessories

FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+BD27	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
