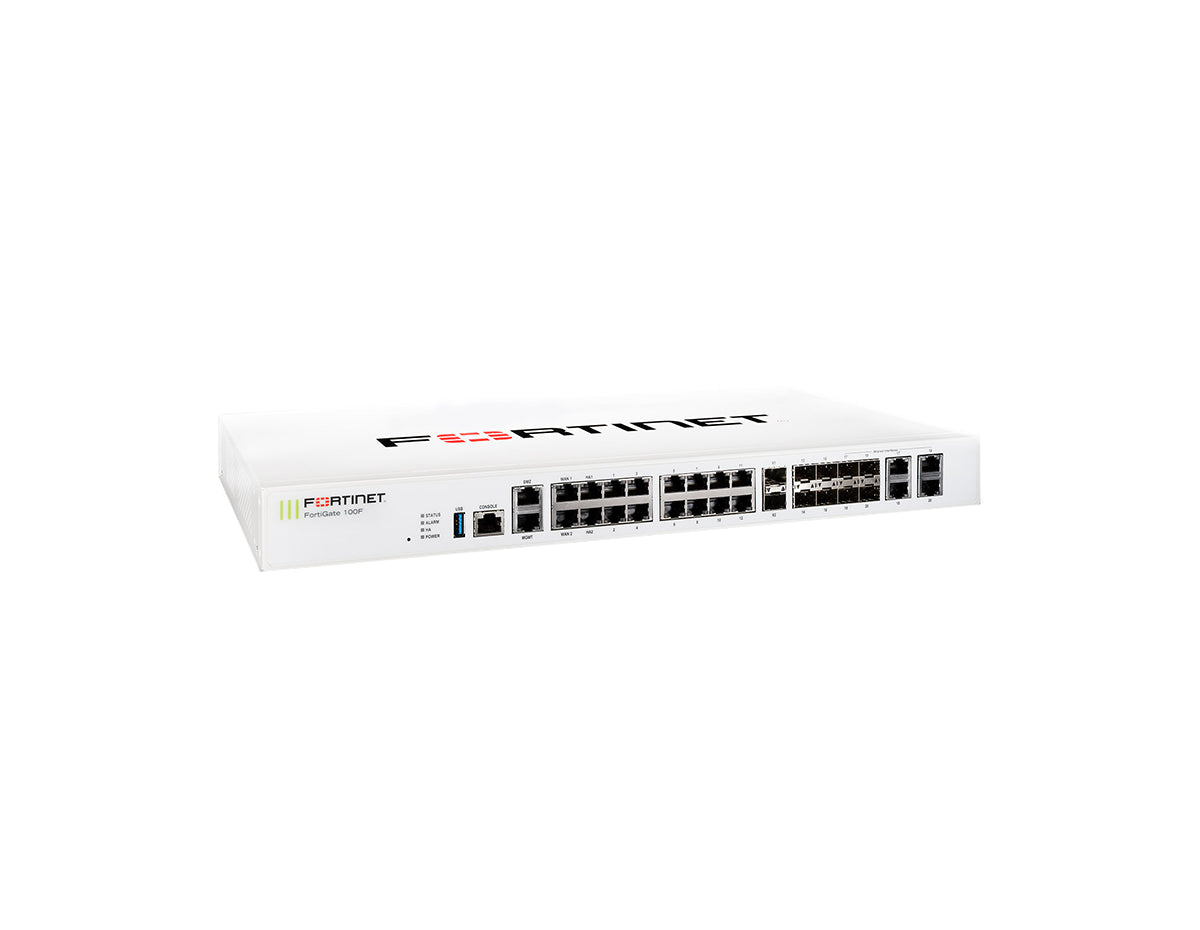

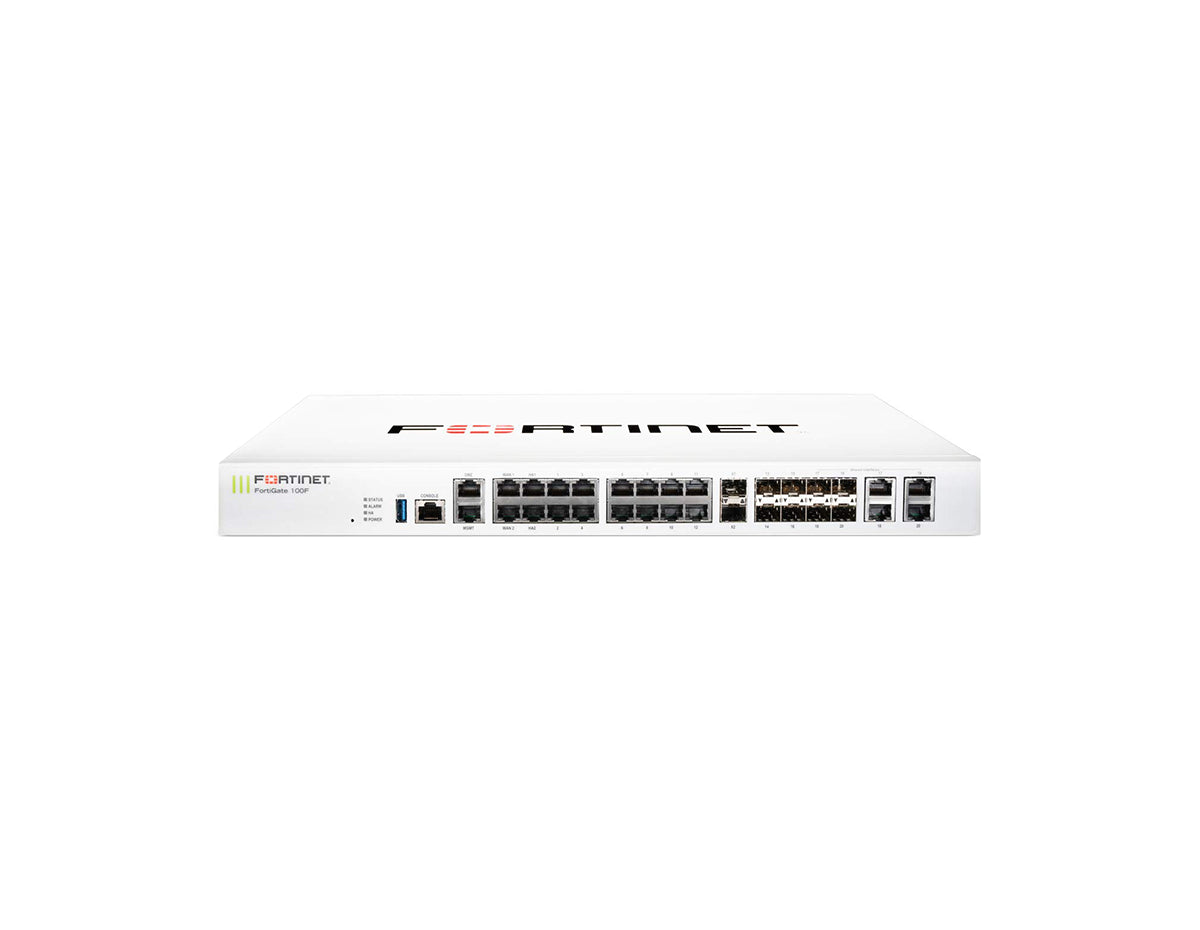

Fortinet FG-100F-BDL-950-12 Firewall

The FortiGate FG-100F-BDL-950-12 is engineered to deliver high-performance security and seamless SD-WAN integration, tailored for mid-sized to large enterprise environments. Built with Fortinet’s Secure SD-WAN ASIC, this device optimizes both security and application performance without compromising network speed. Supporting 4x SFP slots and 2x 10GE SFP+ FortiLink slots, the FG-100F offers extensive connectivity for diverse network setups. Included with this model is a 1-year subscription to 24x7 FortiCare support and FortiGuard UTM services, ensuring uninterrupted security and expert support when you need it.

Quick Specs:

15 Mpps firewall throughput for uncompromised security performance
4x SFP slots and 2x 10GE SFP+ FortiLink slots for versatile connectivity options
Secure SD-WAN powered by ASIC SOC4 to enhance performance and reliability
1-year subscription to 24x7 FortiCare and FortiGuard UTM for comprehensive protection

Please see the related tabs for the FG-100F-BDL-950-12 datasheet and compatible accessories.

Properties

Properties	FG-100F-BDL-950-12
Description	22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy
Product Family	Mid Range Firewalls
Product Type	Firewall
GE RJ45 Ports	12
GE RJ45 Management/DMZ/HA Ports	1/2/1
GE RJ45/SFP Shared Media Pairs	4
GE RJ45 WAN Port	2
USB Port	1
Console (RJ45)	1
Wireless Interface	0
Bundle	24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration	1 Years

Specifications

Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)	4.97 Î¼s
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56.000
Firewall Policies	10.000
IPsec VPN Throughput (512 byte packets)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	500
SSL Inspection Throughput	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	135000
Application Control Throughput	2.2 Gbps
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
CAPWAP Throughput	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5000
Maximum Number of Registered FortiClients	-
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions in.	1.73 x 17 x 10
Form Factor	Rack Mount, 1 RU
Power Required	100240V AC, 5060 Hz
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.1 W / 38.7 W
Operating Temperature	32104°F (040°C)
Regulatory Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6

Accessories

FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+BD27	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33	10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
