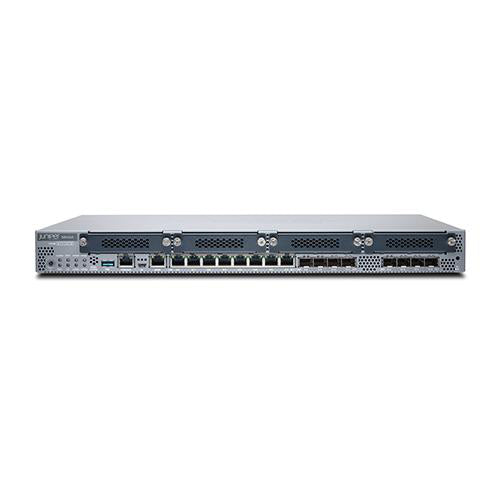

Juniper SRX345-SYS-JB-DC Firewall

Juniper SRX345-SYS-JB-DC Firewall

Juniper SRX345-SYS-JB-DC is a 1U branch firewall and services gateway built for midsize to large distributed enterprise deployments. This bundle includes SRX345 hardware with 16x 1GbE interfaces, including 8x RJ-45 and 8x SFP ports, along with 4x MPIM slots for WAN expansion, 4 GB RAM, 8 GB flash, internal DC power supply, cable, and rack-mount kit. It ships with Junos Software Base, providing firewall, NAT, IPsec, routing, MPLS, and switching in a single consolidated platform.

• Performance: delivers up to 5 Gbps firewall throughput, 500 Mbps IPS performance, and up to 800 Mbps VPN throughput
• Flexible connectivity: combines copper and SFP Gigabit interfaces with 4 MPIM slots for additional WAN options
• Branch-ready design: supports 375,000 concurrent sessions, 20,000 new sessions per second, internal DC power, and front-to-back airflow

Properties	Juniper SRX345-SYS-JB-DC Firewall
Description	SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, internal DC power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching)
Product Family	SRX300 LINE OF FIREWALLS
Product Type	Firewall
SRX300 Highlights	The SRX300 line of services gateways delivers secure branch connectivity by combining firewall, routing, switching, and WAN expansion in a compact platform. It helps simplify network complexity, improve operational efficiency, and protect distributed enterprise environments with scalable branch security.
SRX345	Best suited for midsize to large distributed enterprise branch offices, the SRX345 consolidates security, routing, switching, and WAN connectivity in a 1U form factor. The platform supports up to 5 Gbps firewall throughput and up to 800 Mbps IPsec VPN throughput in a consolidated branch firewall and networking solution.
Performance	• Up to 5 Gbps firewall throughput • Up to 500 Mbps IPS throughput • Up to 800 Mbps IPsec VPN throughput
Branch deployment	• Designed for midsize to large branch offices • 1U rack-mountable form factor • Rack mount kit included
Connectivity	• 16 x 1GbE onboard ports • 8 x 1000Base-T RJ-45 ports • 8 x 1000Base-X SFP ports • 4 x MPIM slots for WAN expansion
Management and access	• 1 x out-of-band 1GbE management port • Console access via RJ-45 and miniUSB • 1 x USB 3.0 port
Capacity and scale	• Maximum concurrent sessions: 375,000 • New sessions per second: 20,000 • Maximum security policies: 4,000
Power and cooling	• Internal DC power supply • Redundant PSU capable platform • Maximum current consumption: 6A @ -48 VDC • Front-to-back airflow
Junos Software Base	• Includes Firewall, NAT, IPSec, Routing, MPLS, and Switching • Runs on Junos OS • Built for secure and reliable branch connectivity

Specifications	Juniper SRX345-SYS-JB-DC Firewall
Software and Performance
Junos OS software version tested	Junos OS 15.1X49
Firewall performance (max)	5 Gbps
IPS performance	500 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance	800 Mbps
Maximum concurrent sessions	375,000
New sessions/second (sustained, TCP, 3-way)	20,000
Maximum security policies	4000
Maximum security intelligence data feed entries in firewall rules database	N/A
Hardware Specifications
Total onboard ports	16x1GbE
Onboard RJ-45 ports	8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	8x1GbE
MACsec-capable ports	16x1GbE
Out-of-band (OOB) management ports	1x1GbE
Mini PIM (WAN) slots	4
Console (RJ-45 + miniUSB)	1
USB 3.0 ports (type A)	1
Optional PoE+ ports	0
Memory and Storage
System memory (RAM)	4 GB
Storage (flash)	8 GB
SSD slots	1
Dimensions and Power
Form factor	1U
Size (WxHxD)	17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm)
Redundant PSU	Yes
Power supply	DC (internal)
Maximum PoE power	N/A
Average power consumption	122 W
Average heat dissipation	420 BTU/h
Maximum current consumption	6A @ -48 VDC
Acoustic noise level	45.5 dBA
Airflow/cooling	Front to back
Environmental
Operational temperature	-22° to 131° F (-30° to 55° C)
Nonoperational temperature	4° to 158° F (-20° to 70° C)
Operating humidity	10% to 90% noncondensing
Nonoperating humidity	5% to 95% noncondensing
