Juniper SRX345-SYS-JB-2AC Firewall

Juniper SRX345-SYS-JB-2AC Firewall

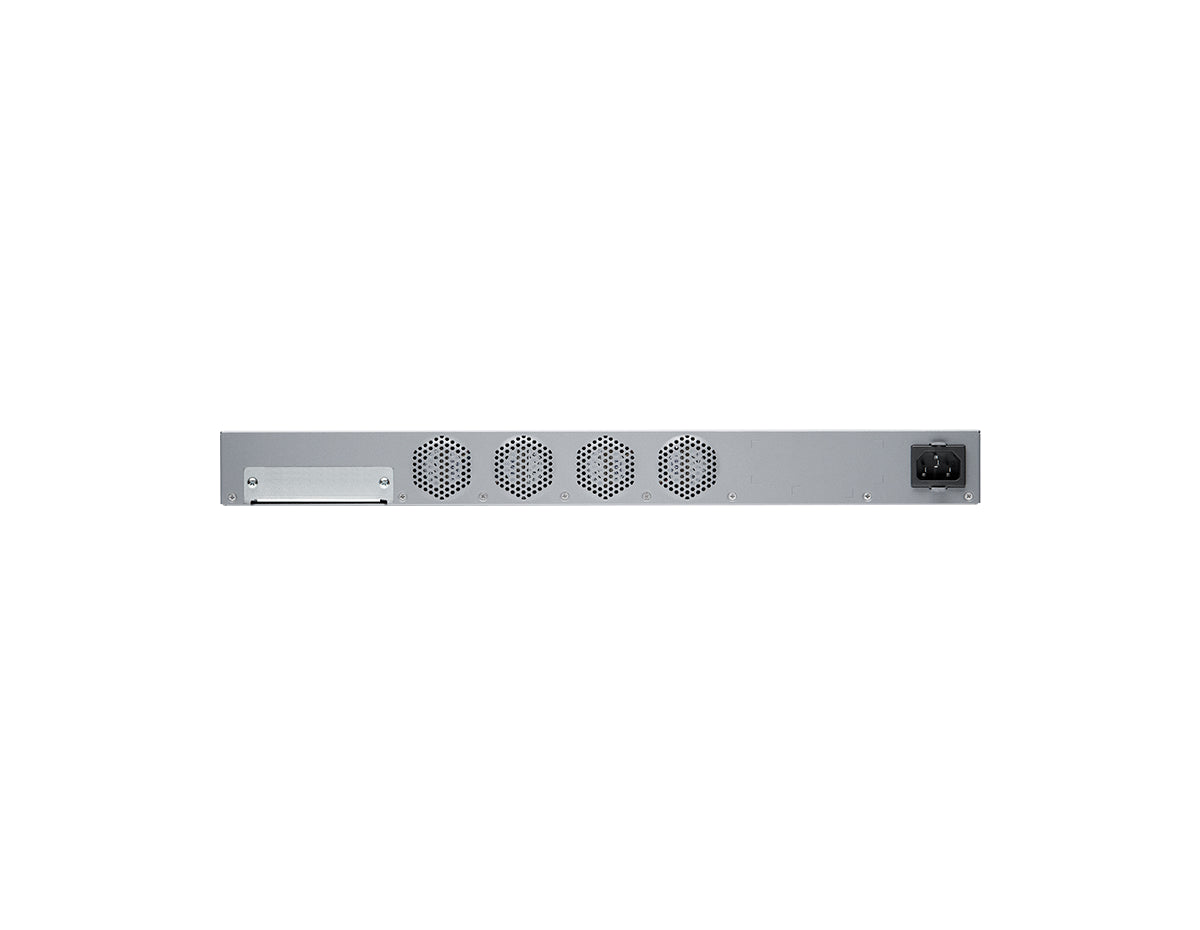

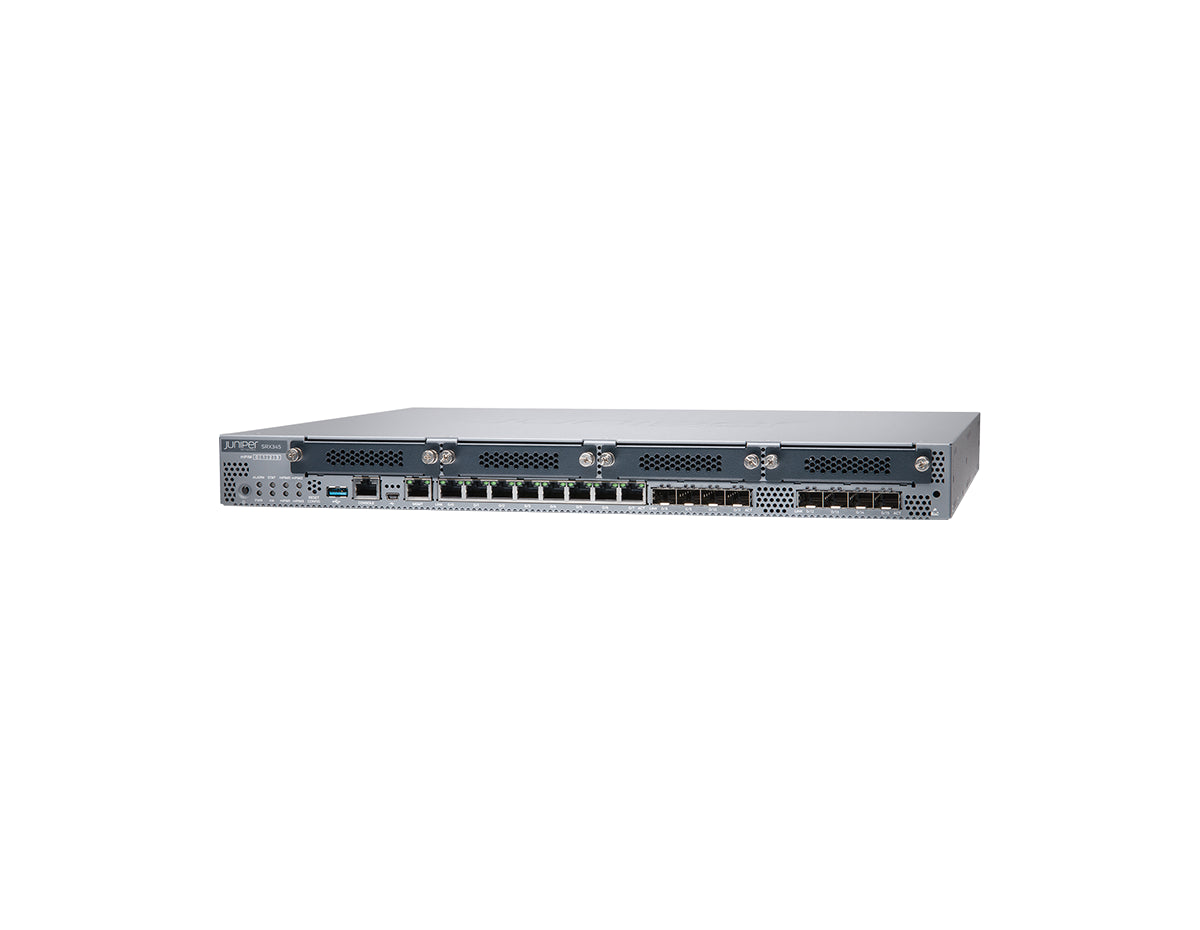

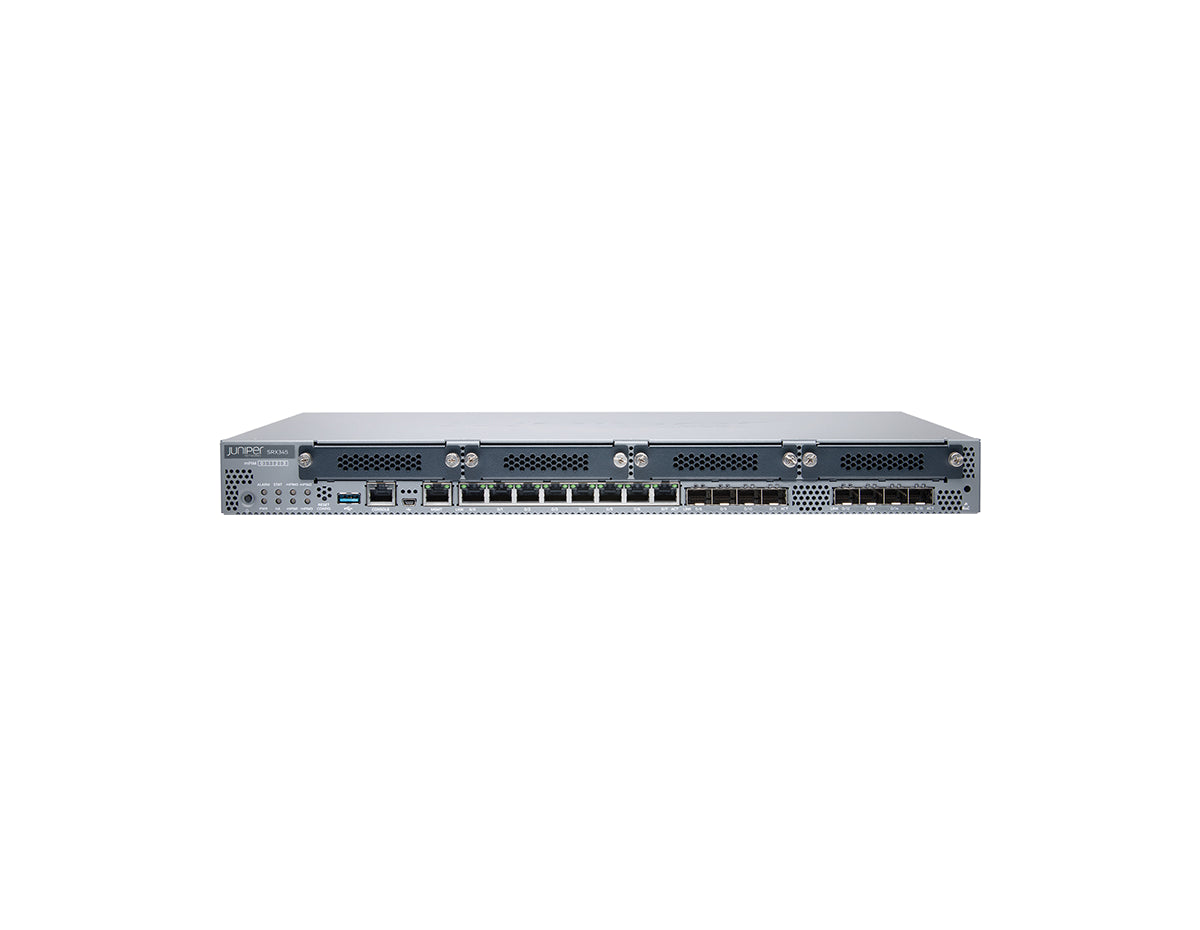

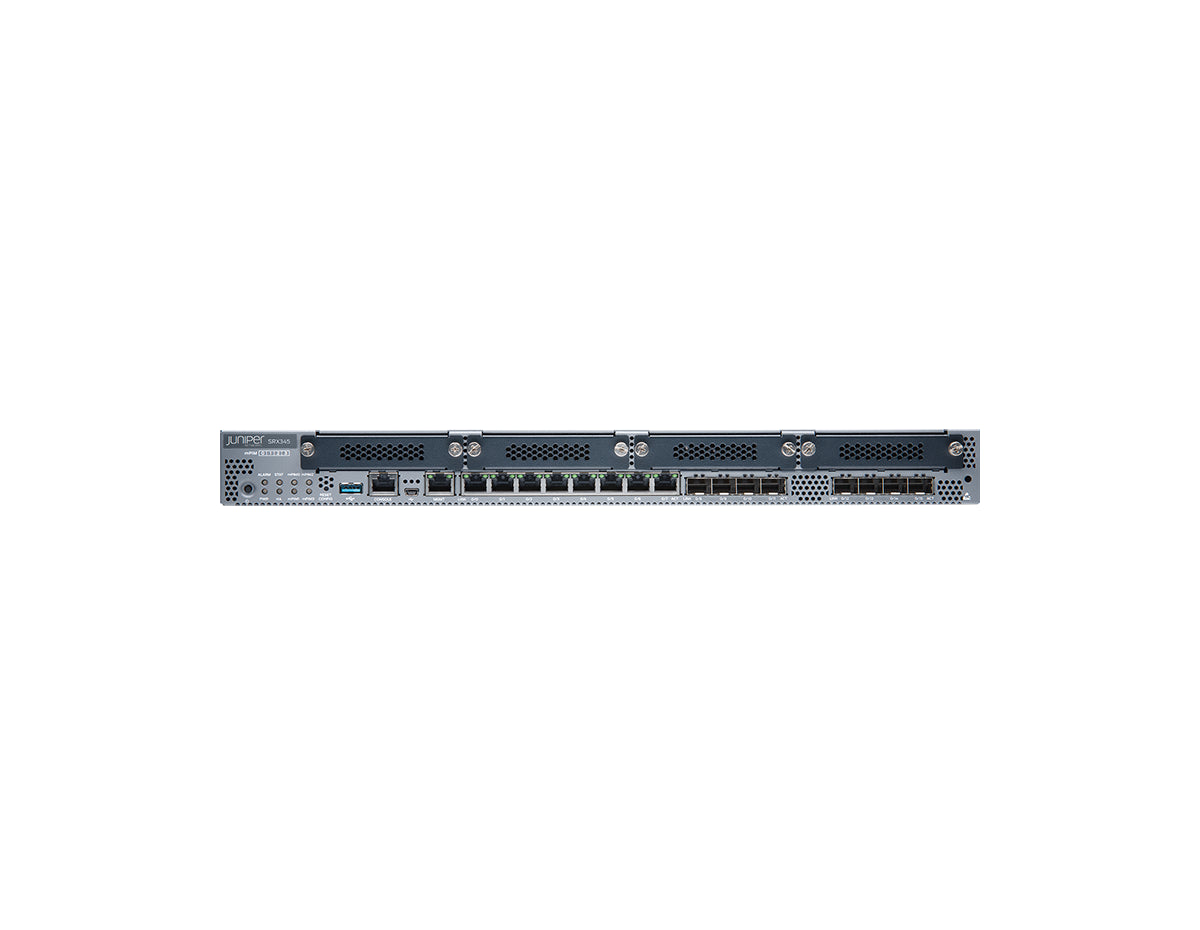

Juniper SRX345-SYS-JB-2AC is a 1U branch firewall and services gateway designed for midsize to large distributed enterprise offices. This bundle includes SRX345 hardware with 16 Gigabit Ethernet interfaces, four MPIM expansion slots, 4 GB RAM, 8 GB flash, rack mount kit, and dual internal AC power supplies. It ships with Junos Software Base, delivering firewall, NAT, IPsec VPN, routing, MPLS, and switching in a consolidated platform for secure branch connectivity.

• Performance: supports up to 5 Gbps firewall throughput, 500 Mbps IPS throughput, and up to 800 Mbps IPsec VPN throughput
• Flexible branch connectivity: combines 8 x RJ-45 ports, 8 x SFP ports, 4 expansion slots, and dedicated management and console interfaces
• Resilient hardware design: includes dual internal AC power supplies, front-to-back airflow, 1U rack-mount form factor, and support for 512,000 concurrent sessions

Properties	Juniper SRX345-SYS-JB-2AC Firewall
Description	SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, dual internal AC power supplies, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching)
Product Family	SRX300 LINE OF FIREWALLS
Product Type	Firewall
SRX300 Highlights	The SRX300 line of services gateways delivers next-generation networking and security for cloud-enabled enterprise networks. It helps organizations simplify branch connectivity, improve operational efficiency, and add scalable security, routing, switching, and WAN flexibility in a cost-effective platform.
SRX345	Best suited for midsize to large distributed enterprise branch offices, the SRX345 consolidates security, routing, switching, and WAN connectivity in a 1U form factor. The platform supports up to 5 Gbps firewall throughput and up to 800 Mbps IPsec VPN throughput in a consolidated branch firewall and networking solution.
Performance	• Up to 5 Gbps firewall throughput • Up to 500 Mbps IPS throughput • Up to 800 Mbps IPsec VPN throughput
Branch deployment	• Designed for midsize to large branch offices • 1U rack-mountable form factor • Rack mount kit included
Connectivity	• 16 x 1GbE onboard ports • 8 x 1000Base-T RJ-45 ports • 8 x 1000Base-X SFP ports • 4 x expansion slots for WAN modules
Management and access	• 1 x management RJ-45 port • 1 x console RJ-45 port and 1 x mini-USB • 1 x USB Type-A port • CLI, SSH, Telnet, SNMP, and HTTP management support
Capacity and scale	• Maximum concurrent sessions: 512,000 • Connection rate: 20,000 connections per second • Maximum security policies: 4,000 • Maximum VPN tunnels: 2,048
Power and cooling	• Dual internal power supplies installed • Maximum supported internal power supplies: 2 • Front-to-back airflow • Operational power consumption: 122 W
Junos Software Base	• Includes Firewall, NAT, IPSec, Routing, MPLS, and Switching • Runs on JUNOS • Supports advanced branch connectivity and security services

Specifications	Juniper SRX345-SYS-JB-2AC Firewall
General
Device Type	Security appliance
Height (Rack Units)	1U
Form Factor	Rack-mountable
Dimensions (W x D x H)	17.4 x 14.6 x 1.7 in
Processor / Memory / Storage
RAM	4 GB
Flash Memory	8 GB
Hard Drive	SSD
Networking
Ports Qty	16
Connectivity Technology	Wired
Airflow Direction	Front to back airflow
Interfaces	8 x 1000Base-T RJ-45 | 8 x 1000Base-X SFP | 1 x console RJ-45 | 1 x mini-USB | 1 x USB Type-A | 1 x management RJ-45
Expansion Slots	4 (total) / 4 (free) x expansion slot
Remote Management Protocol	SNMP, Telnet, HTTP, SSH, CLI
Performance
Firewall throughput (64-byte packet size)	700 Kpps
Firewall throughput (IMIX)	2 Gbps
Firewall throughput (1518-byte packet size)	5 Gbps
VPN throughput (IPSec)	300 Mbps
VPN throughput (1400-byte packet size)	800 Mbps
IPS throughput	500 Mbps
Connection rate	20,000 connections per second
Capacity
IPv4 routing table entries	2,000,000
IPv6 routing table entries	1,000,000
Concurrent sessions	512,000
Security policies	4,000
Maximum NAT rules	2,000
MAC addresses	15,000
IPSec VPN tunnels	2,048
GRE tunnels	1,024
Security zones	64
Virtual routers	128
Virtual interfaces (VLANs)	3000
Maximum number of users	200
Power and Environmental
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Power Consumption Operational	122 Watt
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
Miscellaneous
Included Accessories	Rack mount kit
MTBF	240,000 hours
Compliant Standards	FCC Class A certified, RoHS2
Software
OS Provided	JUNOS
Software Included	Junos Software Base
